Husqvarna 124 R (2010-08) Brushcutter/Clearing Saw

Model: 124 R (2010-08)

Save Part Not Listed?
product name

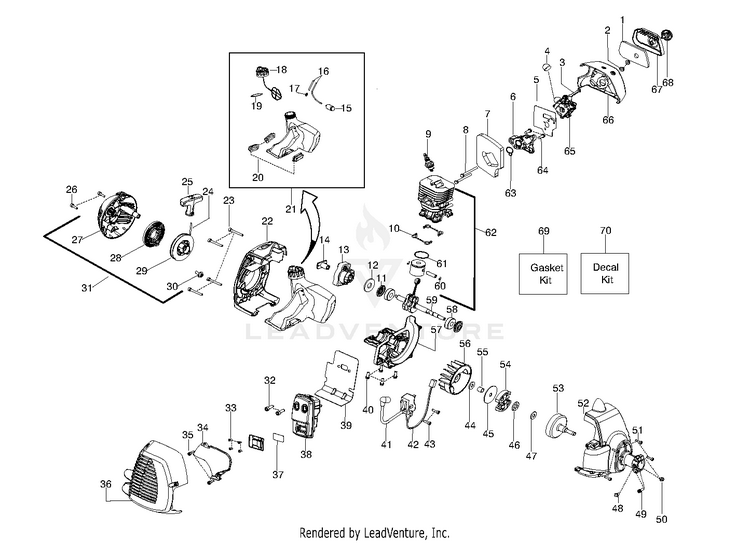

ENGINE

...
...
20
ISOLATOR FUEL TANK HUS-530059780
...
58
BEARING RADIAL BALL (6201) HUS-545013401
...
5
KIT GASKET CARB 28CC HUS-545008086
...
23
SCREW HUS-530016448
...
42
ASSY MODULE LEAD WIRE HUS-530039227
...
60
WRIST PIN RET. PISTON PIN RETAINER HUS-530015162
...
40
SCREW-M5-0.8 X 25MM(TAP) HUS-530015897
...
53
ASSY CLUTCH DRUM HUS-587126401
...
67
COVER-AIR BOX HUS-530057846
...
64
SCREW-M5-0.8 X 25MM(TAP) HUS-530015897
...
37
KIT SPARK ARRESTOR SCREEN HUS-545030501
...
46
BEARING THRUST HUS-545173401
...
52
ASSY FAN HOUSING HVA 1" 2010-72N AND LOWER, SEE SERVICE REFERENCE HUS-545205201
...
30
SCREW HUS-530016468
...
34
SHIELD HEAT HEAT SHIELD HUS-530150440
...
8
BOLT CARB ADAPTOR HUS-530016400
...
55
SPACER FLYWHEEL HUS-530057852
...
59
ASSY CRANKSHAFT FORGED ROD HUS-545220101
...
48
SCREW-10-14 X 1/2 PLASTITE 2010-72N AND LOWER, SEE SERVICE REFERENCE HUS-530015805
...
6
CARB ADAPTOR HUS-530035596
...
21
KIT FUEL TANK HVA HUS-545180870
...
38
KIT MUFFLER NON/CAT HUS-574031402
...
47
WASHER THRUST HUS-530016420
...
54
ASSEMBLY CLUTCH HUS-530055122
...
22
REAR SHROUD ORANGE HUS-576153201
...
11
KIT GASKET 28CC HUS-545008084
...
65
KIT CARB HUS-545081848
...
63
KIT GASKET 28CC HUS-545008084
...
32
BOLT MUFFLER HUS-530058982
...
18
FUEL CAP ASSY HUS-578931503
...
3
CHOKE LEVER HUS-530057844
...
10
KIT GASKET 28CC HUS-545008084
...
36
KIT MUFFLER GUARD HVA MUFFLER GUARD HUS-576215001
...
57
CRANKCASE CAST 128 HUS-577929502
...
25
STARTER HANDLE GRAY HUS-530150318
...
12
WASHER FLAT HUS-530015828
...
33
SCREW 6-19X.437 HUS-545227101
...
17
FUEL LINE FITTING HUS-530023877
...
62
KIT PISTON & CYLINDER HUS-545008082
...
66
AIRBOX HVA 128 HUSKY GRAY HUS-576459001
...
2
NUT HUS-530016101
...
44
WASHER CLUTCH HUS-530016463
...
61
RING PISTON HUS-575227901
...
26
SCREW M5-0.8X30MM HUS-530016426
...
45
WASHER-CLUTCH HUS-530094189
...
15
FUEL PICK-UP ASSY HUS-530095646
...
56
FLYWHEEL HUS-530039242
...
70
HUS-000000000
...
68
KNOB ASSY AIRBOX COVER HUS-530059796
...
69
KIT GASKET 28CC HUS-545008084
...
29
KIT STARTER PULLEY HUS-545029701
...
13
ASSY STARTER CUP HUS-545102303
...
41
IGNITION MODULE MBU-7 HUS-545046701
...
7
KIT GASKET 28CC HUS-545008084
...
24
KIT ROPE HUS-545029901
...
31
ASSY-STARTER HSG. HUS-545106301
...
16
KIT-LINE(FUEL) HUS-530069599
...
9
BPMR6A NGK SPARK PLUG RCJ-8Y HUS-503235112
...
27
STARTER HOUSING HUS-545029603
...
50
LOCKNUT-HEX 10-24 HUS-530015768
...
1
FILTER AIRBOX HUS-530150253
...
49
SCREW-10-24 X 1" (UNC) 2010-72N AND LOWER, SEE SERVICE REFERENCE HUS-530015774
...
51
SCREW M4 X .70 TT 16MM HUS-530016456
...
43
SCREW M4 X .70 TT 16MM HUS-530016456
...
35
SCREW M4 X 1.75 PT 16MM HUS-530016449
...
19
KIT GASKET 28CC HUS-545008084
...
28
SPRING STARTER HUS-545008015
...
4
PURGE BULB ZAMA HUS-530058709
...
39
KIT GASKET 28CC HUS-545008084
...
14
COUPLING-STARTER HUS-545099201

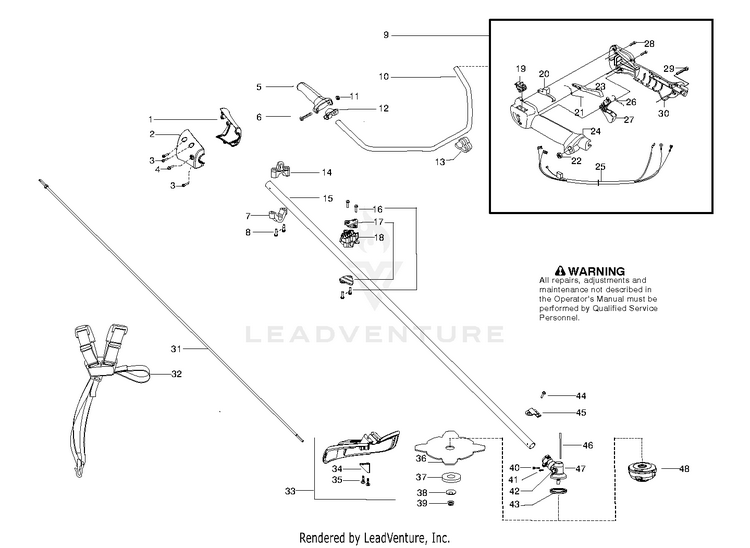

SHAFT & HANDLE

...
...
36
HUS 10" GRASSBLADE 255-4T 1" HUS-596278001
...
42
PLUG GREASE 9MM HUS-575724601
...
40
SCREW - CARB. ADAPTOR HUS-530016014
...
33
KIT COBI SHIELD HUS-545030901
...
6
SCREW HUS-503200245
...
26
SPRING HUS-537174201
...
16
SCREW HUS-530015814
...
10
HANDLE HUS-502199503
...
35
SCREW HUS-530015814
...
5
HANDLE HUS-537172802
...
12
BRACKET HUS-537172901
...
13
GROMMET HUS-502211201
...
15
NEEDS DESCRIPTION HUS-575776101
...
4
SCREW-10-14 X 1/2 PLASTITE 2010-72N AND LOWER, SEE SERVICE REFERENCE HUS-530015805
...
11
NUT HUS-731231401
...
29
SCREW IHSCFM HUS-503200782
...
7
CLAMP HARNESS LOWER LOWER HARNESS CLAMP HUS-545056601
...
38
SUPPORT FLANGE HUS-537285601
...
22
NUT HUS-503221013
...
48
TRIMMER HEAD T25 T25 HUS-537338310
...
45
BRACKET SHIELD STRAIGHT SHAFT HUS-530057554
...
1
NOSE CONE B/H LH HVA 25.4MM 2010-72N AND LOWER, SEE SERVICE REFERENCE HUS-574810701
...
3
SCREW M4 X 1.75 PT 16MM 2010-72N AND LOWER, SEE SERVICE REFERENCE HUS-530016449
...
31
FLEXSHAFT 57" HUS-545007507
...
21
SPRING HUS-537174301
...
34
Limiter - Line HUS-530052286
...
17
CLAMP BRACKET HUS-530058563
...
30
HANDLE RH HUS-537160301
...
14
CLAMP HARNESS UPPER UPPER HARNESS CLAMP HUS-545113301
...
44
SCREW 1/4-20 X 7/8 (TAP HUS-530015771
...
18
CLAMP HUS-545058501
...
37
SUPPORTING CUP HUS-503890101
...
39
GEARHEAD NUT - BRUSHCUTTER HUS-503856301
...
32
HARNESS DUO HUS-537216301
...
19
STOP BUTTON HUS-537419001
...
9
ASSY THROTTLE HOUSING HUS-545125501
...
23
THROTTLE LOCKOUT HUS-506495101
...
24
HANDLE LH HUS-537160203
...
20
STARTER THROTTLE LOCK HUS-537160703
...
28
SCREW HUS-503216618
...
8
SCREW HUS-530015940
...
25
ASSY CABLE WIRE HARNESS HUS-545125801
...
46
LOCKING PIN HUS-502285901
...
2
CONE 2010-72N AND LOWER, SEE SERVICE REFERENCE HUS-574810301
...
47
ASSY GEARBOX HUS-530096295
...
41
SCREW HUS-545003902
...
27
THROTTLE CONTROL HUS-506495001
...
43
DRIVE DISC HUS-537234901
