product name

Husqvarna 124 L (USA, Canada) (2006-05) Trimmer

Model: 124 L (USA, Canada) (2006-05)

Save
 Part Not Listed?Part Not Listed?
product name

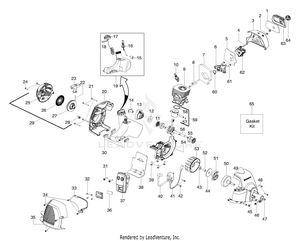

Engine, Fuel Tank & Ignition

...
...
1
FILTER AIRBOX HUS-530150253
...
2
NUT HUS-530016101
...
3
AIRBOX HVA 128 HUSKY GRAY HUS-576459001
...
4
CHOKE LEVER HUS-530057844
...
5
KIT GASKET CARB (Incl 7,60) HUS-545050402
...
6
CARB ADAPTOR HUS-530035596
...
7
KIT GASKET 28CC HUS-545008084
...
8
BOLT CARB ADAPTOR HUS-530016400
...
9
KIT CYL PISTON & CRANKCASE HUS-545003378
...
10
BPMR6A NGK SPARK PLUG (RCJ-8Y) HUS-503235112
...
11
KIT SEAL CRANKSHAFT HUS-545050403
...
12
WASHER FLAT HUS-530015828
...
13
ASSY STARTER CUP HUS-545102303
...
14
COUPLING-STARTER HUS-545099201
...
15
FUEL PICK-UP ASSY HUS-530095646
...
16
KIT FUEL LINE HUS-545081897
...
17
FUEL CAP ASSY (Incl. 18) HUS-578931503
...
18
O RING NITRILE HUS-530019293
...
19
%FUEL TANK ASSY (Incl. 15,16,17,18) HUS-545105101
...
20
REAR SHROUD ORANGE HUS-576153201
...
21
SCREW HUS-530016448
...
22
KIT ROPE HUS-545029901
...
23
STARTER HANDLE GRAY HUS-530150318
...
24
SCREW M5-0.8X30MM HUS-530016426
...
25
STARTER HOUSING HUS-545029603
...
26
SPRING STARTER HUS-545008015
...
27
KIT STARTER PULLEY HUS-545029701
...
28
SCREW HUS-530016468
...
29
ASSY-STARTER HSG. (Incl. 22,23,25,26,27,28) HUS-545106301
...
30
ISOLATOR FUEL TANK HUS-530059780
...
31
BOLT MUFFLER HUS-530058982
...
32
SCREW-10-16 X 1/2 HI-LO HUS-530015496
...
33
SHIELD HEAT HUS-530150440
...
34
SCREW M4 X 1.75 PT 16MM HUS-530016449
...
35
KIT MUFFLER GUARD HVA HUS-576215001
...
36
KIT SPARK ARRESTOR SCREEN (Incl. 32) HUS-545030501
...
37
KIT MUFFLER W/CATALYST HUS-574031502
...
38
GASKET PAPER METAL HUS-530057848
...
39
SCREW-M5-0.8 X 25MM(TAP) HUS-530015897
...
40
IGNITION MODULE MBU-7 HUS-545046701
...
41
ASSY MODULE LEAD WIRE HUS-530039227
...
42
SCREW M4 X .70 TT 16MM HUS-530016456
...
43
WASHER HUS-530016030
...
44
WASHER-CLUTCH HUS-530094189
...
45
SCREW HUS-530016469
...
46
SCREW HUS-530016470
...
47
NUT HEX LOCK 10-24 HUS-530403094
...
48
SCREW M4 X .70 TT 16MM HUS-530016456
...
49
FAN HSG ASSY HUS-545017501
...
50
ASSY-CLUTCH DRUM HUS-545106801
...
51
KIT CLUTCH ASSY HUS-525472901
...
52
SPACER FLYWHEEL HUS-530057852
...
53
FLYWHEEL HUS-530039242
...
54
CRANKCASE CASTING HUS-545054601
...
55
BEARING RADIAL BALL (6201) HUS-545013401
...
56
KIT CRANKSHAFT ASSY HUS-545030001
...
57
WRIST PIN RET. HUS-530015162
...
58
RING PISTON HUS-575227901
...
59
KIT PISTON 28CC TRIMMER (Incl. 57,58) HUS-545030301
...
60
KIT GASKET 28CC (adaptor seal) HUS-545008084
...
61
SCREW-M5-0.8 X 25MM(TAP) HUS-530015897
...
62
CARBURETOR (Incl. 4,5) HUS-545006060
...
63
COVER-AIR BOX HUS-530057846
...
64
KNOB ASSY AIRBOX COVER HUS-530059796
...
65
KIT GASKET 28CC (Incl. 5,7,11,18,38,60) HUS-545008084
...
xx
PURGE BULB ZAMA Not Shown HUS-530058709

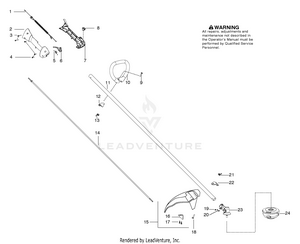

Handle, Shaft & Cutting Head

...
...
1
ASSY-CABLE WIRE HARNESS HUS-545125301
...
2
HOUSING-THROTTLE (RH) HUS-545062002
...
3
SCREW HUS-530016448
...
4
SCREW M4 X 1.75 PT 16MM HUS-530016449
...
5
SPRING TRIGGER HUS-530016454
...
6
TRIGGER THROTTLE HUS-545066001
...
7
HSG THROTTLE LH HUS-545067001
...
8
KIT SWITCH HUS-545049301
...
9
BOLT, TYPE 2 HUS-530015820
...
10
HANDLE ASSIST HUS-530150076
...
11
KIT D'SHAFT HUS-545081011
...
12
CLAMP ASSIST HANDLE HUS-530059185
...
13
NUT-"D" HANDLE HUS-530091373
...
14
FLEXSHAFT 57 HUS-530096286
...
15
KIT-SHIELD (Incl. 16,17) HUS-545081704
...
16
LINE LIMITER 17" HUS-530052285
...
17
SCREW HUS-530015814
...
18
BOLT, TYPE 2 HUS-530015820
...
19
SCREW - CARB. ADAPTOR HUS-530016014
...
20
SCREW 8-16 X 9/16 (PLAS HUS-530015775
...
21
NUT-"D" HANDLE HUS-530091373
...
22
BRACKET SHIELD STRAIGHT SHAFT HUS-530057554
...
23
GEARBOX 1 HUS-530096099
...
24
T25 HVA UNIVERSAL IN CLAM HUS-966674401
...
xx
OPERATOR´S MANUAL GAS TRIMMER Not Shown HUS-545097751
...
xx
DECAL WARNING Not Shown HUS-545059101
...
...
...
