Husqvarna 124 L (2007-04) Trimmer

Model: 124 L (2007-04)

Back To Assemblies

Save Part Not Listed?
product name

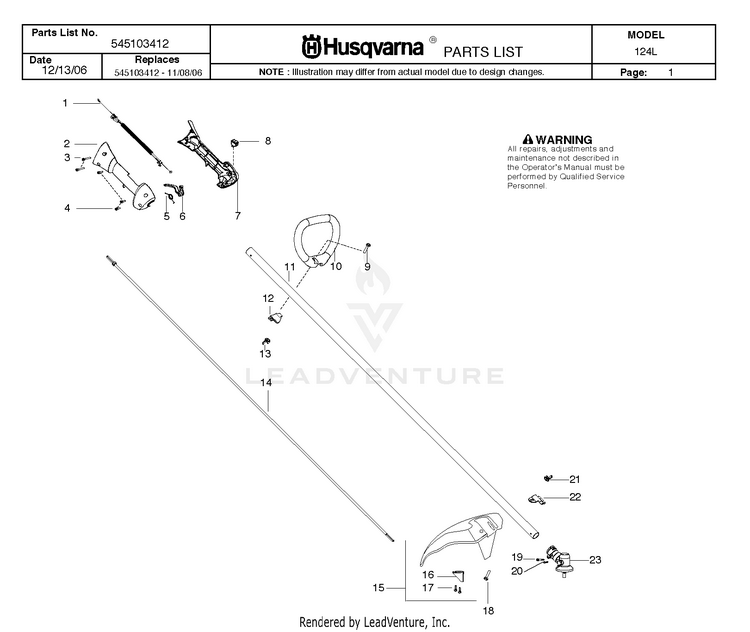

Handle & Shaft Assembly

...
...
2
HOUSING-THROTTLE (RH) RH HUS-545062002
...
3
SCREW HUS-530016448
...
4
SCREW M4 X 1.75 PT 16MM HUS-530016449
...
5
SPRING TRIGGER HUS-530016454
...
6
TRIGGER THROTTLE HUS-545066001
...
7
HSG THROTTLE LH LH HUS-545067001
...
8
KIT SWITCH HUS-545049301
...
9
BOLT, TYPE 2 HUS-530015820
...
10
HANDLE ASSIST HUS-530150076
...
11
KIT D'SHAFT HUS-545081011
...
12
CLAMP ASSIST HANDLE HUS-530059185
...
13
NUT-"D" HANDLE HUS-530091373
...
15
KIT-SHIELD Incl. 16,17 HUS-545081704
...
16
LINE LIMITER 17" HUS-530052285
...
17
SCREW HUS-530015814
...
18
BOLT, TYPE 2 HUS-530015820
...
19
SCREW - CARB. ADAPTOR HUS-530016014
...
20
SCREW 8-16 X 9/16 (PLAS HUS-530015775
...
21
NUT-"D" HANDLE HUS-530091373
...
22
BRACKET SHIELD STRAIGHT SHAFT HUS-530057554
...
23
GEARBOX 1 HUS-530096099
