Husqvarna 124 L (2007-04) Trimmer

Model: 124 L (2007-04)

Save
 Part Not Listed?Part Not Listed?
product name

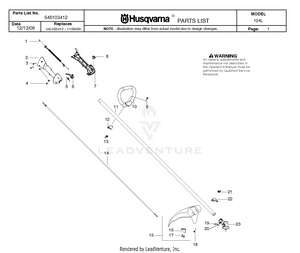

Handle & Shaft Assembly

...
...
2
HOUSING-THROTTLE (RH) RH HUS-545062002
...
3
SCREW HUS-530016448
...
4
SCREW M4 X 1.75 PT 16MM HUS-530016449
...
5
SPRING TRIGGER HUS-530016454
...
6
TRIGGER THROTTLE HUS-545066001
...
7
HSG THROTTLE LH LH HUS-545067001
...
8
KIT SWITCH HUS-545049301
...
9
BOLT, TYPE 2 HUS-530015820
...
10
HANDLE ASSIST HUS-530150076
...
11
KIT D'SHAFT HUS-545081011
...
12
CLAMP ASSIST HANDLE HUS-530059185
...
13
NUT-"D" HANDLE HUS-530091373
...
15
KIT-SHIELD Incl. 16,17 HUS-545081704
...
16
LINE LIMITER 17" HUS-530052285
...
17
SCREW HUS-530015814
...
18
BOLT, TYPE 2 HUS-530015820
...
19
SCREW - CARB. ADAPTOR HUS-530016014
...
20
SCREW 8-16 X 9/16 (PLAS HUS-530015775
...
21
NUT-"D" HANDLE HUS-530091373
...
22
BRACKET SHIELD STRAIGHT SHAFT HUS-530057554
...
23
GEARBOX 1 HUS-530096099

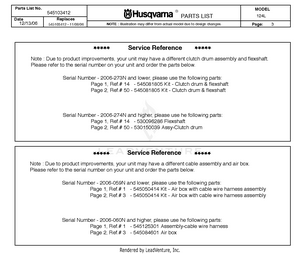

Service Reference

...

No Parts Available for this Schematic

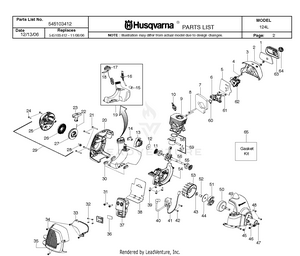

Starter & Engine Assembly

...
...
1
FILTER AIRBOX HUS-530150253
...
2
NUT HUS-530016101
...
4
CHOKE LEVER HUS-530057844
...
5
KIT GASKET CARB Incl 7,60 HUS-545050402
...
6
CARB ADAPTOR HUS-530035596
...
7
KIT GASKET 28CC foam HUS-545008084
...
8
BOLT CARB ADAPTOR HUS-530016400
...
9
KIT CYL PISTON & CRANKCASE HUS-545003378
...
10
BPMR6A NGK SPARK PLUG RCJ-8Y HUS-503235112
...
11
KIT SEAL CRANKSHAFT HUS-545050403
...
12
WASHER FLAT HUS-530015828
...
13
ASSY STARTER CUP HUS-545102303
...
14
COUPLING-STARTER HUS-545099201
...
15
FUEL PICK-UP ASSY HUS-530095646
...
16
KIT FUEL LINE HUS-545081897
...
17
FUEL CAP ASSY Incl. 18 HUS-578931503
...
18
O RING NITRILE HUS-530019293
...
19
ASSY FUEL TANK FL Incl. 15,16,17,18 New Part Number For This IPL HUS-545105102
...
20
REAR SHROUD ORANGE HUS-576153201
...
21
SCREW HUS-530016448
...
22
KIT ROPE HUS-545029901
...
23
STARTER HANDLE GRAY HUS-530150318
...
24
SCREW M5-0.8X30MM HUS-530016426
...
25
STARTER HOUSING HUS-545029603
...
26
SPRING STARTER HUS-545008015
...
27
KIT STARTER PULLEY HUS-545029701
...
28
SCREW HUS-530016468
...
29
ASSY-STARTER HSG. Incl. 22,23,25,26,27,28 HUS-545106301
...
30
ISOLATOR FUEL TANK HUS-530059780
...
31
BOLT MUFFLER HUS-530058982
...
32
SCREW-10-16 X 1/2 HI-LO HUS-530015496
...
33
SHIELD HEAT HUS-530150440
...
34
SCREW M4 X 1.75 PT 16MM HUS-530016449
...
35
KIT MUFFLER GUARD HVA HUS-576215001
...
36
KIT SPARK ARRESTOR SCREEN Incl. 32 HUS-545030501
...
37
KIT MUFFLER W/CATALYST HUS-574031502
...
38
GASKET PAPER METAL HUS-530057848
...
39
SCREW-M5-0.8 X 25MM(TAP) HUS-530015897
...
40
IGNITION MODULE MBU-7 HUS-545046701
...
41
ASSY MODULE LEAD WIRE HUS-530039227
...
42
SCREW M4 X .70 TT 16MM HUS-530016456
...
43
WASHER HUS-530016030
...
44
WASHER-CLUTCH HUS-530094189
...
45
SCREW HUS-530016469
...
46
SCREW HUS-530016470
...
47
NUT HEX LOCK 10-24 HUS-530403094
...
48
SCREW M4 X .70 TT 16MM HUS-530016456
...
49
FAN HSG ASSY HUS-545017501
...
51
KIT CLUTCH ASSY HUS-525472901
...
52
SPACER FLYWHEEL HUS-530057852
...
53
FLYWHEEL HUS-530039242
...
54
CRANKCASE CASTING HUS-545054601
...
55
BEARING RADIAL BALL (6201) HUS-545013401
...
56
KIT CRANKSHAFT ASSY HUS-545030001
...
57
WRIST PIN RET. HUS-530015162
...
58
RING PISTON HUS-575227901
...
59
KIT PISTON 28CC TRIMMER Incl. 57,58 HUS-545030301
...
60
KIT GASKET 28CC adaptor seal HUS-545008084
...
61
SCREW-M5-0.8 X 25MM(TAP) HUS-530015897
...
62
CARBURETOR Incl. 4,5 HUS-545006060
...
63
COVER-AIR BOX HUS-530057846
...
64
KNOB ASSY AIRBOX COVER HUS-530059796
...
65
KIT GASKET 28CC Incl. 5,7,11,18,38,60 HUS-545008084
...
xx
PURGE BULB ZAMA Not Shown HUS-530058709
...
...
...
