Husqvarna 124 C (USA, Canada) (2009-10) Trimmer

Model: 124 C (USA, Canada) (2009-10)

Save
 Don't See Your Part Listed?
product name

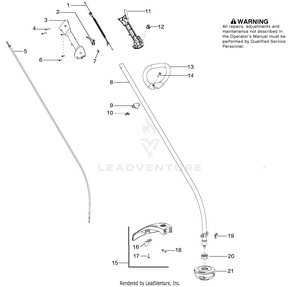

Drive

...
...
2
TRIGGER THROTTLE HUS-545066001
...
3
HOUSING-THROTTLE (RH) HUS-545062002
...
4
SCREW HUS-530016448
...
6
SCREW M4 X 1.75 PT 16MM HUS-530016449
...
7
SPRING TRIGGER HUS-530016454
...
8
DRIVESHAFT KIT HUS-545180806
...
9
CLAMP ASSIST HANDLE HUS-530059185
...
10
NUT-"D" HANDLE HUS-530091373
...
11
HSG THROTTLE LH HUS-545067001
...
12
KIT SWITCH HUS-545049301
...
13
HANDLE ASSIST HUS-530150076
...
14
BOLT, TYPE 2 HUS-530015820
...
15
TRIMMER GUARD 128C (Incl. 16,17,18,19) HUS-545031101
...
16
KIT - LIMITER - LINE HUS-545081862
...
17
SCREW HUS-530015814
...
18
BOLT, TYPE 2 HUS-530015820
...
19
NUT-"D" HANDLE HUS-530091373
...
20
DUST CUP HUS-545017404
...
21
Assy-T25 Cutting Head HUS-537263701
...
xx
Manual Not Shown HUS-115374427
...
xx
DECAL WARN AUST CS Not Shown HUS-545003073

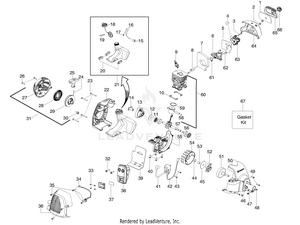

Engine

...
...
1
FILTER AIRBOX HUS-530150253
...
2
NUT HUS-530016101
...
3
CHOKE LEVER HUS-530057844
...
4
PURGE BULB ZAMA HUS-530058709
...
5
KIT GASKET CARB 28CC (Incl 7,63) HUS-545008086
...
6
CARB ADAPTOR HUS-530035596
...
7
KIT GASKET 28CC HUS-545008084
...
8
BOLT CARB ADAPTOR HUS-530016400
...
9
Plug - Spark (RCJ-6Y) HUS-952030249
...
10
KIT GASKET 28CC HUS-545008084
...
11
KIT GASKET 28CC HUS-545008084
...
15
FUEL PICK-UP ASSY HUS-530095646
...
16
KIT-LINE(FUEL) (Incl. 17) HUS-530069599
...
17
FUEL LINE FITTING HUS-530023877
...
18
FUEL CAP ASSY (Incl. 19) HUS-578931503
...
19
KIT GASKET 28CC HUS-545008084
...
20
ISOLATOR FUEL TANK HUS-530059780
...
21
KIT FUEL TANK HVA (Incl. 15,16,17,18,19,20) HUS-545180870
...
22
REAR SHROUD ORANGE HUS-576153201
...
23
SCREW HUS-530016448
...
24
KIT ROPE HUS-545029901
...
25
STARTER HANDLE GRAY HUS-530150318
...
26
SCREW M5-0.8X30MM HUS-530016426
...
27
STARTER HOUSING HUS-545029603
...
28
SPRING STARTER HUS-545008015
...
29
KIT STARTER PULLEY HUS-545029701
...
30
SCREW HUS-530016468
...
31
ASSY-STARTER HSG. (Incl. 24,25,27,28,29,30) HUS-545106301
...
32
BOLT MUFFLER HUS-530058982
...
33
SCREW-6-19X5/16PLAST PA HUS-530015241
...
34
SHIELD HEAT HUS-530150440
...
35
SCREW M4 X 1.75 PT 16MM HUS-530016449
...
36
KIT MUFFLER GUARD HVA HUS-576215001
...
37
KIT SPARK ARRESTOR SCREEN (Incl. 33) HUS-545030501
...
38
KIT MUFFLER W/CATALYST (Incl. 32,33,37,39) HUS-574031502
...
39
KIT GASKET 28CC HUS-545008084
...
40
SCREW-M5-0.8 X 25MM(TAP) HUS-530015897
...
41
IGNITION MODULE MBU-7 HUS-545046701
...
42
ASSY MODULE LEAD WIRE HUS-530039227
...
43
SCREW M4 X .70 TT 16MM HUS-530016456
...
44
WASHER CLUTCH HUS-530016463
...
45
WASHER-CLUTCH HUS-530094189
...
46
SCREW HUS-530016469
...
47
SCREW HUS-530016470
...
48
LOCKNUT-HEX 10-24 HUS-530015768
...
49
SCREW M4 X .70 TT 16MM HUS-530016456
...
50
FAN HSG ASSY HUS-545017501
...
52
KIT CLUTCH ASSY HUS-525472901
...
53
SPACER FLYWHEEL HUS-530057852
...
54
FLYWHEEL HUS-530039242
...
56
BEARING RADIAL BALL (6201) HUS-545013401
...
58
WRIST PIN RET. HUS-530015162
...
59
RING PISTON HUS-575227901
...
61
KIT GASKET 28CC HUS-545008084
...
62
SCREW-M5-0.8 X 25MM(TAP) HUS-530015897
...
65
COVER-AIR BOX HUS-530057846
...
66
KNOB ASSY AIRBOX COVER HUS-530059796
...
67
KIT GASKET 28CC (Incl. 5,7,10,11,19,39,61) HUS-545008084

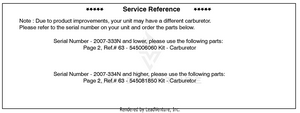

Service Reference (Part A)

...

No Parts Available for this Schematic

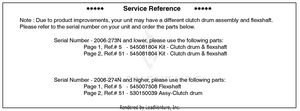

Service Reference (Part B)

...

No Parts Available for this Schematic

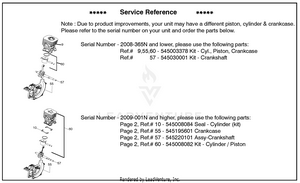

Service Reference (Part C)

...

No Parts Available for this Schematic

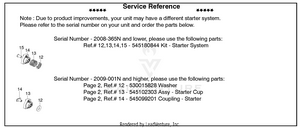

Service Reference (Part D)

...

No Parts Available for this Schematic

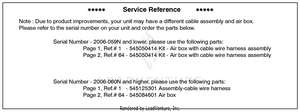

Service Reference (Part E)

...

No Parts Available for this Schematic

...
...
...
...
