Husqvarna 124 C (2008-01) Trimmer

Model: 124 C (2008-01)

Save
 Part Not Listed?Part Not Listed?
product name

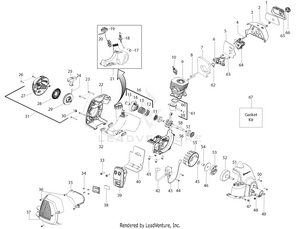

Engine

...
...
1
FILTER AIRBOX HUS-530150253
...
2
NUT HUS-530016101
...
4
CHOKE LEVER HUS-530057844
...
5
KIT GASKET CARB (Incl 7,62) HUS-545050402
...
6
CARB ADAPTOR HUS-530035596
...
7
KIT GASKET 28CC (foam) HUS-545008084
...
8
BOLT CARB ADAPTOR HUS-530016400
...
9
KIT CYL PISTON & CRANKCASE HUS-545003378
...
10
Plug-Spark (RCJ-6Y) HUS-952030249
...
11
KIT SEAL CRANKSHAFT HUS-545050403
...
16
KIT STARTER (Incl. 12,13,14,15) HUS-545180844
...
17
FUEL PICK-UP ASSY HUS-530095646
...
18
KIT FUEL LINE New Part Number For This IPL HUS-545081897
...
19
FUEL CAP ASSY (Incl. 20) HUS-578931503
...
20
O RING NITRILE HUS-530019293
...
21
FUEL TANK ASSY (Incl. 17,18,19,20) New Part Number For This IPL HUS-545105107
...
22
REAR SHROUD ORANGE HUS-576153201
...
23
SCREW HUS-530016448
...
24
KIT ROPE HUS-545029901
...
25
STARTER HANDLE GRAY HUS-530150318
...
26
SCREW M5-0.8X30MM HUS-530016426
...
27
STARTER HOUSING HUS-545029603
...
28
SPRING STARTER HUS-545008015
...
29
KIT STARTER PULLEY HUS-545029701
...
30
SCREW HUS-530016468
...
31
ASSY-STARTER HSG. (Incl. 24,25,27,28,29,30) HUS-545106301
...
32
ISOLATOR FUEL TANK HUS-530059780
...
33
BOLT MUFFLER HUS-530058982
...
34
SCREW-10-16 X 1/2 HI-LO HUS-530015496
...
35
SHIELD HEAT HUS-530150440
...
36
SCREW M4 X 1.75 PT 16MM HUS-530016449
...
37
KIT MUFFLER GUARD HVA HUS-576215001
...
38
KIT SPARK ARRESTOR SCREEN (Incl. 34) HUS-545030501
...
39
KIT MUFFLER W/CATALYST HUS-574031502
...
40
GASKET PAPER METAL HUS-530057848
...
41
SCREW-M5-0.8 X 25MM(TAP) HUS-530015897
...
42
IGNITION MODULE MBU-7 HUS-545046701
...
43
ASSY MODULE LEAD WIRE HUS-530039227
...
44
SCREW M4 X .70 TT 16MM HUS-530016456
...
45
WASHER CLUTCH New Part Number For This IPL HUS-530016463
...
46
WASHER-CLUTCH HUS-530094189
...
47
SCREW HUS-530016469
...
48
SCREW HUS-530016470
...
49
LOCKNUT-HEX 10-24 HUS-530015768
...
50
SCREW M4 X .70 TT 16MM HUS-530016456
...
51
FAN HSG ASSY HUS-545017501
...
53
KIT CLUTCH ASSY HUS-525472901
...
54
SPACER FLYWHEEL HUS-530057852
...
55
FLYWHEEL HUS-530039242
...
56
CRANKCASE CASTING HUS-545054601
...
57
BEARING RADIAL BALL (6201) HUS-545013401
...
58
KIT CRANKSHAFT ASSY HUS-545030001
...
59
WRIST PIN RET. HUS-530015162
...
60
RING PISTON HUS-575227901
...
61
KIT PISTON 28CC TRIMMER (Incl. 59,60) HUS-545030301
...
62
KIT GASKET 28CC (adaptor seal) HUS-545008084
...
63
SCREW-M5-0.8 X 25MM(TAP) HUS-530015897
...
65
COVER-AIR BOX HUS-530057846
...
66
KNOB ASSY AIRBOX COVER HUS-530059796
...
67
KIT GASKET 28CC (Incl. 5,7,11,20,40,62) HUS-545008084
...
xx
PURGE BULB ZAMA Not Shown HUS-530058709
...
xx
DECAL - 124C RECOIL HOUSING Not Shown HUS-545039105

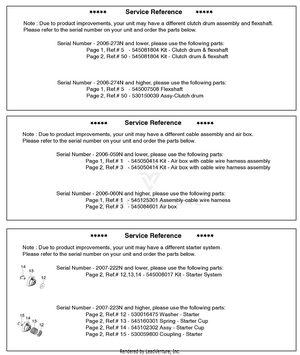

Service Reference (Part A)

...

No Parts Available for this Schematic

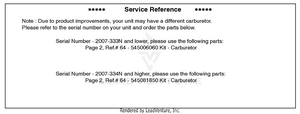

Service Reference (Part B)

...

No Parts Available for this Schematic

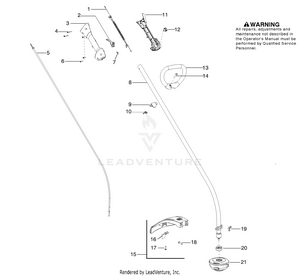

Shaft/Handles

...
...
2
TRIGGER THROTTLE HUS-545066001
...
3
HOUSING-THROTTLE (RH) (RH) HUS-545062002
...
4
SCREW HUS-530016448
...
6
SCREW M4 X 1.75 PT 16MM HUS-530016449
...
7
SPRING TRIGGER HUS-530016454
...
8
DRIVESHAFT KIT New Part Number For This IPL HUS-545180806
...
9
CLAMP ASSIST HANDLE HUS-530059185
...
10
NUT-"D" HANDLE HUS-530091373
...
11
HSG THROTTLE LH (LH) HUS-545067001
...
12
KIT SWITCH HUS-545049301
...
13
HANDLE ASSIST HUS-530150076
...
14
BOLT, TYPE 2 HUS-530015820
...
15
TRIMMER GUARD 128C (Incl. 16,17,18,19) HUS-545031101
...
16
KIT - LIMITER - LINE New Part Number For This IPL HUS-545081862
...
17
SCREW HUS-530015814
...
18
BOLT, TYPE 2 HUS-530015820
...
19
NUT-"D" HANDLE HUS-530091373
...
20
DUST CUP HUS-545017403
...
21
TRIMMER HEAD T25 HUS-537338311
...
xx
MANUAL OPERATORS Not Shown New Part Number For This IPL HUS-545146961
...
xx
DECAL WARNING Not Shown HUS-545059101
...
...
...
