product name

Husqvarna 123 LD Trimmer/Edger

Model: 123 LD

Back To Assemblies

Save Part Not Listed?
product name

SHAFT

...
...
537 24 64-01
TUBE COMP LOWER 525LDX COMPLETE ASSEMBLY HUS-579199501
...
503 71 54-01
BRACKET HUS-503715401
...
537 01 19-01
SHAFT HUS-587411701
...
503 70 80-04
CLAMPING SLEEVE HUS-576282602
...
537 08 30-01
SHAFT UPPER HUS-537083001
...
537 29 47-04
LABEL WARNING HUS-537294704
...
503 20 02-10
SCREW M5 X 10 HUS-503200710
...
725 23 79-51
SCREW HUS-725237951
...
503 79 56-01
DECAL WARNING "NO BLADES" HUS-503795601
...
503 78 52-01
BUSHING HUS-503785202
...
502 20 38-01
HANDLE HUS-502203801
...
503 20 07-25
SCREW HUS-503200725
...
735 58 08-10
WASHER HUS-735580810
...
537 01 16-01
TUBES HUS-587987901
...
503 98 54-01
HOLDER HUS-503985401
...
537 08 27-01
TUBE HUS-537082701

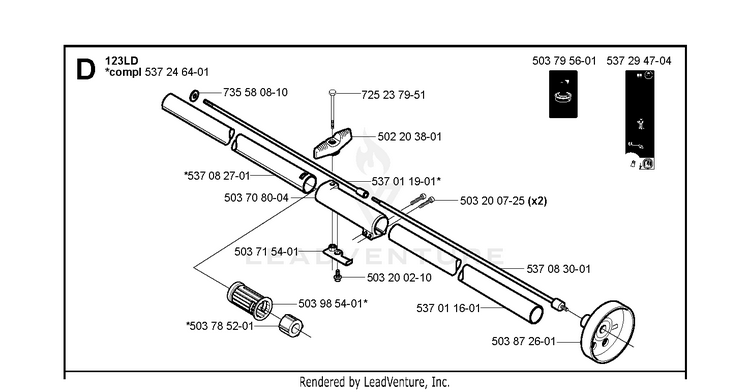

Schematic Image Zoomed
