Husqvarna 122 HD60 Hedge Trimmer

Model: 122 HD60

Back To Assemblies

Save Part Not Listed?
product name

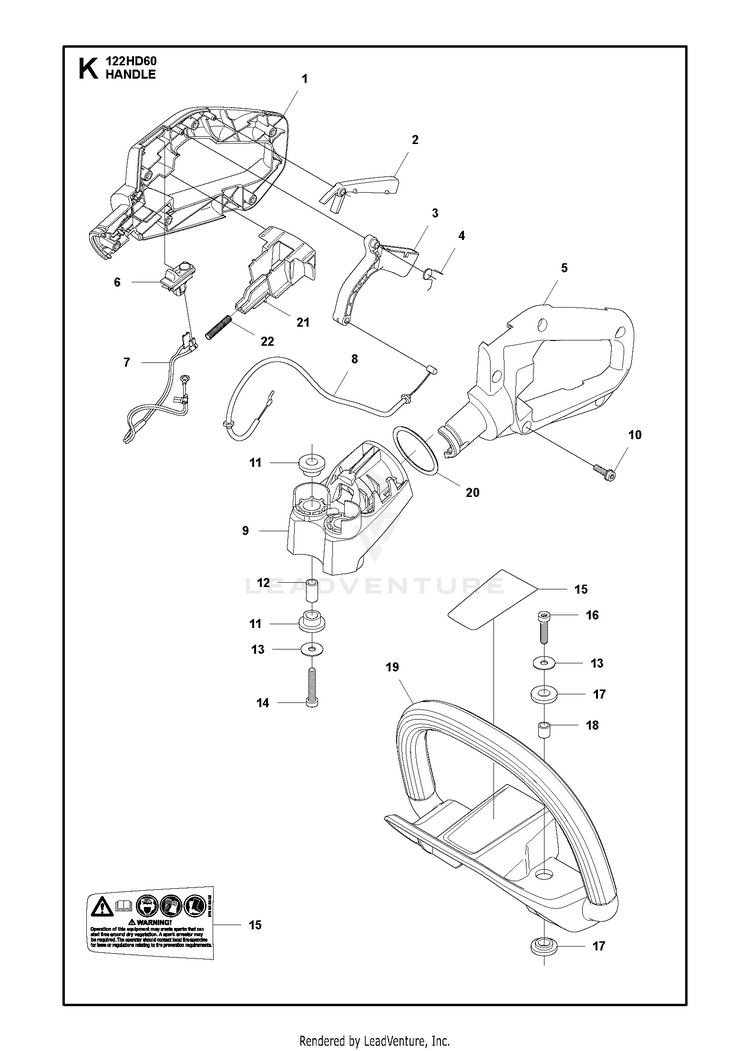

HANDLE

...
...
12
SLEEVE HUS-525633701
...
13
WASHER HUS-734181455
...
9
HANDLE HOLDER HUS-523015401
...
7
SHORT CIRCUIT CABLE HUS-574488802
...
22
RECOIL SPRING HUS-504089801
...
10
SCREW HUS-573925801
...
21
LOCKING BUTTON HUS-504089501
...
17
ANTIVIBRATION ELEMENT HUS-525633601
...
18
SLEEVE HUS-525633801
...
5
REAR HANDLE HUS-504089201
...
1
REAR HANDLE HUS-504089301
...
11
ANTIVIBRATION ELEMENT HUS-525633501
...
15
DECAL HUS-587130002
...
4
SPRING HUS-504089601
...
3
THROTTLE CONTROL HUS-504089401
...
16
SCREW HUS-544218403
...
2
THROTTLE LOCKOUT HUS-504089701
...
8
THROTTLE CABLE ASSY HUS-575572101
...
20
O-RING HUS-575232001
...
6
STOP BUTTON HUS-537419001
...
19
HANDLE HUS-504091201
...
14
SCREW HUS-544218405
