Husqvarna 120i (20170200001-20180499999) Chain Saw

Model: 120i (20170200001-20180499999)

Save
 Part Not Listed?Part Not Listed?

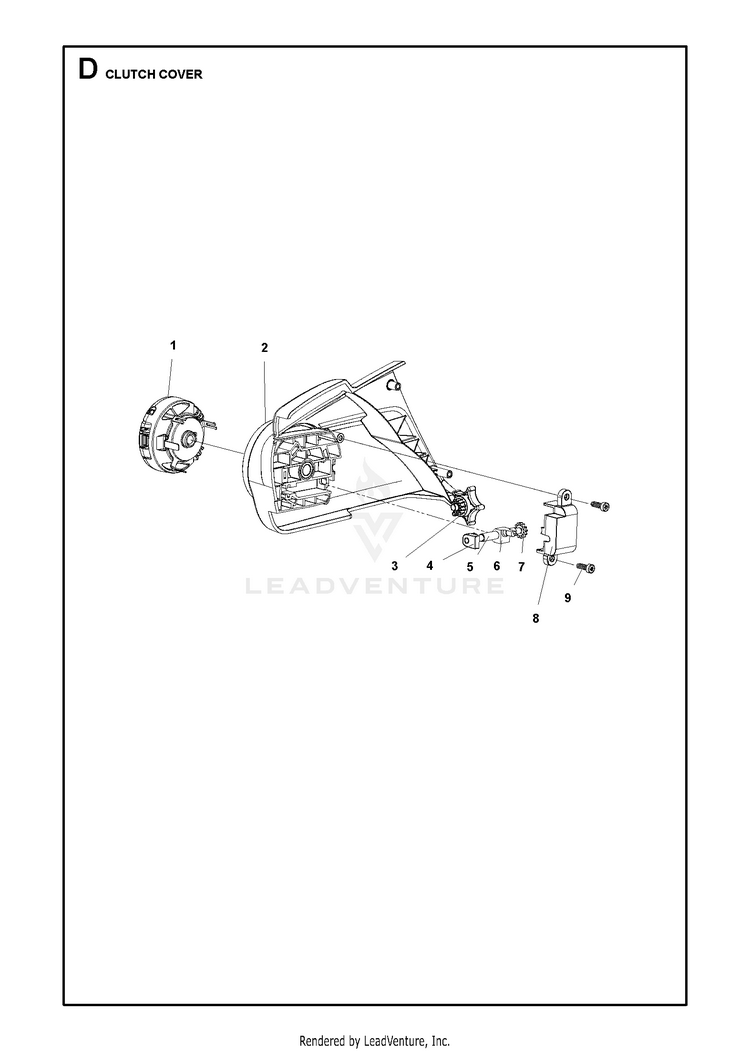

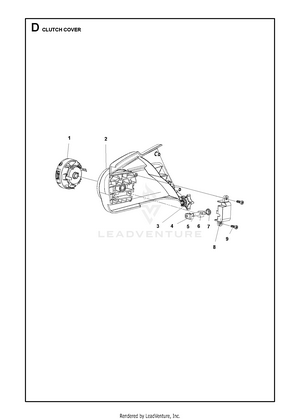

product name

CLUTCH COVER

...
...
2
CLUTCH COVER HUS-585593201
...
1
KNOB UNLOSEABLE HUS-537347803
...
8
COVER PINION HUS-585593401
...
4
SLEEVE HUS-585594001
...
7
PINION ADJUSTMENT HUS-585593501
...
5
SHAFT TENSION HUS-585593901
...
6
PLATE ADJUSTMENT HUS-585593701
...
9
SCREW ST4X12 HUS-585819001
...
3
CHAIN TENSIONER HUS-578776501

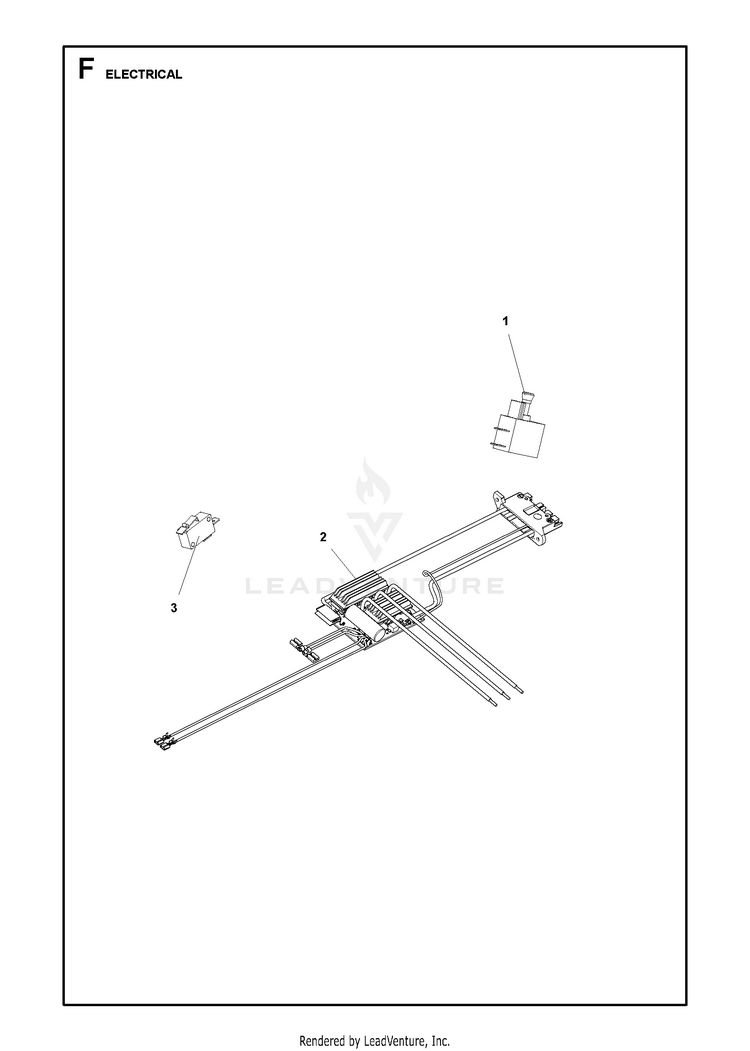

ELECTRICAL

...
...
1
MAIN SWITCH HUS-585590901
...
2
Controls HUS-597178301
...
3
Switches HUS-591157101

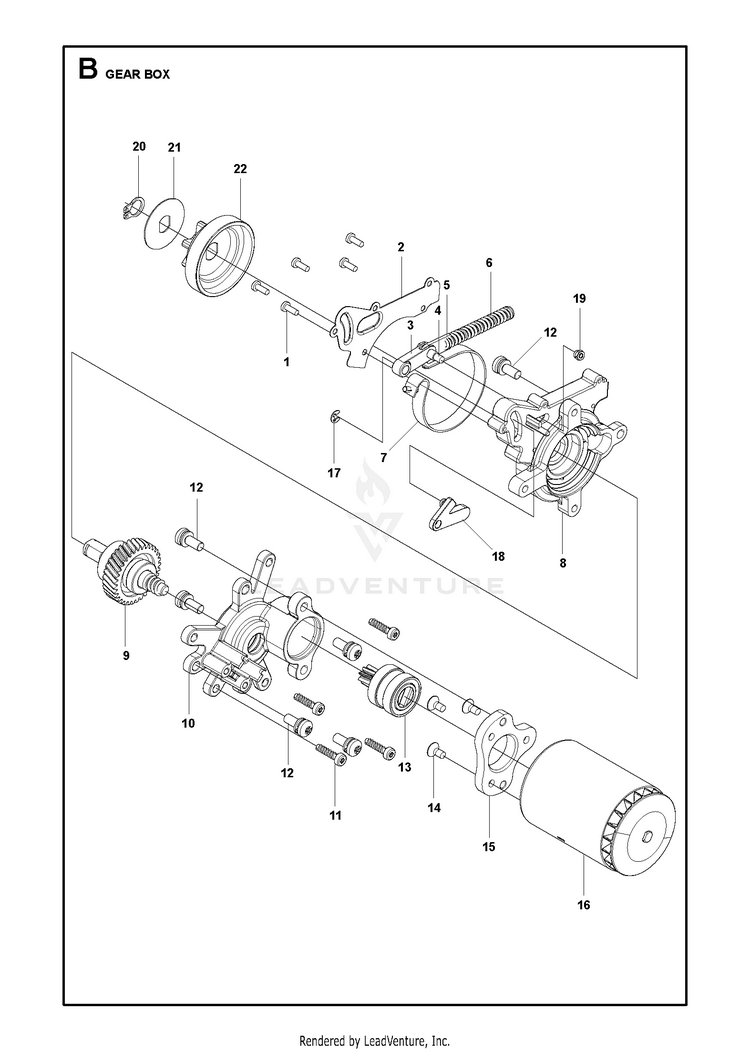

GEAR BOX

...
...
11
SCREW ST4X16 HUS-585819002
...
22
SPROCKET 6 TEETH "3/8""-6T" HUS-536914301
...
10
GEARBOX TOP HUS-582454701
...
19
NUT LOCKING NUT HUS-586902701
...
1
SCREW M3X8 MACHINE SCREW HUS-586903001
...
4
PEN BRAKE SYSTEM HUS-586902601
...
12
SCREW M5X13TOR X MACHINING SCR HUS-586902801
...
18
DRIVE LINK DRIVE LINK HUS-582488701
...
20
CLAMP HUS-574797701
...
13
PINION ASSEMBLY HUS-582864201
...
14
SCREW SUNK M4X8 HUS-582561101
...
16
MOTOR BLDC HUS-582492201
...
21
WASHER HUS-585602001
...
6
BRAKE SPRING HUS-585590501
...
3
PLATE JOINT HUS-585603501
...
17
CLAMP FOR BRAKE SYSTEM HUS-587377701
...
5
PLATE BRAKE HUS-585594401
...
9
SHAFT ASSEMBLY HUS-582864301
...
15
CONNECTOR MOTOR HUS-582456701
...
8
GEARBOX BOTTOM 36V HUS-582486801
...
7
BRAKE BAND HUS-585590301
...
2
COVER PLATE BRAKE HUS-585589701

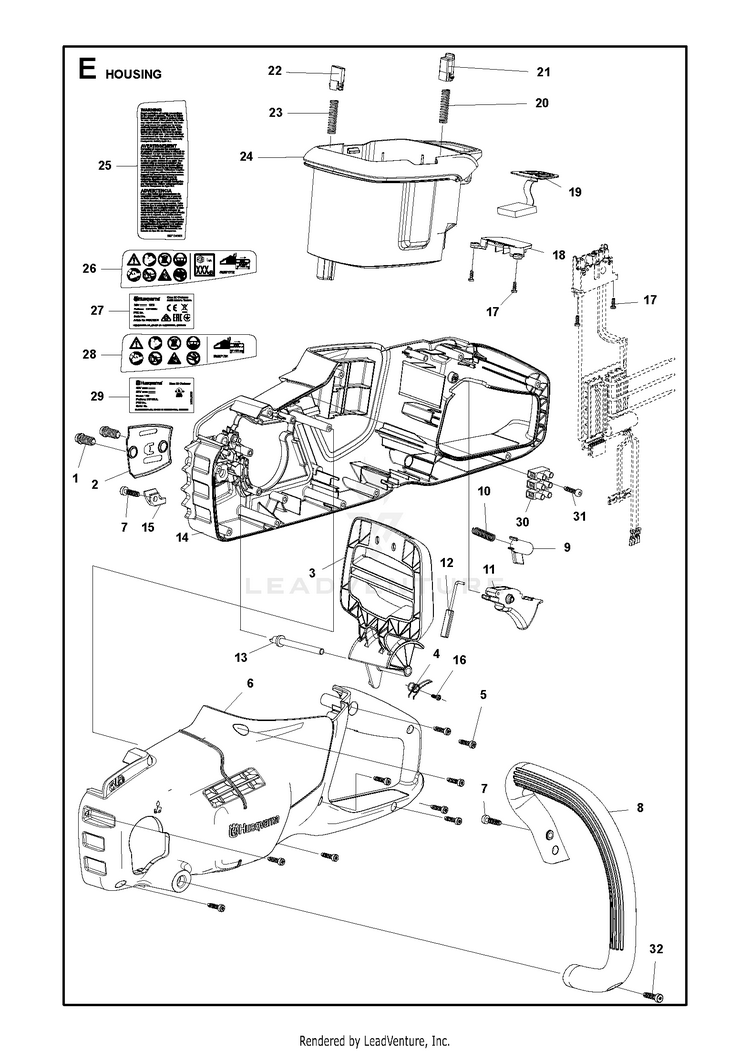

HOUSING

...
...
3
BRAKE HAND GUARD HUS-585581301
...
28
DECAL WARNING DECAL 120I CHAIN HUS-582671701
...
20
SPRING PUSH BUTTON HUS-585636201
...
8
FRONT HANDLE HUS-585590201
...
5
SCREW ST4X16 HUS-585819002
...
7
SCREW ST4.8X18 HUS-585592501
...
2
MOUNTING PLATE BAR HUS-585602701
...
22
PUSH BUTTON FRONT HUS-585636001
...
9
BUTTON LOCK OFF HUS-585590001
...
21
PUSH BUTTON HUS-577996601
...
30
CONNECTOR SMALL HUS-582569301
...
10
SPRING LOCK OFF BUTTON HUS-585590101
...
17
SCREW ST3X8 HUS-585818901
...
32
SCREW HUS-578303906
...
29
DECAL RATING DECAL 120I CHAINS HUS-582672201
...
24
BATTERY BOX HUS-585593001
...
19
Keypad HUS-599392301
...
11
TRIGGER HUS-585589801
...
12
LEVER TRIGGER HUS-585589301
...
27
DECAL RATING DECAL 120I CHAINS HUS-582672203
...
4
SPRING BRAKE CUT OFF POWDER HUS-587600101
...
14
HOUSING RIGHT ASSEMBLY HUS-585566802
...
16
SCREW SCREW MT3X10 36V HUS-575309802
...
25
LABEL WARNING TEXT, US HUS-587134101
...
15
CHAIN CATCHER HUS-505288501
...
1
SCREW ST8X16 HUS-587426601
...
23
SPRING PUSH BUTTON HUS-585636601
...
6
HOUSING LEFT - PAINTING HUS-588162502
...
26
DECAL WARNING DECAL 120I CHAIN HUS-582671702
...
31
SCREW ST3X16 HUS-582712201
...
13
PIVOT HAND GUARD HUS-585931901
...
18
BRACKET KEY PAD HUS-585592301

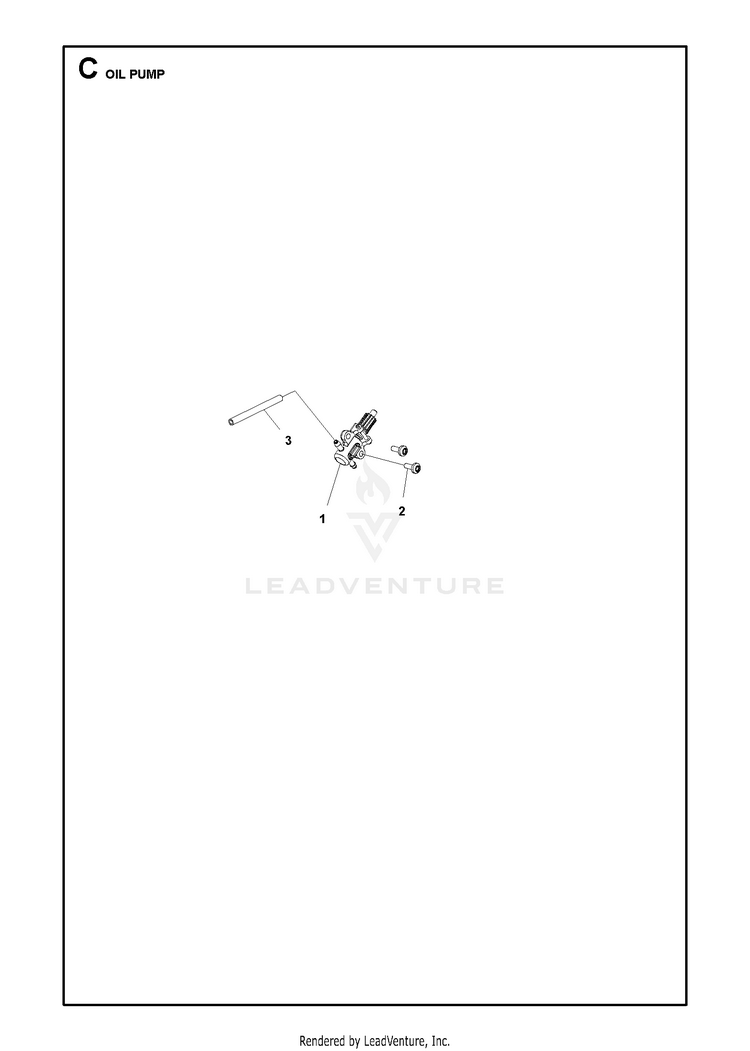

OIL PUMP

...
...
2
SCREW M4X10 MACHINE SCREW HUS-586902901
...
3
OIL HOSE WHITE AND TRANSPAREN HUS-585566601
...
1
OIL PUMP ASSY 36V CHAINSAW HUS-586846501

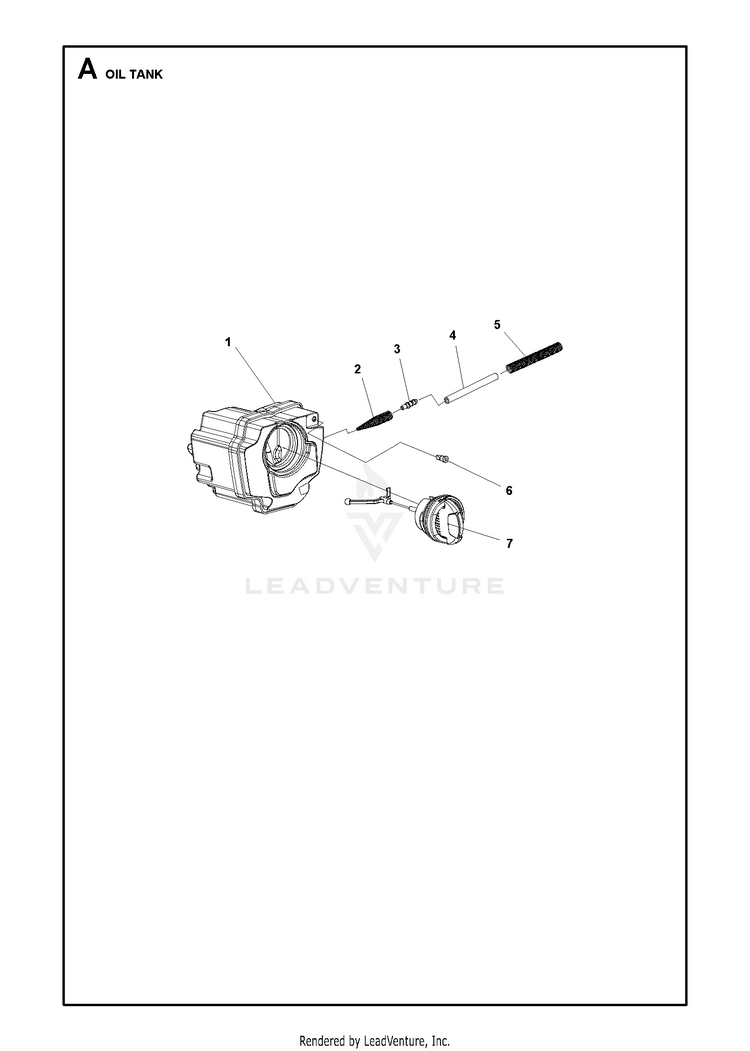

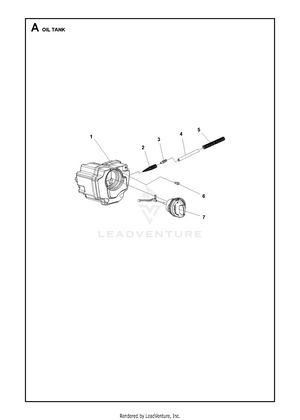

OIL TANK

...
...
6
VALVE, FUEL INLET HUS-575484501
...
2
SPRING SPRING FILTER 36V HUS-582148601
...
5
SPRING PIN SPRING, OIL HOSE S HUS-581990101
...
7
TANK CAP ASSY HUS-522620003
...
3
TUBE SUB HUS-574800901
...
1
TANK ASSY HUS-582734601
...
4
OIL HOSE WHITE AND TRANSPAREN HUS-585566601
...
...
...
...
...
