product name

Husqvarna 120 MARK II - 967861902 (20181800001-Current) Chain Saw

Model: 120 MARK II - 967861902 (20181800001-Current)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

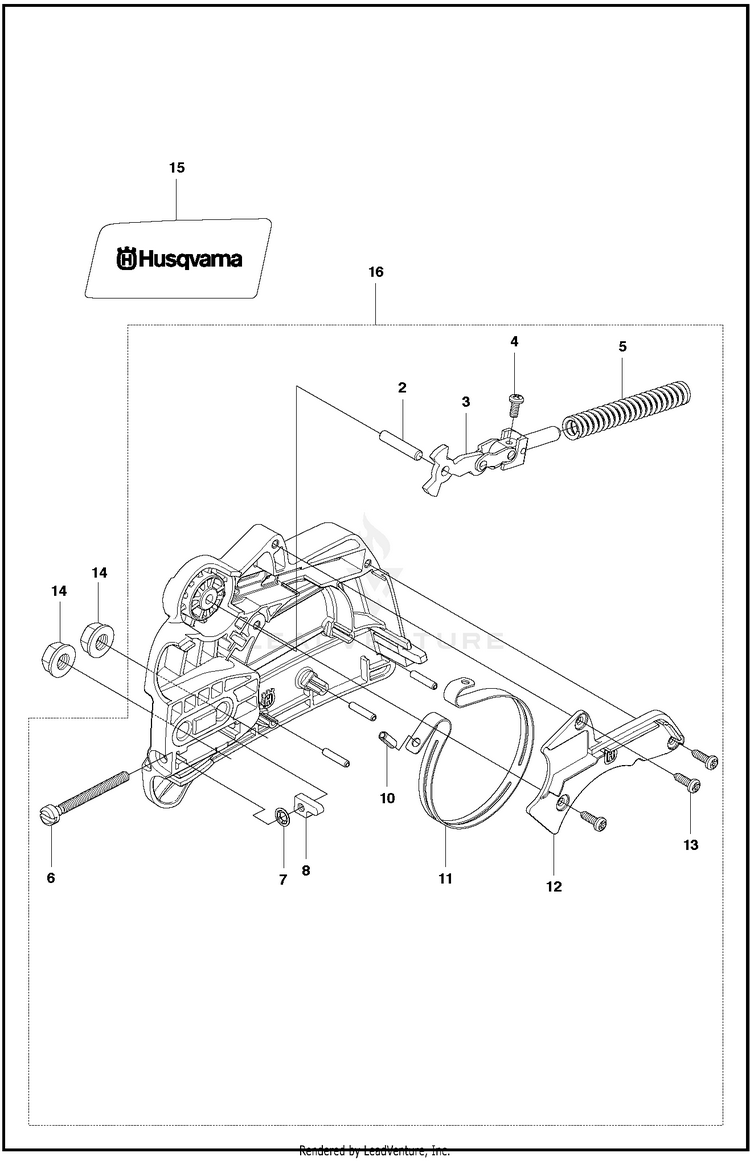

CHAIN BRAKE

...
...
14
BAR NUT NUT HUS-530015917
...
8
ADJUST PIN,BAR 36/41 PIN BAR ADJUSTING HUS-530015826
...
4
SCREW M3.63-1.34 X 8MM SCREW M3.63-1.34 X 8MM TORX HUS-574780301
...
12
COVER CHAIN BRAKE GRAY HUSQ COVER CHAIN BRAKE HUS-525743001
...
6
BAR ADJUSTING SCREW SCREW BAR ADJUSTMENT HUS-530016110
...
2
PIN PIN. DOWEL HUS-530057950
...
16
CHAIN BRAKE ASSY ORANGE CHAIN BRAKE ASSY HUS-525628901
...
3
NEEDS DESCRIPTION LINK FRONT HUS-530057913
...
5
SPRING SPRING COMPRESSION HUS-530016415
...
13
SCREW 6-19X.437 SCREW HUS-545227101
...
7
RETAINER RETAINER BAR ADJUSTMENT HUS-530038593
...
15
DECAL DECAL HUS-545118701
...
11
BRAKE BAND BRAKE BAND HUS-530057923
...
10
PIN PIN BRAKE BAND HUS-530015913
...
...
...
...
...
