Husqvarna 120 MARK II - 967861902 (20181800001-Current) Chain Saw

Model: 120 MARK II - 967861902 (20181800001-Current)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

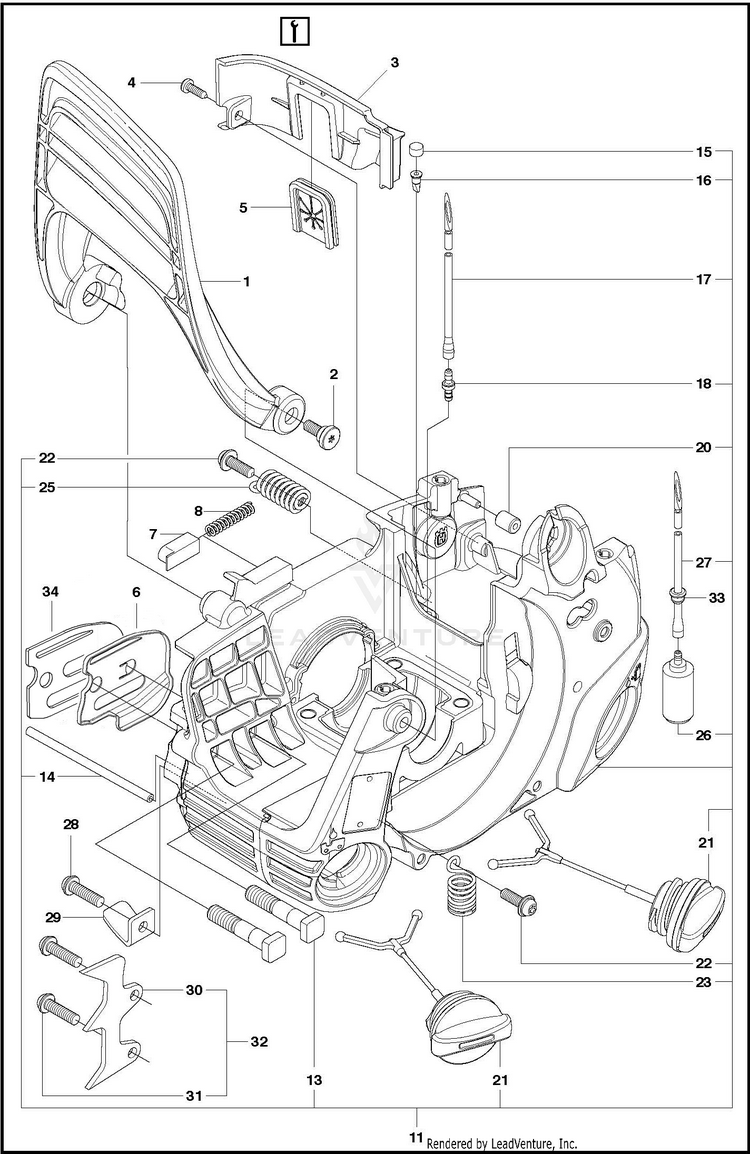

FUEL TANK & HANDLE

...
...
11
CHASSIS CHASSIS ASSEMBLY MACH. BEARING HUS-587026804
...
5
GROMMET GROMMET REAR WALL HUS-545075401
...
16
VALVE-CHECK (DUCKBILL) CHECK VALVE DUCKBILL HUS-530026119
...
15
VENT,FUEL TANK 36/41 PLUG HUS-530029868
...
4
SCREW 6-19X.437 SCREW HUS-545227101
...
13
BAR BOLT BOLT M8 X 1.25 HUS-529310302
...
3
REAR WALL REAR WHEEL HUS-545061201
...
25
SPRING SPRING REAR ISOLATOR HUS-545063101
...
27
KIT FUEL LINE FUEL HOSE KIT LP100 5.3 O.D. HUS-580727101
...
22
SCREW,FRONT HBAR 36/41 SCREW HUS-530015906
...
31
SCREW SCREW HUS-530016439
...
28
SCREW SCREW PT 60/10-14 HUS-530015814
...
34
Spacers SPACER PLATE HUS-592969801
...
21
ASSY TANK CAP GREY TANK CAP ASSY GREY HUS-544111203
...
26
ASSY FUEL PICKUP PRE FLUSHED ASSEMBLY FUEL PICKUP PRE FLUSHED HUS-577167201
...
2
BOSS SCREW BOSS SCREW HANDGUARD HUS-545127301
...
14
OIL TUBE HOSE HUS-545033501
...
1
HANDGUARD HAND GUARD ASSY HHS HUS-577611902
...
33
GROMMET FUEL LINE GROMMET FUEL LINE HUS-580457501
...
32
SPIKE 36/41 FELLING DOG KIT SPIKE ASSEMBLY HUS-530014381
...
17
KIT FUEL LINE FUEL HOSE KIT LP100 5.3 O.D. HUS-580727101
...
18
FUEL LINE FITTING NIPPLE FITTING - FUEL LINE HUS-530023877
...
8
SPRING SPRING. HANDGUARD POSITION HUS-545071201
...
7
CAP, SPRING HANDGUARD CAP. SPRING HANDGUARD HUS-545071301
...
20
ISOLATOR FILTER HOUSING ISOLATOR FILTER HOUSING HUS-545061901
...
30
SPIKE 36/41 FELLING DOG HUS-530014381
...
6
PLATE BAR BAR PLATE MOUNTING HUS-545071401
...
29
CHAIN CATCHER 36/41 CHAIN CATCHER HUS-530029850
...
23
ISOLATOR ISOLATOR ASSY FRONT HUS-545033801
...
...
...
...
...
