Husqvarna 120 L (1993-02) Line Trimmer

Model: 120 L (1993-02)

Back To Assemblies

Save Part Not Listed?
product name

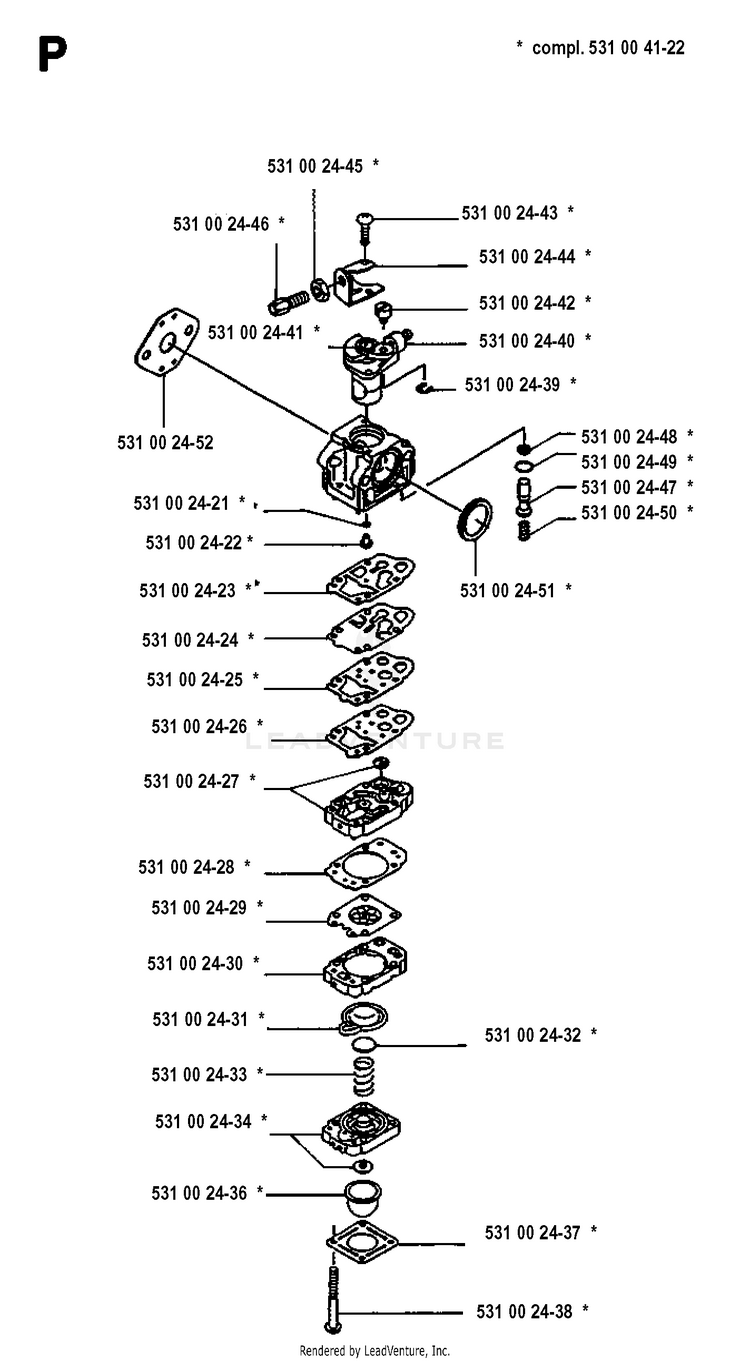

CARBURETOR DETAILS

...
...
531 00 24-40
VALVE ASSY-THROTTLE HUS-531002440
...
531 00 41-22
CARBURETOR HUS-531004122
...
531 00 24-23
GASKET HUS-531002423
...
531 00 24-46
SCREW HUS-531002446
...
531 00 24-50
SPRING HUS-531002450
...
531 00 24-21
O-RING HUS-531002421
...
531 00 24-48
VALVE/STARTER HUS-531002447
...
531 00 24-34
HOUSING HUS-531002434
...
531 00 24-28
GASKET HUS-531002428
...
531 00 24-29
DIAPHRAGM HUS-503896701
...
531 00 24-47
VALVE/STARTER HUS-531002447
...
531 00 24-22
JET HUS-531002422
...
531 00 24-36
PRIMER HUS-531002436
...
531 00 24-44
Bracket HUS-531002444
...
531 00 24-26
GASKET HUS-531002426
...
531 00 24-43
SCREW HUS-531002443
...
531 00 24-31
DIAPHRAGM HUS-531002431
...
531 00 24-39
RETAINING RING HUS-531002439
...
531 00 24-33
SPRING HUS-531002433
...
531 00 24-42
CONNECTION HUS-531002442
...
531 00 24-51
GASKET HUS-531002451
...
531 00 24-25
PLATE/PUMP HUS-531002425
...
531 00 24-24
DIAPHRAGM HUS-531002424
...
531 00 24-49
O-RING HUS-531002449
...
531 00 24-38
SCREW HUS-531002438
...
531 00 24-30
HUS-531002430
...
531 00 24-32
HOLDER HUS-531002432
...
531 00 24-37
COVER FUEL PUMP HUS-531002437
...
531 00 24-27
BODY ASSY-FUEL PUMP HUS-531002427
...
531 00 24-41
Plug HUS-531002441
...
531 00 24-52
GASKET HUS-531002452
...
531 00 24-45
NUT HUS-531002445
