Husqvarna 120 L (1993-02) Line Trimmer

Model: 120 L (1993-02)

Back To Assemblies

Save Part Not Listed?
product name

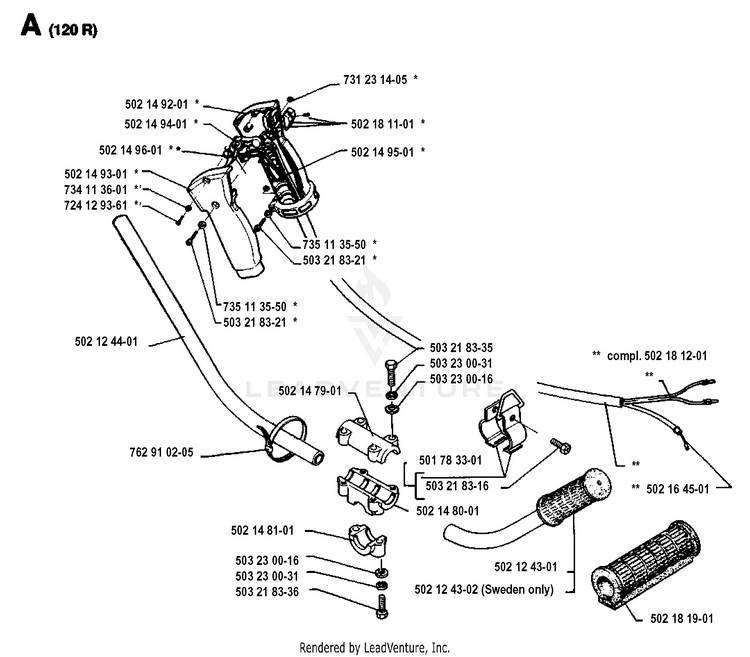

HANDLE & CONTROLS

...
...
502 12 43-02
HANDLE LEFT NLA SWEDEN ONLY HUS-502124302
...
502 12 44-01
HANDLE RIGHT HUS-502124401
...
503 23 00-16
WASHER 5.1X8.5 HUS-503230016
...
502 12 43-01
HANDLE LEFT HUS-502124301
...
735 11 35-50
SPRING WASHER 6.4X11 HUS-735115350
...
502 14 93-01
HANDLE L&R HUS-502149201
...
502 14 96-01
Recoil Spring HUS-502149601
...
502 16 45-01
THROTTLE WIRE HUS-502164501
...
734 11 36-01
WASHER HUS-734113601
...
762 91 02-05
HOOP HUS-762910205
...
502 18 19-01
HANDLE NLA HUS-502181901
...
502 18 11-01
SWITCH CPL HUS-502181101
...
503 21 83-21
SCREW 5X25 HUS-503218321
...
502 14 80-01
Handle Holder Lower HUS-502148001
...
503 21 83-16
SCREW 5X14 HUS-503218316
...
502 14 79-01
Handle Holder Upper HUS-502147901
...
724 12 93-61
SCREW HUS-724129361
...
502 14 95-01
LOCK LEVER HUS-502149501
...
501 78 33-01
HANGING BKT SHOULDER HARNESS HUS-501783301
...
502 14 92-01
HANDLE L&R HUS-502149201
...
503 23 00-31
Washer 6.4x14 HUS-503230031
...
502 18 12-01
WIRE ASSY HUS-502181201
...
502 14 94-01
THROTTLE LEVER HUS-502149401
...
503 21 83-35
Screw 6x25 HUS-503218335
...
502 14 81-01
Bracket HUS-502148101
...
731 23 14-05
NUT M6M M5 HUS-731231405
...
503 21 83-36
Screw 6x30 HUS-503218336
