product name

Husqvarna 12 LRC (1995-12) Line Trimmer

Model: 12 LRC (1995-12)

Save
Part Not Listed?Part Not Listed?
product name

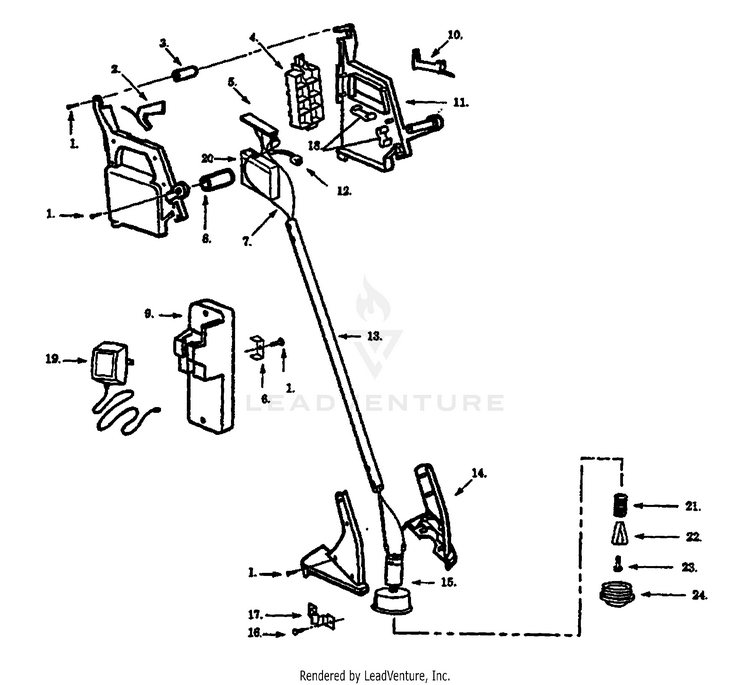

General Assembly

...

...
2
Trigger Switch HUS-530400479

...
4
BATTERY DOOR HUS-530402133


...
6
Probe-clamp HUS-530401465

...
7
MOTOR ASSY OTHER - ELECTRIC PA HUS-530401847

...
8
ASSIST HANDLE HUS-534101430

...
9
Hanging Bracket HUS-530401431

...
10
TRIGGER LOCK HUS-530402931

...
11
US HOUSING SET HUS-530402852

...
12
RECEPTACLE ASSEMBLY HUS-530401479

...
13
TUBE ASSY - SQ-HD HUS-530402275

...
14
BATTERY DOOR HUS-530402133

...
15
MOTOR/HUB ASSEMBLY HUS-530403337

...
16
SCREW 8-16 X 9/16 (PLAS HUS-530015775

...
17
CLAMP - MOTOR HUS-530401460

...
18
Battery Spring HUS-530401462

...
19

...
20
BATTERY KIT-12V HUS-530402815

...
21

...
22
CLIP RETAINER HUS-530401466

...
23
Screw w/Washer HUS-530401467

...

...
xx
Operator Manual HUS-530063266

...
xx
MOTOR-HSG-W/LINE LIMITER HUS-530401448
...
...
...
