Husqvarna 115iL Trimmer/Edger

Model: 115iL

Save
 Part Not Listed?Part Not Listed?
product name

Popular Parts

Popular Parts

ACCESSORIES

...
...
1
HUS T25 TRIMMER HEAD M8 (BAT) HUS-596292503

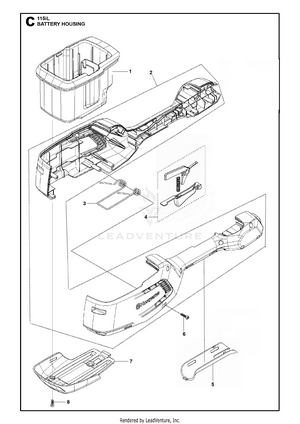

BATTERY

...
...
3
SPRING POP UP HUS-585342401
...
8
SCREW ST4X12 HUS-585819001
...
5
COVER REAR HANDLE GREY HUS-585327201
...
7
PLATE BACK GREY HUS-585325301
...
4
TRIGGER ,TRIGGER ASSY HUS-588755201
...
2
HOUSING ASSY HUS-582565101
...
1
COVER BATTERY GREY HUS-585325201
...
6
SCREW ST4X16 HUS-585819002

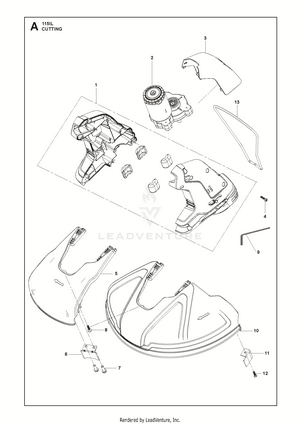

CUTTING EQUIPMENT

...
...
7
SCREW US/CA HUS-503217516
...
1
Housings HUS-590390301
...
11
BLADE 330MM For 967098801, 967098802, 967098803, 967098804 HUS-585340901
...
3
COVER MOTOR HOUSING HUS-585339101
...
9
ALLEN KEY HUS-576809401
...
12
SCREW ST4X16 For 967098801, 967098802, 967098803, 967098804 HUS-585819002
...
2
GEARBOX ASSY 115IL TRIMMER 967098701/967098702, HIGHER THAN S/N 20180500001, 967098802/967098803/967098804, HIGHER THAN S/N 20180600001, 967098801, HIGHER THAN S/N 20180500001. 400W, 36V, BLDC, 3 PHASES HUS-591384201
...
6
BLADE LINE CUTTER US/CA HUS-591083001
...
5
GUARD FOR CUTTING HEAD 36V US/CA HUS-582452901
...
2
GEARBOX ASSY 36V 967098701/967098702, UP TO S/N 20180300276, 967098801/967098803/967098804, UP TO S/N 20180401270, 967098802, UP TO S/N 20180503270. 400W, 36V, BLDC, 3 phases HUS-582839301
...
13
RING PLANT GUARD For 967098801, 967098802, 967098803, 967098804 HUS-586480101
...
4
SCREW ST4X16 HUS-585819002
...
8
SCREW ST4*16 HUS-586030401
...
10
GUARD FOR CUTTING HEAD For 967098801, 967098802, 967098803, 967098804 HUS-585339201

ELECTRICAL

...
...
5
NEEDS DESCRIPTION HIGHER THAN S/N 20195201546 HUS-591076901
...
2
CONTROL UNITS HIGHER THAN S/N 20195201546 HUS-593264502
...
3
NEEDS DESCRIPTION HIGHER THAN S/N 20195201546 HUS-590808502
...
1
KEYPAD HIGHER THAN S/N 20195201546 HUS-597665401
...
9
SCREW ST3X8 HIGHER THAN S/N 20195201546 HUS-585818901
...
8
PANEL KEYPAD HIGHER THAN S/N 20195201546 HUS-585327301
...
7
KEYPAD GRAPHICS HIGHER THAN S/N 20195201546 HUS-597665501
...
4
SCREW ST3X8 HIGHER THAN S/N 20195201546 HUS-585818901
...
6
BRACKET HIGHER THAN S/N 20195201546 HUS-597765601

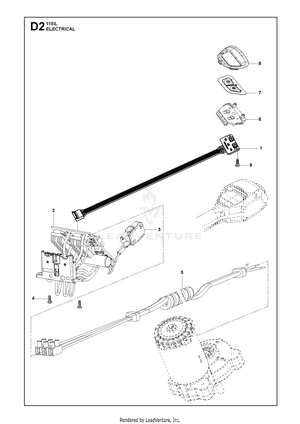

ELECTRICAL 2

...
...
3
NEEDS DESCRIPTION UP TO S/N 20195201546 HUS-590808502
...
5
NEEDS DESCRIPTION UP TO S/N 20195201546 HUS-591076901
...
4
SCREW ST3X8 UP TO S/N 20195201546 HUS-585818901
...
1
KEYPAD TRIMMER 36V UP TO S/N 20195201546 HUS-582453401
...
7
SUPPORT KEYPAD PANEL UP TO S/N 20195201546 HUS-585861601
...
2
CONTROL UNITS UP TO S/N 20195201546 HUS-593264502
...
6
PANEL KEYPAD UP TO S/N 20195201546 HUS-585327301

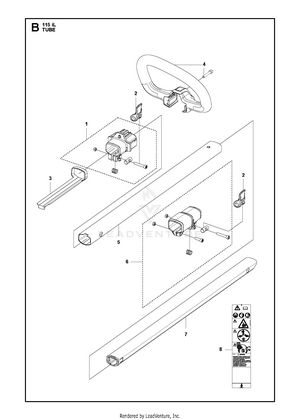

TUBE

...
...
5
TUBE HIGHER THAN S/N 20195201546 HUS-597765701
...
7
TUBE ASSY SMALL TUBE ASSEMBLY HUS-582553401
...
8
LABEL WARNING TRIMMERS AND BRU HUS-589295101
...
5
TUBE BIG UP TO S/N 20195201546 HUS-585341101
...
4
HANDLE ,FRONT HANDLE ASSY HUS-588755002
...
1
COUPLING ,FRONT HANDLE ASSY HUS-588754901
...
6
COUPLING ,TUBE COUPLING ASSY HUS-588755101
...
3
SPACER FRONT HANDLE HUS-586452301
...
2
LEVERS HUS-590932701
...
...
...
...
...
