product name

Husqvarna 115iL - 967098801 (2018-02) Trimmers/Edgers

Model: 115iL - 967098801 (2018-02)

Save
Part Not Listed?Part Not Listed?
product name

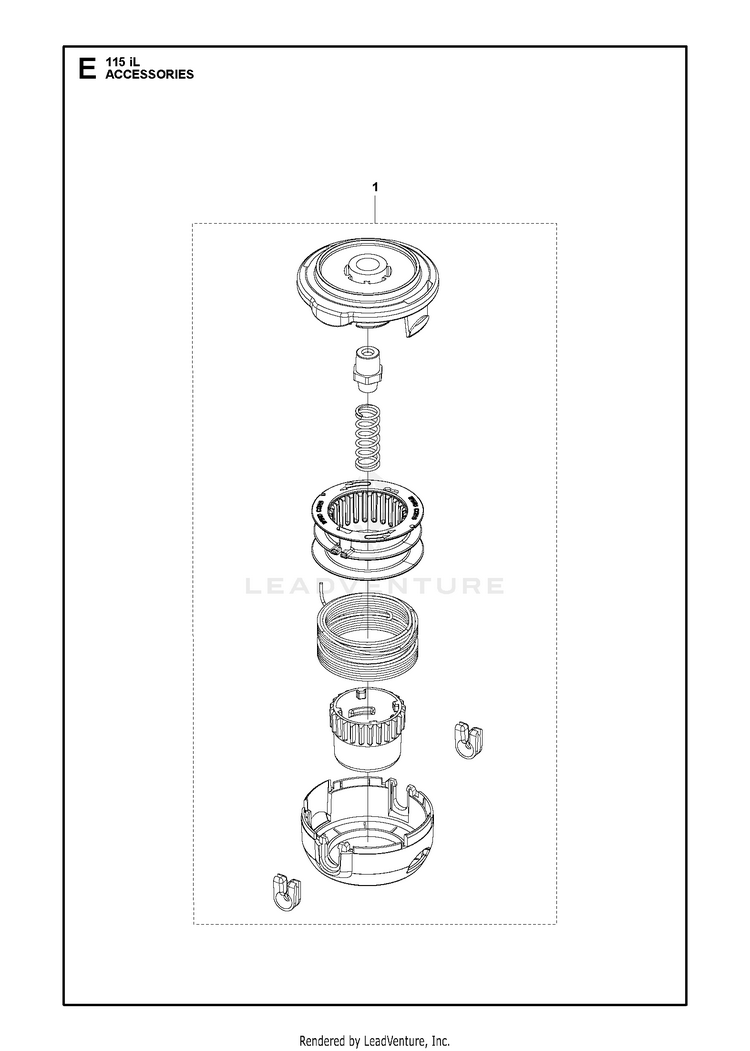

ACCESSORIES

...
...
1
HUS T25 TRIMMER HEAD M8 (BAT) HUS-596292503

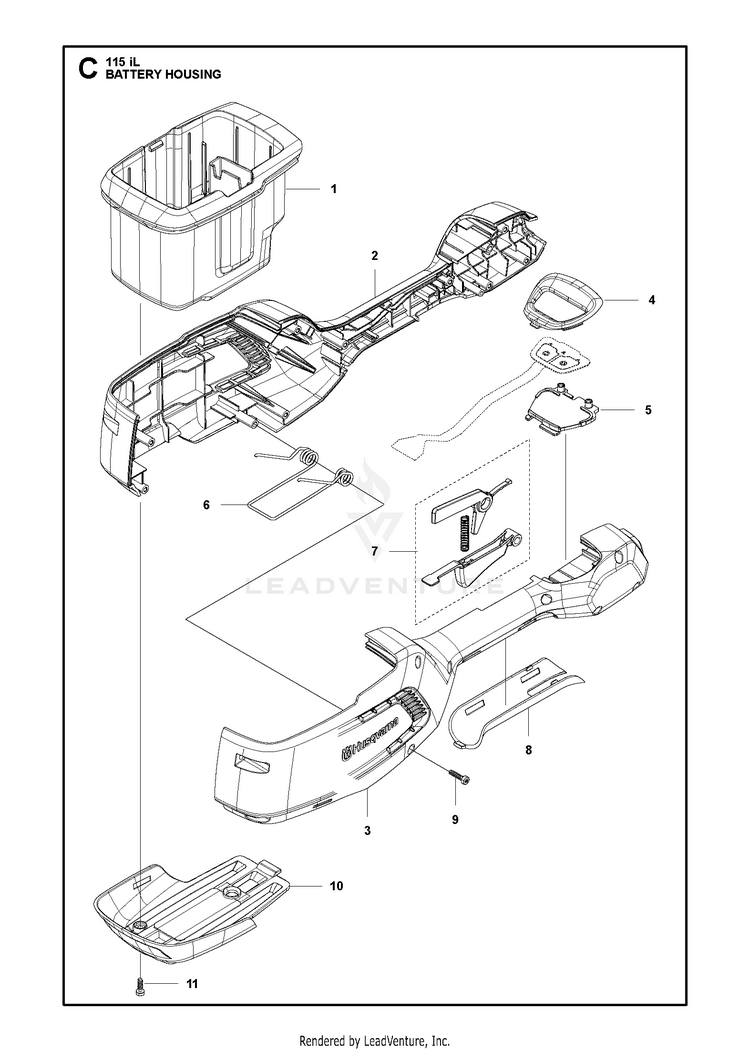

BATTERY

...
...
1
COVER BATTERY GREY HUS-585325201

...
2
HOUSING ASSY HUS-582565101

...
3
HOUSING ASSY HUS-582565101

...
4
PANEL KEYPAD HUS-585327301

...
5
SUPPORT KEYPAD PANEL HUS-585861601

...
6
SPRING POP UP HUS-585342401

...
7
TRIGGER ,TRIGGER ASSY HUS-588755201

...
8
COVER REAR HANDLE GREY HUS-585327201

...
9
SCREW ST4X16 HUS-585819002

...
10
PLATE BACK GREY HUS-585325301

...
11
SCREW ST4X12 HUS-585819001

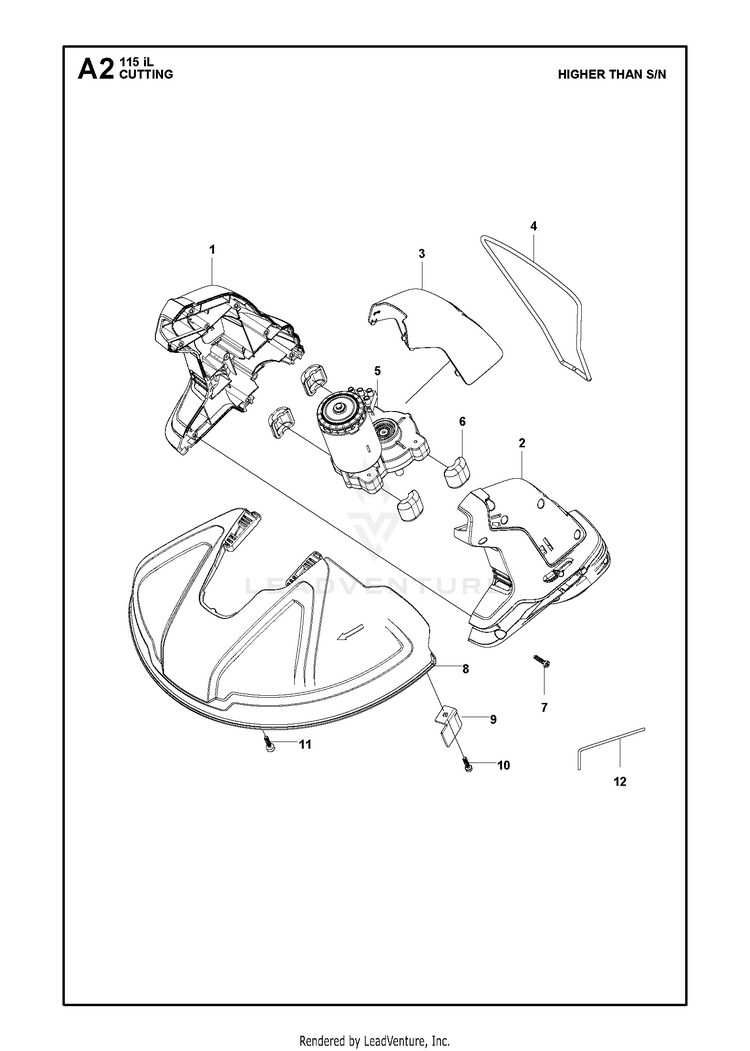

CUTTING EQUIPMENT

...
...
1

...
2

...
3
COVER MOTOR HOUSING HUS-585339101

...
4
RING PLANT GUARD HUS-586480101

...
5
GEARBOX ASSY 115IL TRIMMER HUS-591384201

...
6
PAD SHOCK HUS-585870701

...
7
SCREW ST4X16 HUS-585819002

...
8
GUARD FOR CUTTING HEAD HUS-585339201

...
9
BLADE 330MM HUS-585340901

...
10
SCREW ST4X16 HUS-585819002

...
11
SCREW ST4*16 HUS-586030401

...
12
ALLEN KEY HUS-576809401

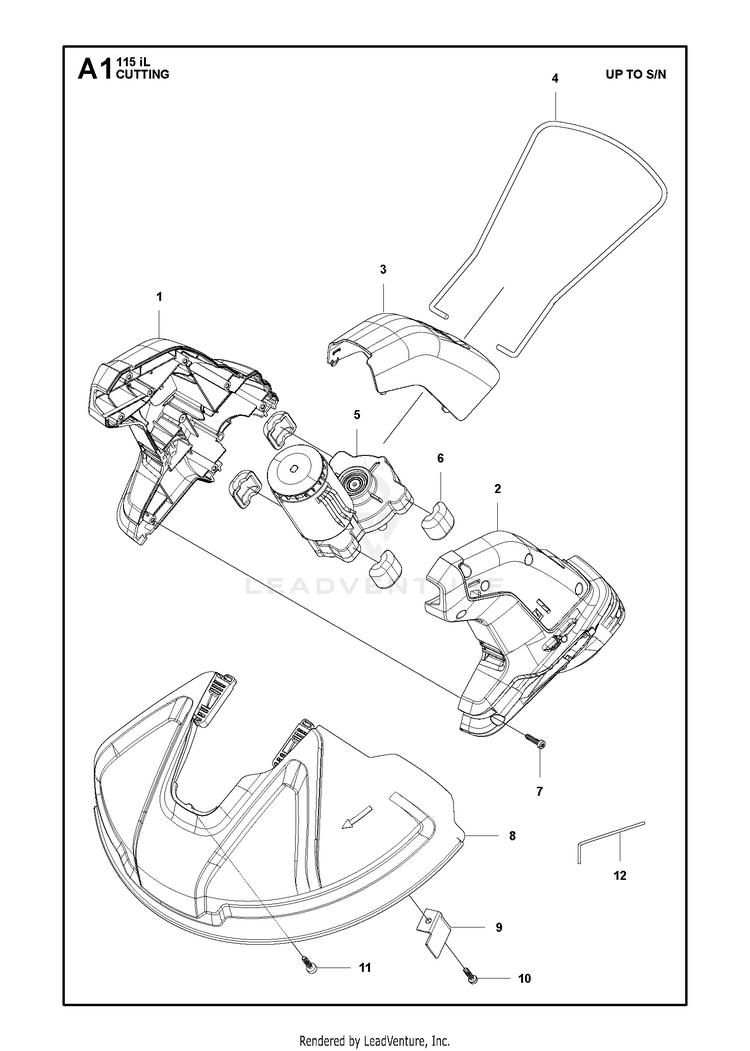

CUTTING EQUIPMENT 2

...
...
1

...
2

...
3
COVER MOTOR HOUSING HUS-585339101

...
4
RING PLANT GUARD HUS-586480101

...
5
GEARBOX ASSY 36V HUS-582839301

...
6
PAD SHOCK HUS-585870701

...
7
SCREW ST4X16 HUS-585819002

...
8
GUARD FOR CUTTING HEAD HUS-585339201

...
9
BLADE 330MM HUS-585340901

...
10
SCREW ST4X16 HUS-585819002

...
11
SCREW ST4*16 HUS-586030401

...
12
ALLEN KEY HUS-576809401

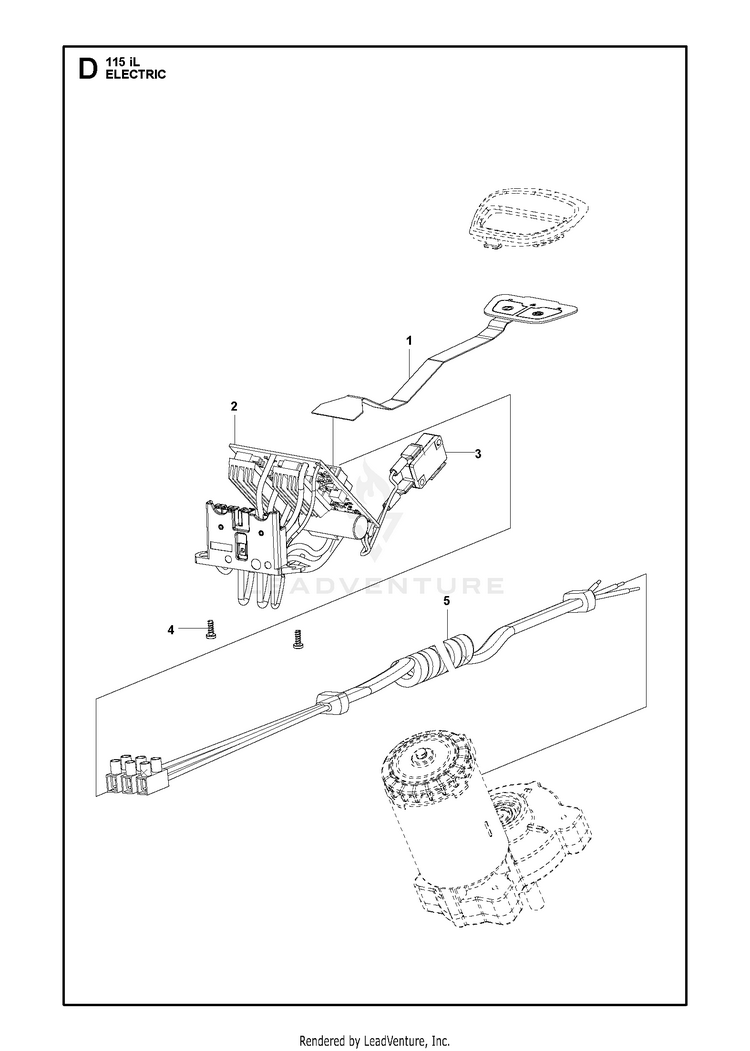

ELECTRICAL

...
...
1
KEYPAD TRIMMER 36V HUS-582453401

...
2
CONTROL UNITS HUS-593264502

...
3
NEEDS DESCRIPTION HUS-590808502

...
4
SCREW ST3X8 HUS-585818901

...
5
NEEDS DESCRIPTION HUS-591076901

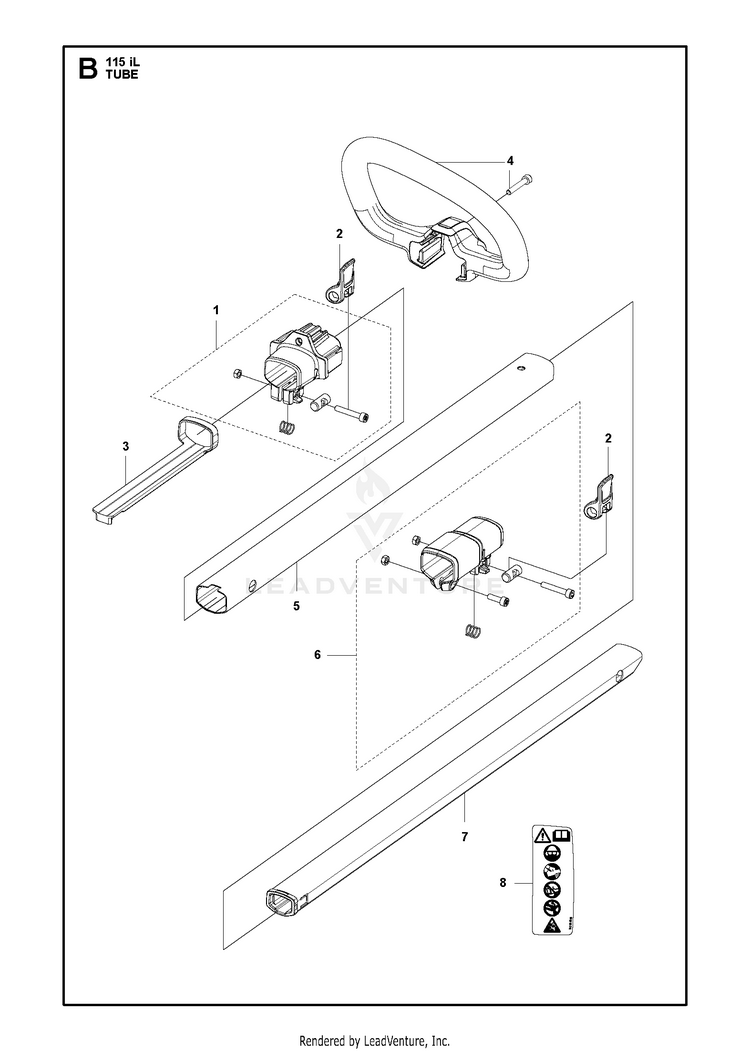

TUBE

...
...
1
COUPLING ,FRONT HANDLE ASSY HUS-588754901

...

...
3
SPACER FRONT HANDLE HUS-586452301

...
4
HANDLE ,FRONT HANDLE ASSY HUS-588755002

...
5

...
6
COUPLING ,TUBE COUPLING ASSY HUS-588755101

...
7
TUBE ASSY SMALL TUBE ASSEMBLY HUS-582553401

...
...
...
