product name

Husqvarna 115 iHD55 - 967098602 (20170100001-20171000000) Hedge Trimmer

Model: 115 iHD55 967098602(20170100001-20171000000)

Save
Part Not Listed?Part Not Listed?

product name

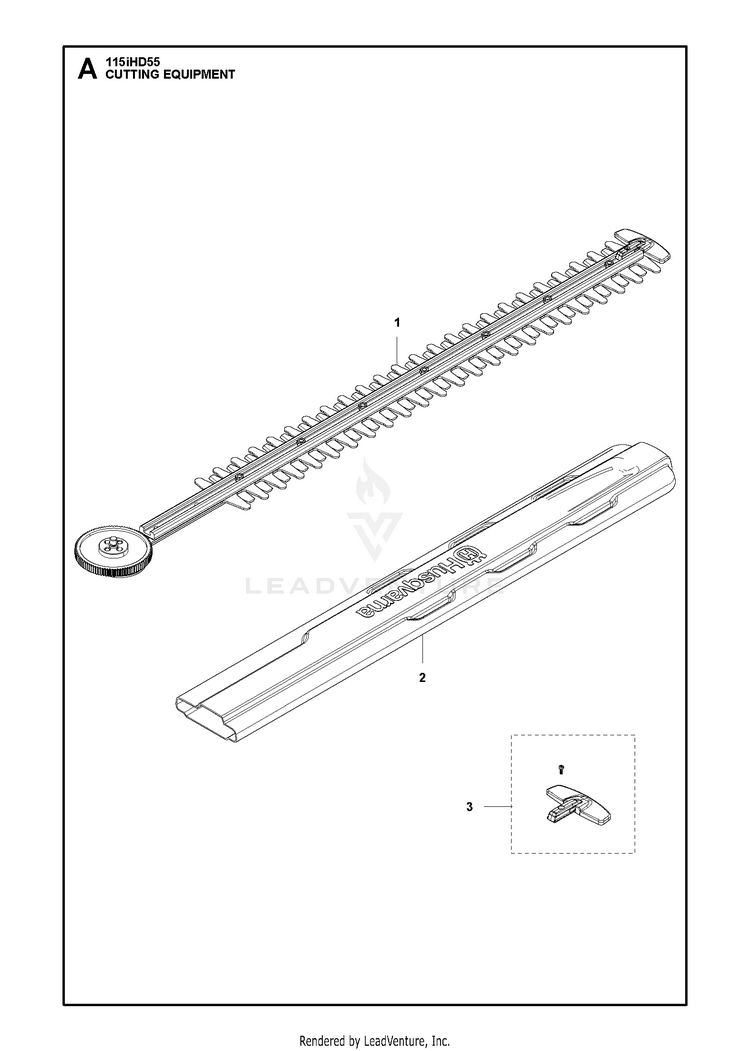

CUTTING EQUIPMENT

...
...
3
TIP PROTECTION KOMPL HUS-588760101

...
2
BLADE SLEEVE FOR US MARKET HUS-582492901

...
1
DRIVER ASSY US VERSION HUS-582569101

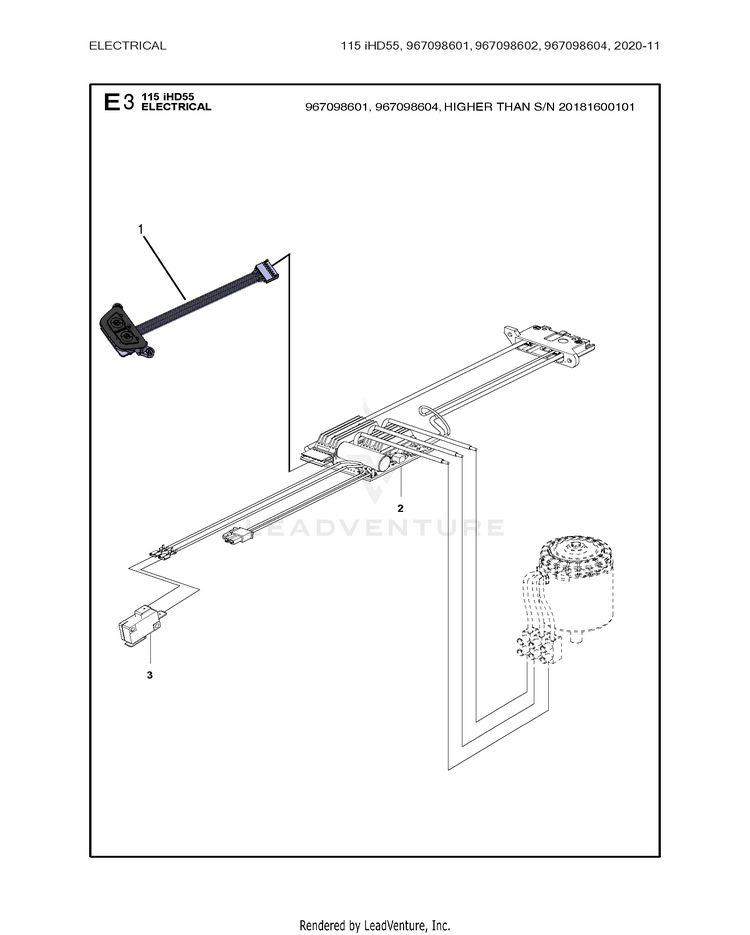

ELECTRICAL

...
...
2

...
3
MICRO SWITCH HUS-590808501

...
1
KEYPAD ASSEMBLY HUS-599392401

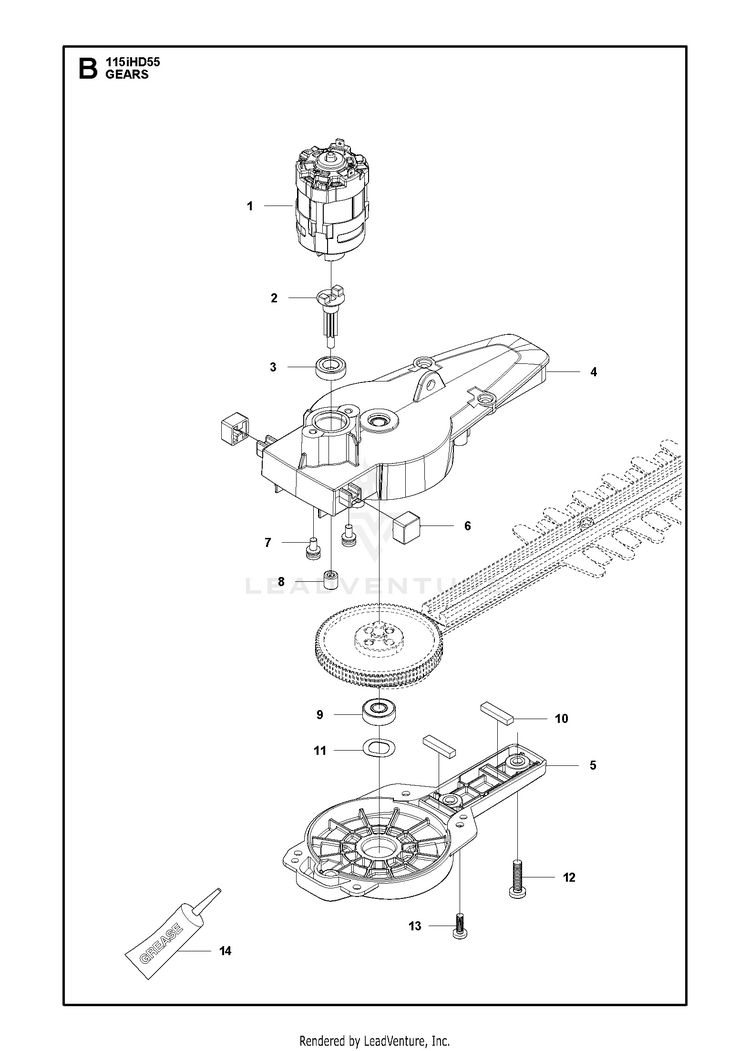

GEARS

...
...
10
PAD DUSTPROOF HUS-585628201

...
5
COVER GEAR BOX HUS-582492601

...
3
BALL BEARING 689 2RS HUS-582517101

...
12
SCREW M5X20 HUS-585818601

...
6
SHOCK ABSORBING HUS-585818801

...
13
SCREW M4X12 HUS-585818701

...
1
MOTOR ASSEMBLY HUS-582861301

...
9
BALL BEARING HUS-585635801

...

...
4
GEAR BOX ASSEMBLY HUS-582855001

...
11
SPRING WASHER HUS-588267701

...
14
GREASE 20G HEDGE TRIMMER GEAR 3,5g HUS-503989603

...
8
NEEDLE BEARING HUS-585628301

...
7
SCREW M3X10 HUS-582561001

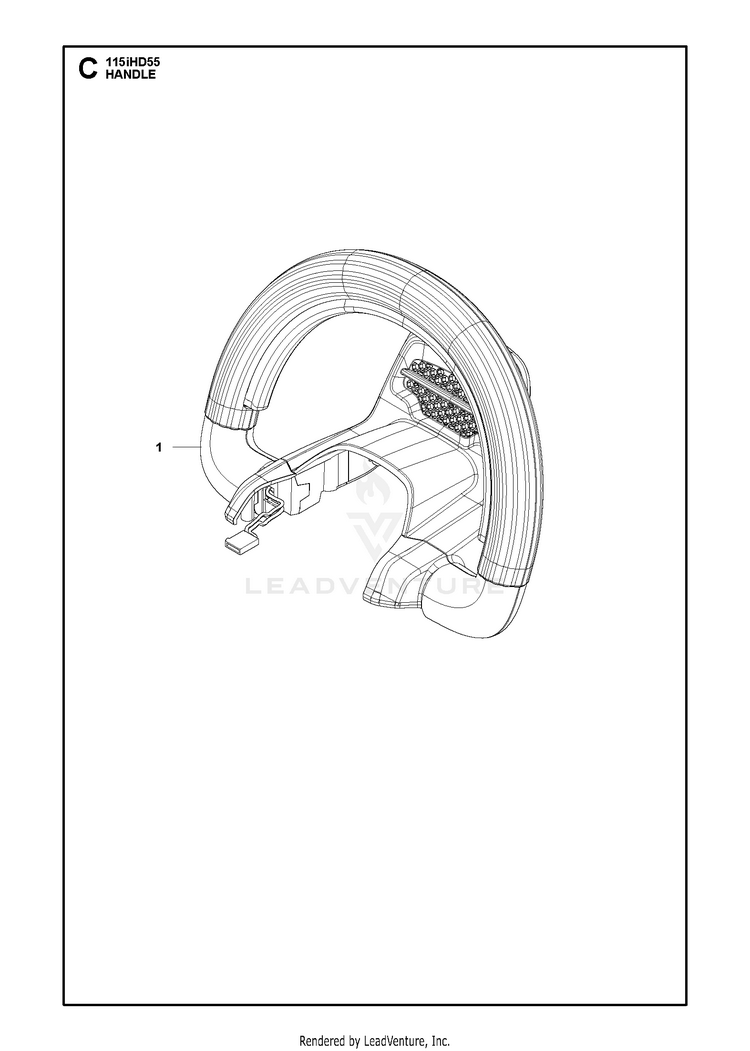

HANDLE

...
...
1
HANDLE ,FRONT HANDLE ASSEMBLY HUS-591426401

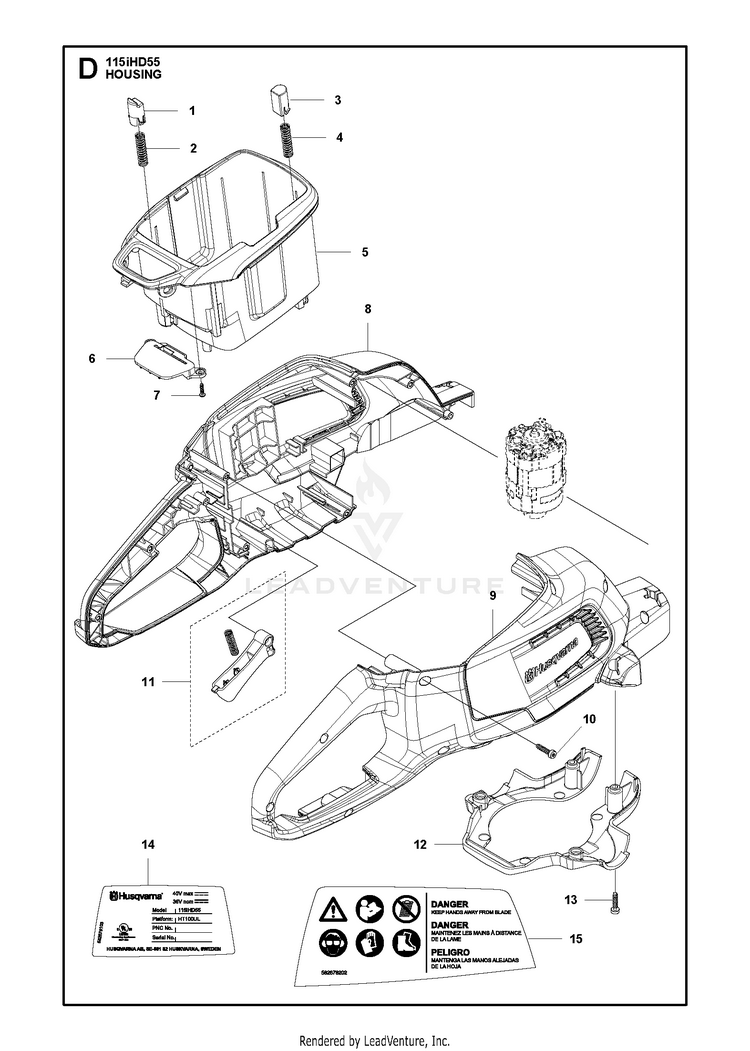

HOUSING

...
...
12
COVER BOTTOM HUS-585633901

...
14
DECAL RATING DECAL 115IHD55 HE HUS-582678103

...
6
BRACKET KEYPAD HUS-585635001

...
4
SPRING PUSH BUTTON HUS-585636601

...
10
SCREW ST4X16 HUS-585819002

...
7
SCREW ST3X8 HUS-585818901

...
15
DECAL WARNING DECAL 115IHD55 H HUS-582678202

...
9
NEEDS DESCRIPTION HUS-588145701

...
13
SCREW ST4X16 HUS-585819002

...
2
SPRING PUSH BUTTON HUS-585636201

...
8
HOUSING LEFT - HOT FOIL+PAINTI HUS-588145802

...
5
BATTERY BOX HUS-585634901

...
11

...
3
PUSH BUTTON FRONT HUS-585636001

...
1
PUSH BUTTON HUS-577996601
...
...
...
