Husqvarna 115 iHD55 - 967098601 (20170600001-20182199999) Hedge Trimmer

Model: 115 iHD55 967098601(20170600001-20182199999)

Save
Part Not Listed?Part Not Listed?

product name

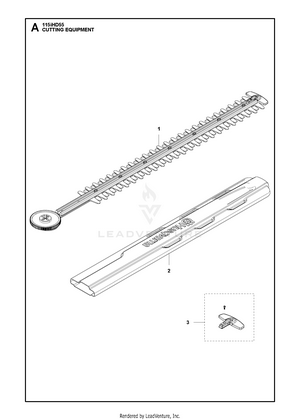

CUTTING EQUIPMENT

...
...
3
TIP PROTECTION KOMPL HUS-588760101

...
1
DRIVER ASSY US VERSION HUS-582569101

...
2
BLADE SLEEVE FOR US MARKET HUS-582492901

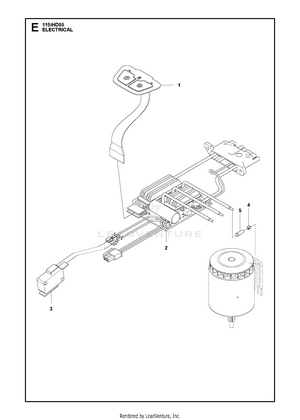

ELECTRICAL

...
...
4
NEEDS DESCRIPTION HUS-588259701

...
5
NEEDS DESCRIPTION HUS-588259801

...
1
KEYPAD ASSEMBLY HUS-599392401

...
2

...
3
MICRO SWITCH HUS-590808501

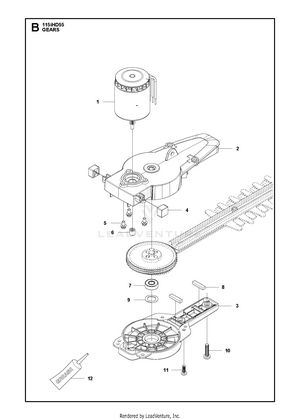

GEARS

...
...
12
GREASE 20G HEDGE TRIMMER GEAR 20g HUS-503989603

...
2
NEEDS DESCRIPTION HUS-589766701

...
4
SHOCK ABSORBING HUS-585818801

...
1
MOTOR BLDC 115IHD55 HUS-589605901


...
11
SCREW M4X12 HUS-585818701

...
6
NEEDLE BEARING HUS-585628301

...
7
BALL BEARING HUS-585635801

...
8
PAD DUSTPROOF HUS-585628201

...
3
COVER GEAR BOX HUS-582492601

...
9
SPRING WASHER HUS-588267701

...
10
SCREW M5X20 HUS-585818601

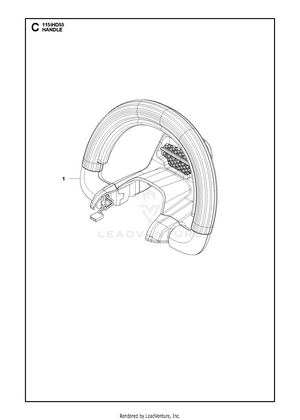

HANDLE

...
...
1
HANDLE ,FRONT HANDLE ASSEMBLY HUS-591426401

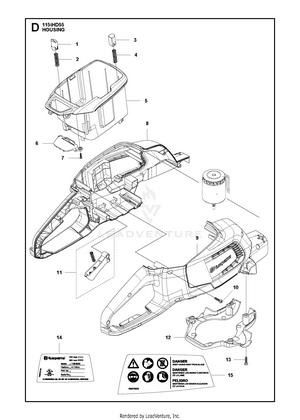

HOUSING

...
...
11

...
6
BRACKET KEYPAD HUS-585635001

...
13
SCREW ST4X16 HUS-585819002

...
4
SPRING PUSH BUTTON HUS-585636601

...
5
BATTERY BOX HUS-585634901

...
9
NEEDS DESCRIPTION HUS-588145701

...
3
PUSH BUTTON FRONT HUS-585636001

...
14
DECAL RATING DECAL 115IHD55 HE HUS-582678103

...
7
SCREW ST3X8 HUS-585818901

...
10
SCREW ST4X16 HUS-585819002

...
2
SPRING PUSH BUTTON HUS-585636201

...
12
COVER BOTTOM HUS-585633901

...
15
DECAL WARNING DECAL 115IHD55 H HUS-582678202

...
1
PUSH BUTTON HUS-577996601

...
8
HOUSING LEFT - HOT FOIL+PAINTI HUS-588145802
...
...
...
