Husqvarna 115 iHD45 - 967098301 (967098303) Hedge Trimmer

Model: 115 iHD45 - 967098301 (967098303)

Save
Part Not Listed?Part Not Listed?

product name

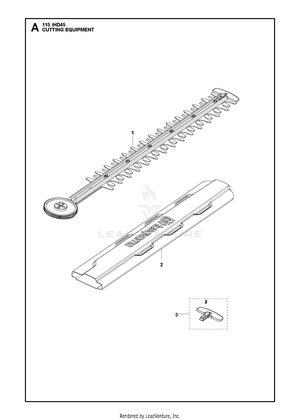

CUTTING EQUIPMENT

...
...
3
TIP PROTECTION KOMPL HUS-588760101


...
1
NEEDS DESCRIPTION HUS-590655101

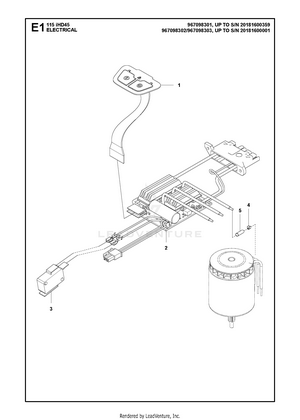

ELECTRICAL

...
...
3
MICRO SWITCH HUS-590808501

...
1
KEYPAD ASSEMBLY HUS-599392401

...
2

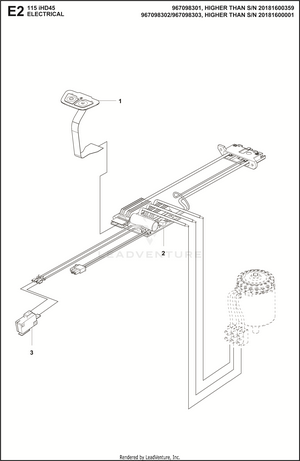

ELECTRICAL 2

...
...
2

...
1
KEYPAD ASSEMBLY HUS-599392401

...
3
MICRO SWITCH HUS-590808501

...
5
NEEDS DESCRIPTION HUS-588259801

...
4
NEEDS DESCRIPTION HUS-588259701

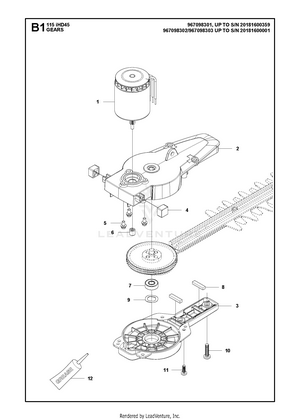

GEARS

...
...
2
NEEDS DESCRIPTION HUS-591368701

...
6
NEEDS DESCRIPTION HUS-586903002

...
8
PAD DUSTPROOF HUS-585628201

...
11
SCREW M4X12 HUS-585818701


...
12
GREASE 20G HEDGE TRIMMER GEAR 20g HUS-503989603

...
1
NEEDS DESCRIPTION HUS-590675201

...
10
SCREW M5X20 HUS-585818601

...
9
SPRING WASHER HUS-588267701

...
7
BALL BEARING HUS-585635801

...
4
SHOCK ABSORBING HUS-585818801

...
3
COVER GEAR BOX HUS-582492601

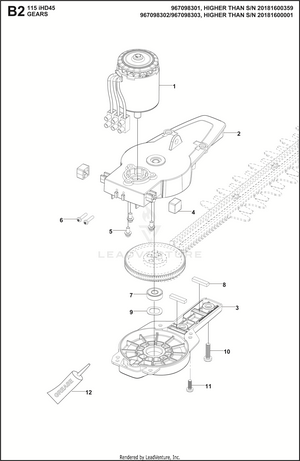

GEARS 2

...
...
6
NEEDLE BEARING HUS-585628301

...
9
SPRING WASHER HUS-588267701


...
10
SCREW M5X20 HUS-585818601

...
4
SHOCK ABSORBING HUS-585818801

...
11
SCREW M4X12 HUS-585818701

...
7
BALL BEARING HUS-585635801

...
3
COVER GEAR BOX HUS-582492601

...
1
MOTOR BLDC 115IHD55 HUS-589605901

...
8
PAD DUSTPROOF HUS-585628201

...
2
NEEDS DESCRIPTION HUS-589766701

...
12
GREASE 20G HEDGE TRIMMER GEAR 20g HUS-503989603

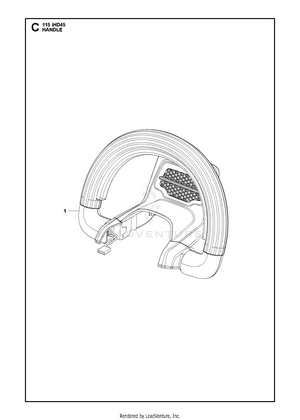

HANDLE

...
...
1
HANDLE ,FRONT HANDLE ASSEMBLY HUS-591426401

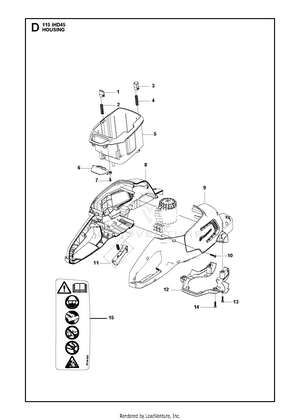

HOUSING

...
...
10
SCREW ST4X16 HUS-585819002

...
7
SCREW ST3X8 HUS-585818901

...

...
4
SPRING PUSH BUTTON HUS-585636601

...
1
PUSH BUTTON HUS-577996601

...
8
NEEDS DESCRIPTION HUS-588145803

...
3
PUSH BUTTON FRONT HUS-585636001

...
11
TRIGGER For 967098301 UP TO S/N 20181600359, 967098302/967098303 UP TO S/N 20181600001 HUS-588760501

...
11
TRIGGER For 967098301 HIGHER THAN S/N 20181600359, 967098302/967098303 HIGHER THAN S/N 20181600001 HUS-593352101

...
14
NEEDS DESCRIPTION HUS-591468201

...
9
NEEDS DESCRIPTION HUS-588145701

...
2
SPRING PUSH BUTTON HUS-585636201

...
6
BRACKET KEYPAD HUS-585635001

...
12
COVER BOTTOM HUS-585633901

...
5
BATTERY BOX HUS-585634901

...
13
NEEDS DESCRIPTION HUS-591468202
...
...
...
