Husqvarna 115 iHD45 - 967098301 (20180500001-20182200000) Hedge Trimmer

Model: 115 iHD45 967098301(20180500001-20182200000)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?

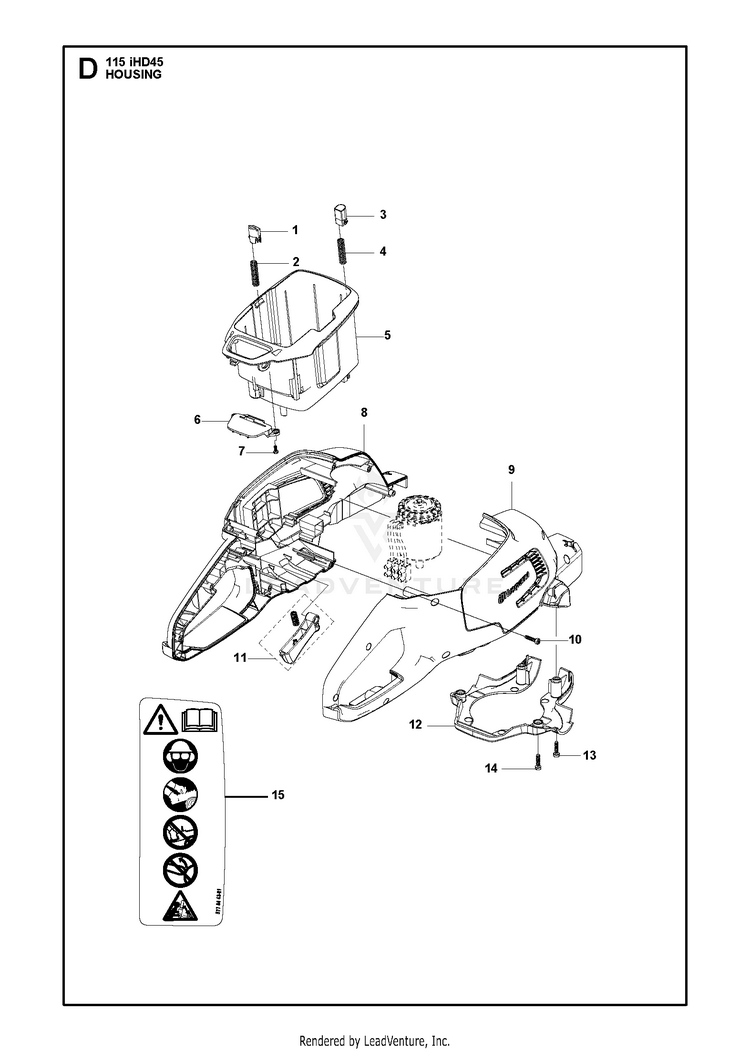

product name

HOUSING

...
...
8
NEEDS DESCRIPTION HUS-588145803
...
7
SCREW ST3X8 HUS-585818901
...
14
NEEDS DESCRIPTION HUS-591468201
...
5
BATTERY BOX HUS-585634901
...
12
COVER BOTTOM HUS-585633901
...
15
DECAL HUS-577844301
...
3
PUSH BUTTON FRONT HUS-585636001
...
2
SPRING PUSH BUTTON HUS-585636201
...
4
SPRING PUSH BUTTON HUS-585636601
...
6
BRACKET KEYPAD HUS-585635001
...
1
PUSH BUTTON HUS-577996601
...
11
TRIGGER HUS-593352101
...
9
NEEDS DESCRIPTION HUS-588145701
...
10
SCREW ST4X16 HUS-585819002
...
13
NEEDS DESCRIPTION HUS-591468202
...
...
...
...
...
