product name

Husqvarna 112 (2006-05) Trimmer/Edger

Model: 112 (2006-05)

Save Part Not Listed?
product name

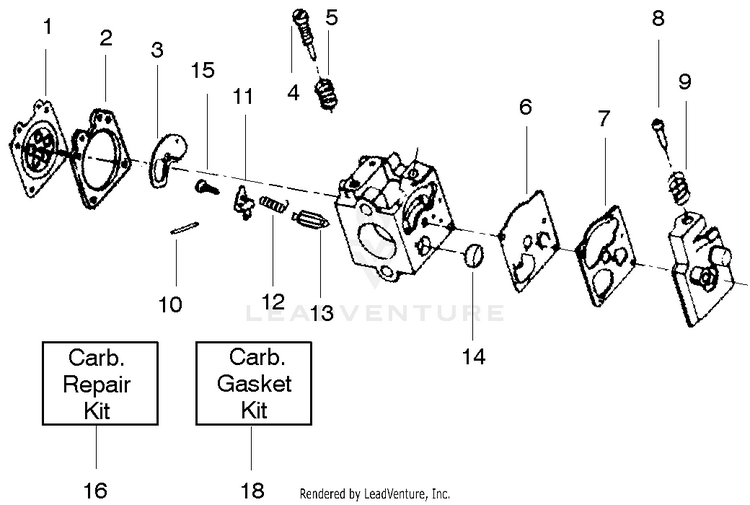

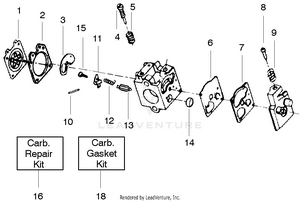

Carburetor

...
...
1
DIAPHRAGM HUS-503896701
...
2
Metering Diaphragm Gasket HUS-530035011
...
3
Circuit Plate Gasket HUS-530035211
...
4
Mixture Needle HUS-530035212
...
5
Mixture Needle Spring HUS-530035293
...
6
PUMP DIAPHRAGM HUS-504130807
...
7
GASKET HUS-504130906
...
8
Idle Speed Screw HUS-530035203
...
9
Idle Speed Spring HUS-530035121
...
10
FULCRUM PIN HUS-505520125
...
11
LEVER HUS-505520127
...
12
Metering Lever Spring HUS-530037330
...
13
Inlet Needle Valve HUS-530035016
...
14
Fuel Inlet Screen HUS-530035178
...
15
Metering Lever Pin Screw HUS-530035016
...
16
Carb. Kwik Repair Kit (Refer to Service Reference) HUS-530035264
...
17
Gasket Diaphragm Kit Walbro (WT391) HUS-530069844

Carburetor

...
...
1
REPAIR KIT K20-WAT These parts are illustrated for clarity. Order complete assembly. HUS-530035300
...
2
Limiter Cap HUS-530038404

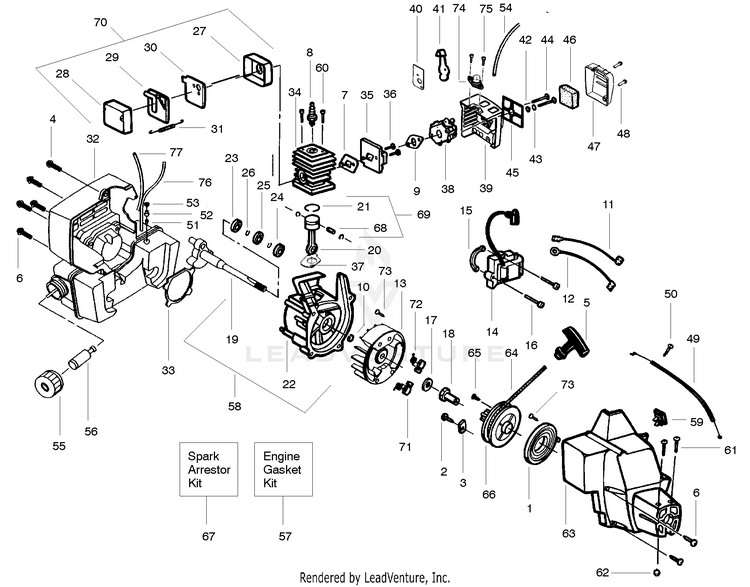

Engine

...
...
1
STARTER SPRING HUS-545008010
...
2
Screw HUS-530015775
...
3
Retainer HUS-530027523
...
4
Screw HUS-530015934
...
5
Starter Handle HUS-530027569
...
6
Screw HUS-530016386
...
7
Cylinder Gasket HUS-530019233
...
8
Spark Plug (RCJ-8Y) HUS-952030201
...
9
Gasket HUS-530019194
...
10
Retainer HUS-530015941
...
11
Lead Wire HUS-530014663
...
12
Ground Wire HUS-530014662
...
13
Assy-Flywheel HUS-530054115
...
14
Ignition Module HUS-530039163
...
15
Spacer HUS-530036145
...
16
Screw HUS-530015954
...
17
Washer HUS-530015828
...
18
Drive Coupling HUS-530027953
...
19
Crankshaft Ass'y. HUS-530014532
...
20
Connecting Rod HUS-530069615
...
21
Piston Ring HUS-530036404
...
22
Crankcase Ass'y. HUS-530014861
...
23
BEARING BALL 6001 HUS-738210101
...
24
Outer Bearing HUS-530032124
...
25
C'case Seal HUS-530019179
...
26
Retaining Ring HUS-530015945
...
27
Muffler Body HUS-530036578
...
28
Muffler Cover HUS-530036577
...
29
Muffler Baffle-Exit HUS-530038602
...
30
Muffler Baffle-First HUS-530036579
...
31
Spring-Muffler Old Style HUS-530016197
...
32
Shroud & Tank Assy. Type 1 HUS-530014852
...
32
Shroud & Tank Assy. Type 2 & 3 HUS-530047091
...
33
Gasket HUS-530-019181
...
34
CARB ADAPTOR KIT HUS-530069769
...
36
Screw HUS-530016014
...
37
Gasket HUS-530019223
...
38
Carburetor Type 1 (WA-215) HUS-530035308
...
38
CARBURETOR HUS-530071639
...
39
Air Box Type 1 HUS-530037390
...
39
Air Box Type 2 & 3 HUS-530037971
...
40
Choke Plate HUS-530037326
...
41
Choke Shutter HUS-530038102
...
42
Wave Washer HUS-530015254
...
43
Choke Spacer HUS-530015852
...
44
Screw HUS-530015887
...
45
Filter Plate HUS-530037413
...
46
Air Filter Foam HUS-530037331
...
47
Air Filter Cover HUS-530037292
...
48
Screw HUS-530015957
...
49
THROTTLE KIT HUS-530071548
...
50
Screw HUS-530015814
...
51
Check Valve HUS-530026119
...
52
Element HUS-530029717
...
53
Retainer HUS-530029696
...
54
Fuel Line-Prim./Carb HUS-530069571
...
55
Fuel Cap Ass'y. HUS-530014347
...
56
Assy-Fuel Pick-up HUS-530095646
...
57
Engine Gasket Kit (Incl. 7,9,33,37) HUS-530069616
...
58
C'case & C'shaft Assy. (Incl. 10,19,22-26) HUS-530014729
...
59
On/Off Switch HUS-530069572
...
60
Screw HUS-530015953
...
61
Screw HUS-530016072
...
62
Locknut HUS-530015768
...
63
Fan Housing HUS-530014921
...
64
Rope Kit HUS-530069232
...
65
Screw HUS-530016080
...
66
Kit-Pulley-Starter HUS-530071786
...
67
Spark Arrestor Kit HUS-530069380
...
68
Piston Pin Retainer HUS-530015162
...
69
Piston Kit (Incl. 21,68 & Pin) HUS-530069621
...
70
Muffler Kit HUS-530069660
...
71
Starter Dog HUS-530029939
...
72
Starter Spring HUS-530047570
...
73
Screw-Flywheel HUS-530015882
...
74
Primer Bulb Ass'y. Type 2 & 3 HUS-530038874
...
75
Screw HUS-530015780
...
76
Fuel Line-Prim./Tnk. HUS-530069216
...
77
Fuel Line-Carb/Tnk. HUS-530069247

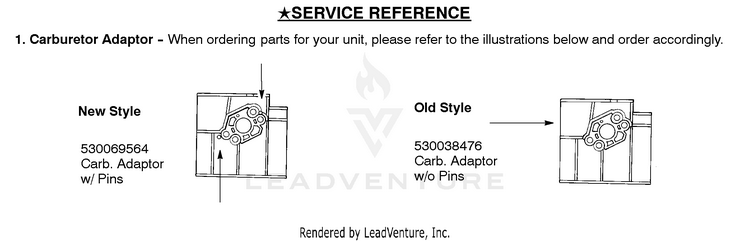

Service Reference

...
...
530069564
CARB ADAPTOR KIT HUS-530069769
...
530038476
CARB. ADAPTER HUS-530038476

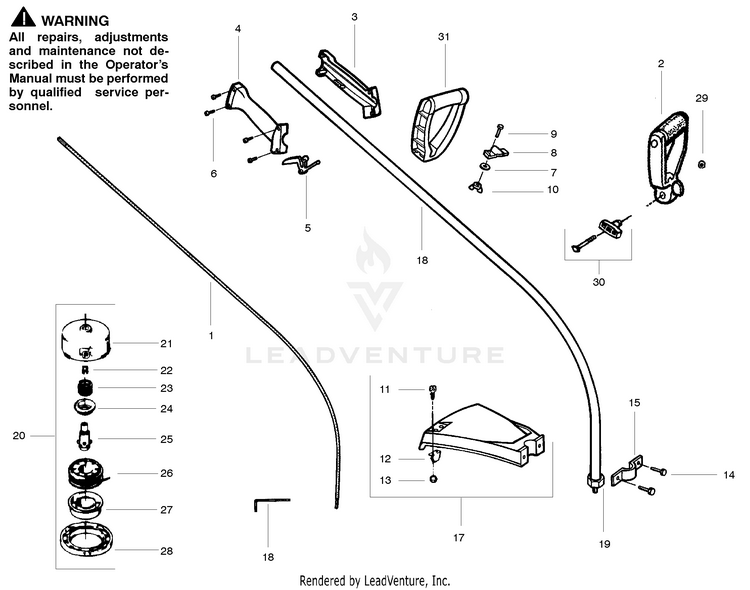

Shaft

...
...
1
Drive Shaft HUS-530095176
...
2
Handle HUS-530010957
...
3
Throttle Hsg. (Left) HUS-530036514
...
4
Throttle Hsg. (Right) HUS-530036515
...
5
Throttle Lever HUS-530036556
...
6
Screw HUS-530015957
...
7
Washer HUS-530092062
...
8
Clamp HUS-530094742
...
9
Bolt HUS-530015820
...
10
Wingnut HUS-530401992
...
11
Screw HUS-530015337
...
12
Line Limiter HUS-530094570
...
13
NUT HEX LOCK 10-24 HUS-530403094
...
14
Screw HUS-530016107
...
15
Bracket Shield HUS-530093653
...
16
Wrench-Hex ( 5/32") HUS-530031159
...
17
Shield Kit Ass’y. (Incl. 11-14) HUS-530069249
...
18
ASM-DR.SHAFT W/SHIELD HUS-530071371
...
19
Dust Cup HUS-530094543
...
20
Cutting Head Ass’y. (Incl. 21-28) HUS-952701574
...
21
ASSY-HUB W/LN SAVER HUS-530071295
...
22
Line Saver HUS-530093898
...
23
Spring HUS-530340007
...
24
Cap Spring HUS-530328929
...
25
Drive Gear HUS-530093897
...
26
Spool w/Line HUS-952701523
...
27
Release Button HUS-530401183
...
28
Cover HUS-530092133
...
29
Nut HUS-530015197
...
30
HANDLE KIT HUS-530069347
...
31
Assy-Handle-Assist HUS-530055699
...
31
Carton Contents Bag HUS-530047068
...
31
Operator Manual Type 2 HUS-530081794
...
31
Operator Manual Type 3 HUS-530083186
...
31
Shaft Warning Decal HUS-530047899
...
31
Instruction Decal HUS-530047450
