Husqvarna 10527 STE Snow Thrower

Model: 10527 STE

Back To Assemblies

Save Part Not Listed?
product name

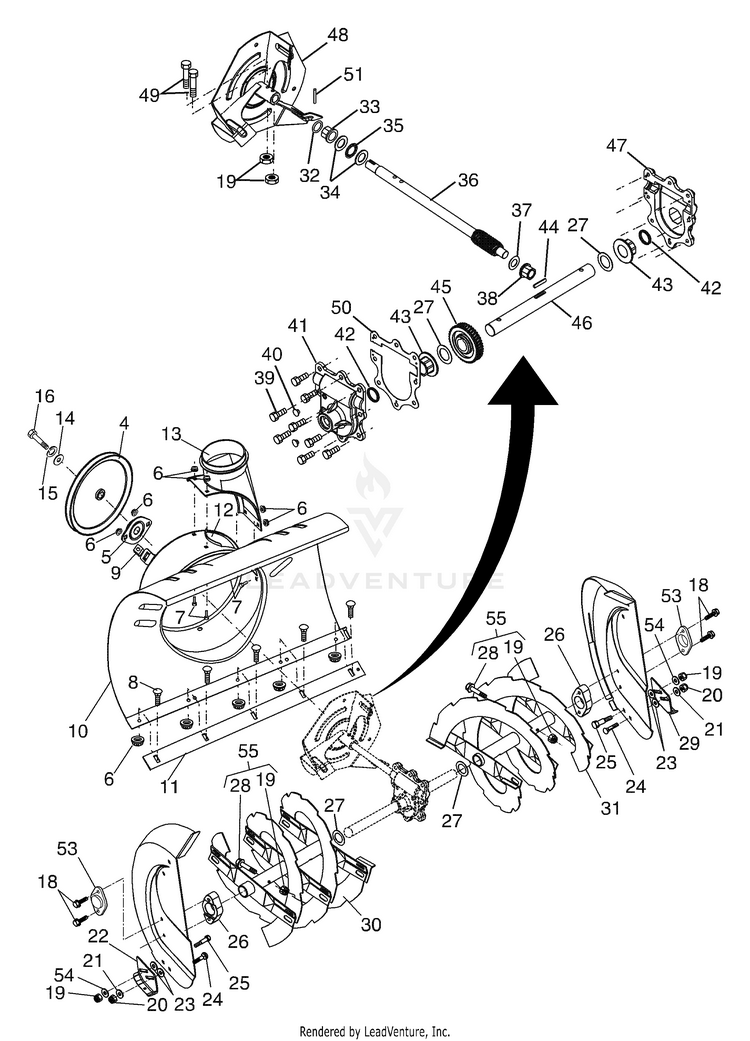

Auger Housing / Impeller Assembly

...
...
4
PULLEY.IMPELLER.SNOW HUS-532427071
...
5
BEARING FLANGE HUS-532188909
...
6
GSPW Hardware HUS-596039201
...
7
BOLT.CARRIAGE.5/16-18X HUS-532180355
...
8
BOLT ROUND HEAD SQUARE NECK BO HUS-596039401
...
9
NUT, CAGE 3/8-16 HUS-532178820
...
10
AUGER HOUSING WELDMENT HUS-532188167
...
11
BAR.SCRAPER.27.PNT.BLACK HUS-532404932
...
12
Brackets HUS-597433002
...
13
CHUTE.DISCHARGE.BASE HUS-585056901
...
14
WASHER, FLAT HUS-819111507
...
15
WASHER SPRING LOCK WASHER WITH HUS-596238801
...
16
Screw, Hex Head 5/16-18 x 3/4 HUS-874950512
...
18
SCREW, HEX HD 5/16X1 HUS-532179582
...
19
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
20
Hardware HUS-596040501
...
21
WASHER.20X8.5 HUS-532155415
...
22
PLATE.SKID.ADJ.RH.BLACK HUS-532436125
...
23
WASHER, NYLON FRICTION HUS-532179246
...
24
BOLT.CARR.SQNK.5/16-18UNC.X3/4 HUS-872110506
...
25
SHOULDER BOLT HUS-532185600
...
26
BEARING RETAINER, PLASTIC HUS-532188170
...
27
WASHER RACE BEARING THRUST HUS-532007396
...
28
BOLT SHEAR HX HD 1/4-20 CLEAR HUS-588077502
...
29
PLATE.SKID.ADJUSTABLE.LH.BLACK HUS-532174762
...
30
AUGER ASM 27" RH HUS-532192105
...
31
KIT.AUGER.27.LH.BB HUS-532435542
...
32
O-RING HUS-532174699
...
33
BUSHING, FLANGE 3/4 HUS-532407769
...
34
WASHER, THRUST 3/4 HUS-532174681
...
35
BEARING TRUST 3/4 NTA-1220 HUS-532174684
...
36
SHAFT, IMPELLER HUS-532407757
...
37
WASHER, THRUST 5/8 HUS-532174683
...
38
BUSHING.FLANGE.(.625X.75) HUS-532174686
...
39
BOLT.HEX.HD.WASHER.5/16-18X.75 HUS-532428867
...
40
PLUG.AUGER.GEAR.BOX.SNOW HUS-532086447
...
41
HOUSING.GEARBOX.RH.SNOW HUS-532174688
...
42
SEAL, OIL HUS-532174698
...
43
BUSHING FLANGE 1" HUS-532174701
...
44
KEY, SQUARE 1/4 X .875 HUS-532189282
...
45
Service Kit HUS-598831601
...
46
SHAFT, AUGER HUS-532174657
...
47
HOUSING.GEARBOX.LH(SERVICE) HUS-532407765
...
48
SERVICE KIT IMPELLER WELDMENT HUS-531167901
...
49
BOLT HEXAGON BOLT 1/4-20 X 1-5 HUS-596322101
...
50
GASKET.AUGER.GEARBOX HUS-532175311
...
51
PIN.ROLL.3/16 X 1" HUS-532001572
...
53
BEARING.BALL.AUGER.SHAFT HUS-532187925
...
54
WASHER HUS-819091214
...
55
1/4" SHEAR PIN KIT (Contains 6 each of Key Numbers 19 and 28) HUS-601001986
