Husqvarna 10527 STE Snow Thrower

Model: 10527 STE

Back To Assemblies

Save Part Not Listed?
product name

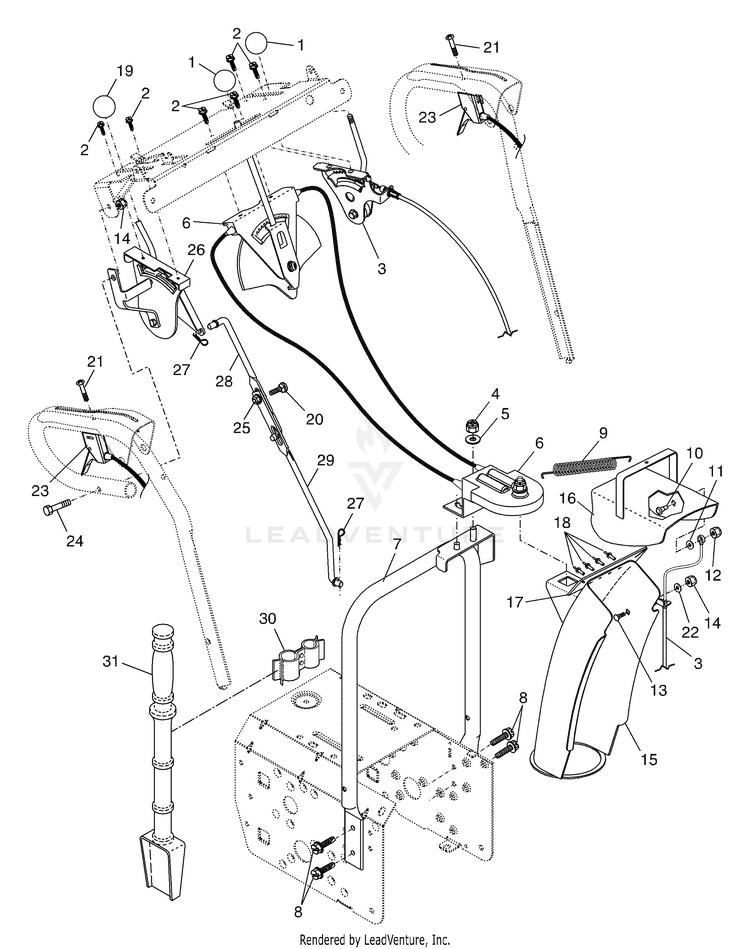

Control Panel / Discharge Chute

...
...
1
KNOB LEVER, BLACK HUS-532414280
...
2
SCREW #10-24 X 5/8 HUS-817501010
...
3
CONTROL.ASM.DEFLEC.BLK.BOWDEN HUS-587030801
...
4
Nuts HUS-596322601
...
5
WASHER PLAIN WASHER 3/8 X 0.08 HUS-596565301
...
6
CONTROL ASSY, CHUTE ROTATER HUS-532178659
...
7
SUPPORT.WELDMENT.ROTATOR.BLACK HUS-532443617
...
8
BOLT.HEX.HD.WASHER.5/16-18X.75 HUS-532428867
...
9
SPRING.DEFLECTOR.REM.CHUTE HUS-532184505
...
10
BOLT, SHOULDER HUS-532179829
...
11
WASHER, NYLON FRICTION HUS-532179246
...
12
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
13
Bolts HUS-596136401
...
14
Hardware HUS-596040501
...
15
DEFLECTOR ASSEMBLY RIVETED HUS-590518207
...
16
DEFLECTOR ASSEMBLY RIVETED HUS-590518207
...
17
SEAL.DEFLECTOR HUS-532420325
...
18
RIVET BLIND HUS-532128415
...
19
RP KNOB, SPEED CONTROL LEVER HUS-532183333
...
20
BOLT.CARR.SQNK.5/16-18UNC.X3/4 HUS-872110506
...
21
SCREW HUS-874041024
...
22
WASHER.20X8.5 HUS-532155415
...
23
CABLE.TRIGGER.CONTROL.ASM HUS-532421249
...
24
SCREW HUS-874780528
...
25
GSPW Hardware HUS-596039201
...
26
KIT.CONTROL.SPEED.SELECTOR.SNO HUS-532429667
...
27
SPRING RETAINER HUS-532169675
...
28
ROD, UPPER SPEED CONTROL HUS-532180445
...
29
ROD, LOWER SPEED CONTROL.SNOW HUS-532187716
...
30
CLAMP.ASM.CLEANOUT.TOOL.SNOW HUS-532192710
...
31
CLEAN OUT TOOL HUS-532192199
