Husqvarna 1000E, WEED N EDGE Type 1 (2006-09) Trimmer/Edger

Model: 1000E, WEED N EDGE Type 1 (2006-09)

Save Part Not Listed?
product name

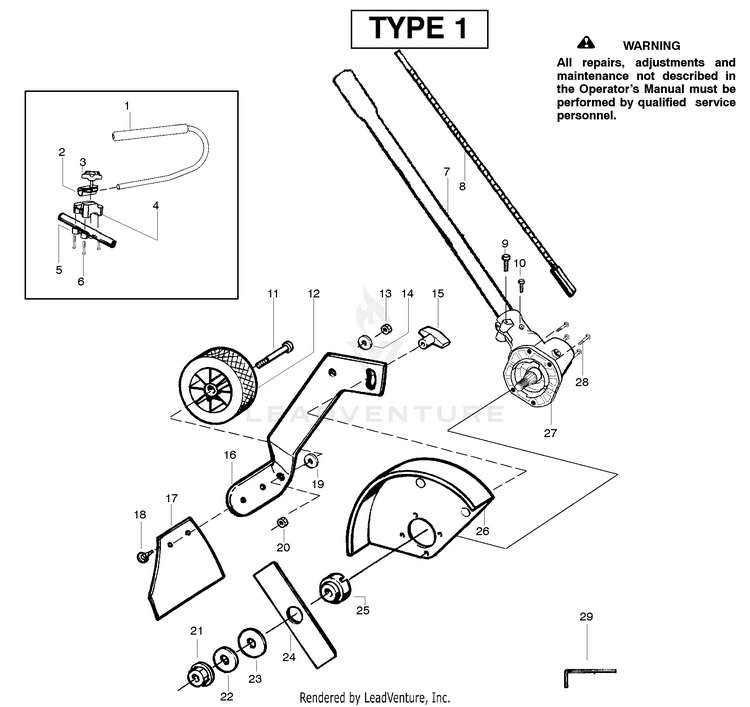

Cutting Equipment - Type 1

...
...
1
Kit-Handlebar (Incl. grip,cap,decal) HUS-530071394
...
2
KIT TUBE CLAMP J-BAR UPGRADE HUS-530071868
...
3
KIT TUBE CLAMP J-BAR UPGRADE HUS-530071868
...
4
KIT TUBE CLAMP J-BAR UPGRADE HUS-530071868
...
5
KIT TUBE CLAMP J-BAR UPGRADE (Incl. #6) HUS-530071868
...
6
Screw HUS-530015770
...
7
Assy.-Driveshaft HUS-530071863
...
8
Flexshaft-Split boom HUS-530096183
...
9
Screw HUS-530016014
...
10
Screw-Alignment HUS-530016224
...
11
Bolt-Shoulder Axle HUS-530015981
...
12
Wheel-4" (rubber) HUS-530095125
...
13
Locknut HUS-530015515
...
14
Washer HUS-530092062
...
15
Knob HUS-530092059
...
16
Bracket-Adj. Wheel HUS-530053009
...
17
Kit-Mud Flap (Incl.#18) HUS-530071251
...
18
Fastener-Mud Flap HUS-530053012
...
19
Washer HUS-530092062
...
20
Locknut HUS-530015515
...
21
Nut-Flange (L.H.) HUS-530015793
...
22
Washer-Belleville HUS-530016240
...
23
Washer-Flat HUS-530015792
...
24
Blade HUS-530053007
...
25
Dustcup HUS-530054623
...
26
Kit-Edger Guard HUS-530071930
...
27
Kit-Gearbox HUS-530071586
...
28
Screw HUS-530016312
...
29
Wrench-Hex (5/32") HUS-530031159
...
29
Manual Not Shown HUS-530163557
...
29
Hanger-Attachment Not Shown HUS-530150031
...
29
Decal-Shaft Warning Not Shown HUS-530056125
...
29
Decal-Guard Warning Not Shown HUS-545074501
