Huskee 31AM6BHE731 (2016) Snow Thrower

Model: 31AM6BHE731 (2016)

Back To Assemblies

Save Part Not Listed?
product name

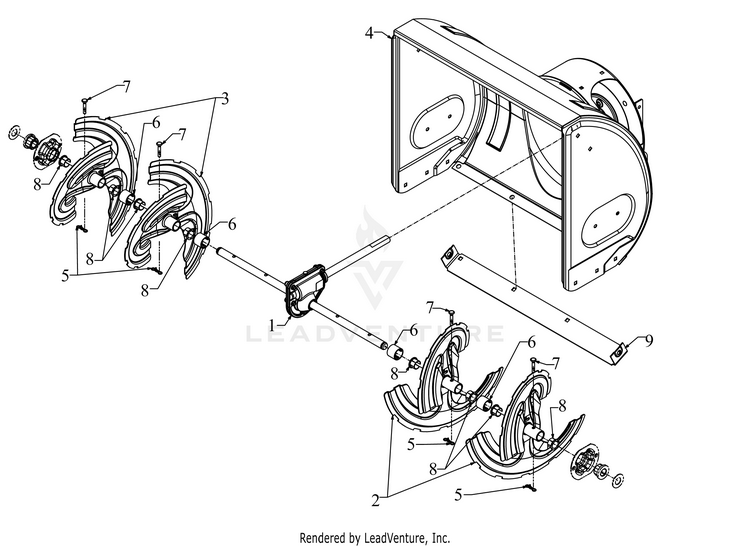

Auger Housing

...
...
1
24" GEARBOX ASSEMBLY (See Separate Breakdown) MTD-918-04171C
...
2
AUGER ASSEMBLY (LH) MTD-684-04107A-0637
...
3
AUGER ASSEMBLY (RH) MTD-684-04108A-0637
...
4
24" AUGER HOUSING ASSEMBLY (MTD RED) MTD-684-05202A-0638
...
5
BOW TIE COTTER PIN 1/4-5/16 MTD-714-04040
...
6
SPACER 1.25OD x .75ID X1.00 LG MTD-731-04870
...
7
SHEAR PIN .25 x 1.50 GR2 MTD-738-04124A
...
8
FLANGE BUSHING MTD-741-0493C
...
9
Shave Plate 24" MTD-790-00120-0637
