Huskee 31AE6C3H131 (2004) Snow Thrower

Model: 31AE6C3H131 (2004)

Back To Assemblies

Save Part Not Listed?
product name

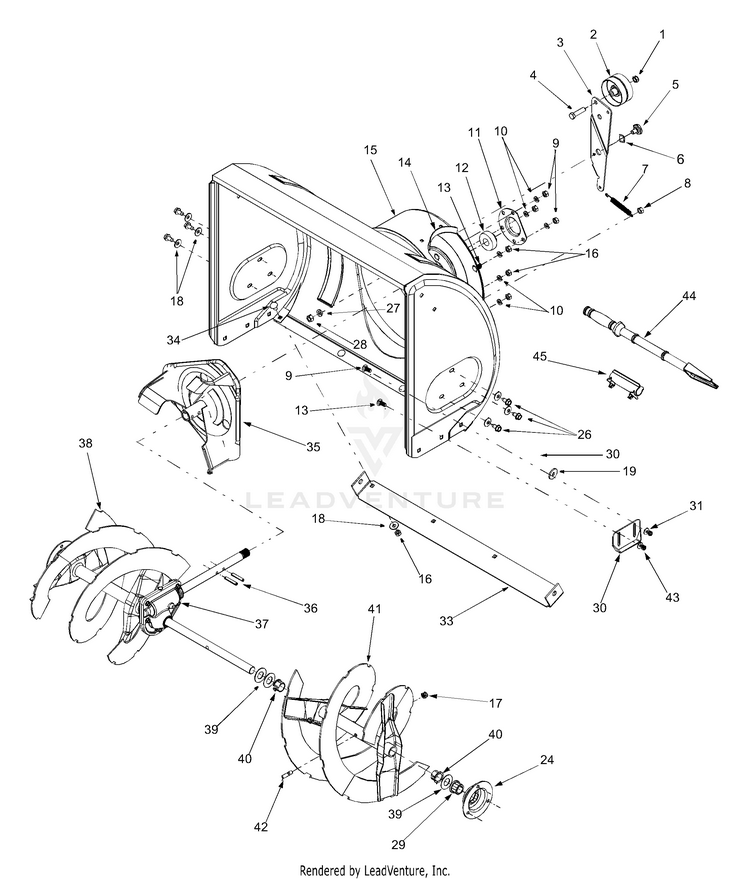

General Assembly

...
...
1
Lock Jam Nut 3/8-24 MTD-712-0116
...
2
Flat Idler MTD-756-0178
...
3
Auger Idler Brkt. MTD-984-0064-0637
...
4
Hex Cap Screw 3/8-24 x 1 MTD-710-0459A
...
5
Shoulder Screw MTD-738-0281
...
6
Wave Washer MTD-936-0167
...
7
Ext. Spring 3.6" Lg. MTD-932-0611
...
8
Hex L-Nut 5/16-18 Thd. MTD-712-3009
...
9
Carriage Bolt, 5/16-18 x 1.00 MTD-710-0276
...
10
Lock Wash. 5/16" I.D. MTD-936-0119
...
11
Bearing Housing MTD-05931A
...
12
Flange Ball Bearing MTD-941-0309
...
13
Carriage Bolt, 5/16-18 x .75 MTD-710-0451
...
14
Chute Reinforcement MTD-705-5226
...
15
30" HOUSING ASSEMBLY MTD-684-0055C
...
16
HEX NUT 5/16-18 MTD-712-3010
...
17
Lock Nut 5/16-18 MTD-712-0429
...
18
Belleville Washer MTD-736-0242
...
19
Flat Wshr, .344ID x 1.125 OD MTD-736-0231
...
24
Bearing Housing MTD-784-5618A-0637
...
26
Hex Screw 5/16-18 x .75 MTD-710-0726
...
27
Lock Washer 3/8 MTD-736-0169
...
28
Hex Nut 3/8-16 MTD-712-0798
...
29
Hex Flange Bearing MTD-941-0245
...
30
Slide Shoe MTD-784-5580
...
31
Bell Washer MTD-736-0242
...
32
HEX NUT 5/16-18 MTD-712-3010
...
33
Shave Plate: Auger 30" MTD-790-00119-0637
...
34
Carriage Bolt 5/16-18 x .75 MTD-710-0451
...
35
12" IMPELLER (3 BLADE) (POWDER BLACK) MTD-684-06276-0637
...
36
Pin MTD-715-0114
...
37
Gear Assembly: Auger 30" MTD-918-0417B
...
38
Spiral Assembly: RH 30" MTD-684-04186-0637
...
39
Flat Washer MTD-736-0188
...
40
FLANGE BUSHING MTD-741-0493C
...
41
30" SPIRAL ASSEMBLY (LH) (POWDER BLACK) MTD-684-04187-0637
...
42
Shear Bolt 5/16-18 x 1.5 MTD-710-0890A
...
43
Hex L-Nut 5/16-18 Thd. MTD-712-3009
...
44
Snow Removal Tool MTD-931-2643
...
45
CLEANOUT TOOL MOUNTING CLIP MTD-731-11421
