Huskee 31AE663G131 (2001) Snow Thrower

Model: 31AE663G131 (2001)

Back To Assemblies

Save Part Not Listed?
product name

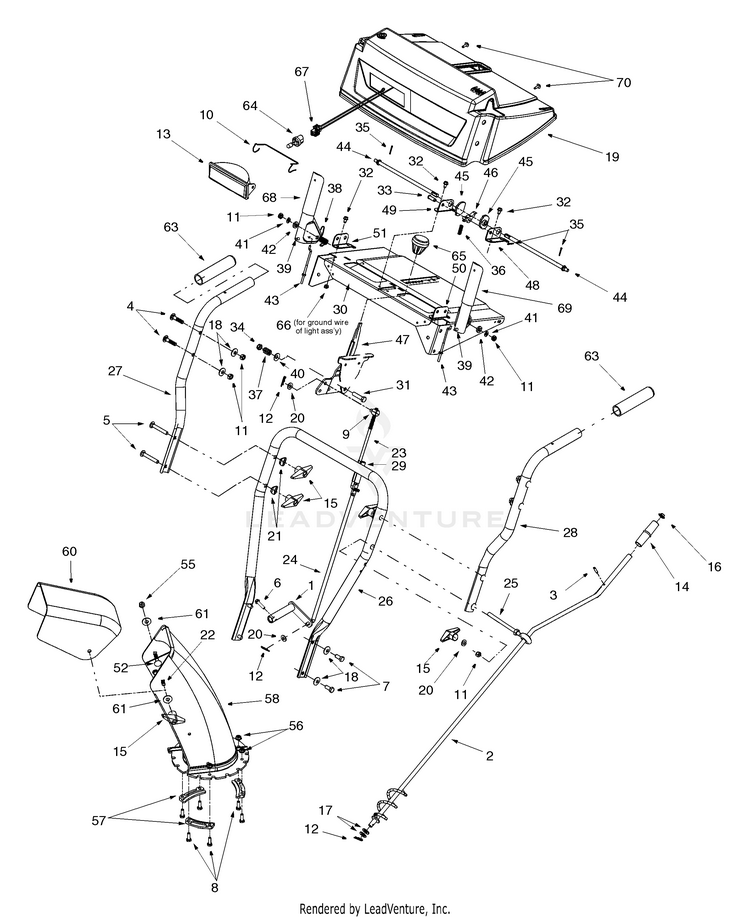

Handle & Controls Assembly

...
...
1
SHIFT ARM ASSEMBLY (POWDER BLACK) MTD-684-0008A-0637
...
2
Chute Crank Ass'y MTD-984-0022
...
3
Rolled Pin, 1/8 x .63 MTD-915-0138
...
4
Carriage Bolt, 5/16-18 x 1.5 MTD-710-0262
...
5
Carrriage Bolt, 5/16-18 2.50 MTD-710-0572
...
6
Self Tapping Screw, 1/4-20 x 1 MTD-710-0788
...
7
SCREW 5/16-18 x .75 GR5 MTD-710-3008
...
8
Hex Cap Screw, 1/4-20 x .75 MTD-710-3015
...
9
Engagement Ferru MTD-911-0677
...
10
Headlamp Retainer MTD-747-1136
...
11
HEX NUT 5/16-18 MTD-712-3010
...
12
Internal Cotter Pin MTD-714-0104
...
13
Lens/Lamp Assembly Housing MTD-925-1672
...
14
Chute Crank Knob MTD-720-0201A
...
15
Wing Knob, 5/16-18 MTD-720-0284
...
16
Push Cap, 3/8 MTD-726-0100
...
17
Flat Washer, .375 x .738 x .063 MTD-736-0185
...
18
Bell Washer, .34 x .872 MTD-736-0242
...
19
HANDLE PANEL MTD-731-1341A
...
20
FLAT WASHER MTD-736-0275
...
21
Saddle Washer, .32 x .93 MTD-736-0451
...
22
Carriage Screw, 5/16-18 x 1 MTD-710-0276
...
23
SHIFT ROD MTD-747-0620A
...
24
LOWER SHIFT ROD MTD-747-0621
...
25
EYEBOLT MTD-747-0697
...
xx
Eyebolt Grommet (Not Shown) MTD-735-0234
...
26
LOWER HANDLE MTD-749-0951A
...
27
UPPER HANDLE (RH) MTD-749-0952A
...
28
UPPER HANDLE (LH) MTD-749-0953A
...
29
Rod-Clutch Lock MTD-950-0963
...
30
HANDLE PANEL ASSEMBLY MTD-684-0103A
...
31
Hex Cap Screw, 3/8-24 x 1.5 MTD-710-0459A
...
32
Self Tapping Screw, 1/4-20 x .5 MTD-710-0599
...
33
Clevis Pin MTD-711-0653
...
34
Jam Nut, 3/8-24 MTD-712-0116
...
35
Cotter Pin, 3/32 x .75 MTD-714-0507
...
36
Compression Spring, .36 x 1.0 MTD-732-0145
...
37
Comp. Spring, .39 x .6 x .88 MTD-732-0193
...
38
Torsion Spring, .44 x .8 MTD-732-0746
...
39
Rubber Bumper MTD-735-0199A
...
40
Bell Washer, .401 x .87 x .063 MTD-736-0105
...
41
Lock Wash. 5/16" I.D. MTD-936-0119
...
42
Special Washer, .35 x .72 x .13 MTD-736-0509
...
43
Cable "Z" Fitting MTD-946-0778
...
44
Cam Rod MTD-747-0877
...
45
Cam Handle Lock MTD-748-0362
...
46
Handle Lock Pawl MTD-948-0363
...
47
KIT-SHIFT HANDLE:S MTD-753-05395
...
48
HANDLE BRACKET (LH) MTD-784-5679-0637
...
49
Brkt., Handle Support - RH MTD-784-5680-0637
...
50
LH Handle Support Bracket MTD-784-5681
...
51
Brkt., Handle Support - RH MTD-784-5682-0637
...
52
Carriage Bolt, 5/16-18 x .75 MTD-710-0451
...
?53
SCREW 5/16-18 x 1.5 LG MTD-710-0805A
...
?54
Screw, 1/4-14 x .625 MTD-710-0896
...
55
Hex Lock Nut, 5/16-18 MTD-712-0429
...
56
LOCK NUT 1/4 MTD-912-3027
...
57
Lower Chute Flange Keeper MTD-731-0851A
...
58
Lower Chute MTD-731-1300E
...
?59
Chute Tilt Cable Guide MTD-731-1313C
...
60
UPPER REMOTE CHUTE WITH LABEL MTD-731-04427B
...
61
Washer, 5/16 MTD-736-0159
...
?62
SPECIAL WASHER MTD-736-0506A
...
63
Handle Grip MTD-720-0274
...
64
Lamp MTD-925-1658
...
65
Knob MTD-920-0232
...
66
Hex Sems Nut, 1/4-20 MTD-712-0271
...
67
Halogen Light Harness MTD-929-0059
...
68
HANDLE-ENGAGEMENT (RH) MTD-684-0036A
...
69
LH Engagement Handle Ass'y MTD-684-0059
...
70
Special Screw, #10-16 x .625 MTD-710-04669
