Huskee 31AE643G131 (2003) Snow Thrower

Model: 31AE643G131 (2003)

Back To Assemblies

Save Part Not Listed?
product name

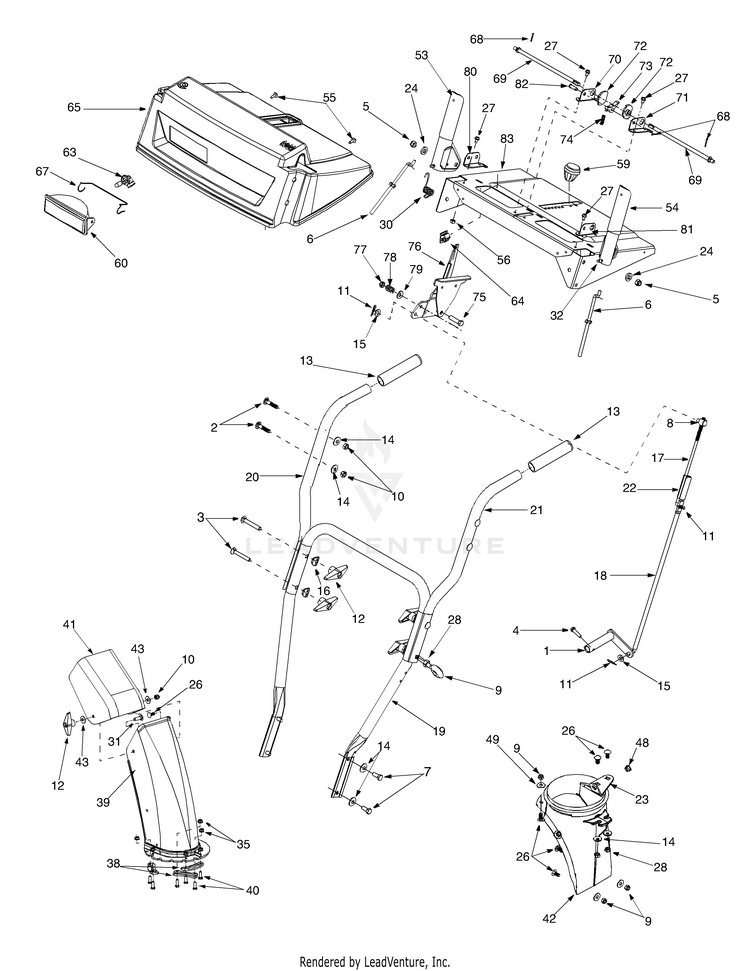

Handle Assembly

...
...
1
SHIFT ARM ASSEMBLY (POWDER BLACK) MTD-684-0008A-0637
...
2
CARRIAGE BOLT 5/16-18 x 1.75 MTD-710-0458
...
3
Carrriage Bolt, 5/16-18 2.50 MTD-710-0572
...
4
TT Screw 1/4-20 x 1" MTD-710-0788
...
5
Hex Lock Nut 5/16-18 MTD-712-0429
...
6
Cable "Z" Fitting MTD-946-0778
...
7
Hex Screw 5/16-18 x .75" MTD-710-1880
...
8
Engagement Ferru MTD-911-0677
...
9
EYEBOLT MTD-747-0697
...
9
Grommet Only Not shown MTD-735-0234
...
10
Hex L-Nut 5/16-18 Thd. MTD-712-3009
...
11
Cotter Pin MTD-714-0104
...
12
Handle Knob MTD-720-0284
...
13
Grip MTD-720-0274
...
14
Belleville Washer MTD-736-0242
...
15
FLAT WASHER MTD-736-0275
...
16
Saddle Washer MTD-736-0451
...
17
SHIFT ROD MTD-747-0620A
...
18
LOWER SHIFT ROD MTD-747-0621
...
19
LOWER HANDLE MTD-749-0951A
...
20
UPPER HANDLE (RH) MTD-749-0952A
...
21
UPPER HANDLE (LH) MTD-749-0953A
...
22
Rod-Clutch Lock MTD-950-0963
...
23
Chute Crank Bracket MTD-784-5647-0637
...
24
Washer .72 OD x .135 ID MTD-736-0509
...
25
Carriage Bolt: 5/16-18 x 1.5" MTD-710-0262
...
26
Carriage Bolt: 5.16-18 x .750" MTD-710-0451
...
27
TT Screw: 1/4-20 x 0.5" MTD-710-0599
...
28
HEX NUT 5/16-18 MTD-712-3010
...
30
Torsion Spring MTD-732-0746
...
31
Carriage Screws 5/16-18 x 1.0 MTD-710-0276
...
32
Rubber Bumper MTD-735-0199A
...
35
LOCK NUT 1/4 MTD-912-3027
...
38
Chute Flange Keeper MTD-731-0851A
...
39
Lower Chute MTD-731-1300E
...
40
Hex Cap Screw 1/4-20 x .75 MTD-710-3015
...
41
UPPER CHUTE (W/LBL MANUAL TILT) MTD-731-04426C
...
43
5/16 Washer MTD-736-0159
...
47
Chute Deflector Cable w/ Clip MTD-946-0901
...
48
BUSHING .380 ID MTD-941-0475
...
49
5/16 Washer MTD-736-0159
...
53
HANDLE-ENGAGEMENT (RH) MTD-684-0036A
...
54
HANDLE-ENGAGEMENT (LH) MTD-684-0037B
...
55
Special Screw, #10-16 x .625 MTD-710-04669
...
56
Hex Sems Nut: 1/4-20 MTD-712-0271
...
57
HEX NUT MTD-712-0693
...
59
Knob MTD-920-0232
...
60
Lens/Lamp Assembly Housing MTD-925-1672
...
63
Lamp MTD-925-1658
...
64
CLAMP-MTG MTD-726-0152
...
65
HANDLE PANEL STYLE 3 MTD-731-04144
...
67
Headlight Retainer MTD-747-1136
...
68
Cotter Pin: 3/32 x .75 MTD-714-0507
...
69
Cam Rod MTD-747-0877
...
70
Brkt., Handle Support - RH MTD-784-5680-0637
...
71
HANDLE BRACKET (LH) MTD-784-5679-0637
...
72
Cam Handle Lock MTD-748-0362
...
73
Handle Lock Pawl MTD-948-0363
...
74
Compression Spring: .36 x 1.0 MTD-732-0145
...
75
Hex Cap Screw: 3/8-24 x 1.5 MTD-710-0459A
...
76
KIT-SHIFT HANDLE:S MTD-753-05395
...
77
Jam Nut, 3/8-24 MTD-712-0116
...
78
Comp. Spring: .39 x .6 x .88 MTD-732-0193
...
79
Bell Washer MTD-736-0105
...
80
Brkt., Handle Support - RH MTD-784-5682-0637
...
81
LH Handle Support Bracket MTD-784-5681
...
82
Clevis Pin MTD-711-0653
...
83
HANDLE PANEL ASSEMBLY MTD-684-0103A
