Huskee 14AR807P131 (2001) Garden Tractor

Model: 14AR807P131 (2001)

Back To Assemblies

Save Part Not Listed?
product name

PTO Electric

...
...
1
Steering Support Bracket MTD-783-04612-0637
...
2
PTO Belt (Models w/ 46-inch deck) MTD-954-0476
...
xx
PTO Belt (50-inch Decks) (Models w/ 50-inch deck) MTD-954-0475
...
3
Electric PTO Clutch MTD-917-1709
...
3
ENGINE PULLEY MTD-756-0639A
...
4
CLUTCH BRACKET MTD-783-1003-0637
...
5
Hex Cap Screw, 3/8-16 x 2.5 MTD-710-0859
...
6
SCREW 5/16-18 x .875 GR5 HXFLG HD MTD-710-1238A
...
7
Flange Lock Nut 3/8-16 MTD-912-0431
...
8
Extension Spring, .62 x 5.62 MTD-732-0978
...
9
HEX FLANGE NUT MTD-712-3004A
...
10
Hex Cap Screw, 5/16-18 x 1.75 MTD-710-3180
...
11
HEX NUT 5/16-18 MTD-712-3010
...
12
IDLER BRACKET ASSEMBLY MTD-683-0294
...
13
Shoulder Bolt MTD-938-3056
...
14
Hex Cap Screw, 3/8-16 x 2.0 MTD-710-3144
...
15
Hex Cap Screw, 5/16-18 x .625 MTD-710-3025
...
16
Shld. Spacer .445" I.D. MTD-938-0785
...
17
Lock Washer, 7/16 MTD-736-0171
...
18
Screw, Hx. Hd., 7/16-20 x 3.25 MTD-710-3157A
...
19
BATTERY MTD-925-1707D
...
20
SCREW 1/4-20 x .620 GR5 MTD-710-0751
...
21
Hex Sems Nut, 1/4-20 MTD-712-0271
...
22
WING NUT 1/4-20 MTD-712-3087
...
23
Solenoid MTD-925-1426A
...
24
Self Tapping Screw, 1/4-20 x .5 MTD-710-0599
...
25
Lock Washer, 1/4 MTD-736-0222
...
26
UPPER HITCH PLATE MTD-783-1033A
...
27
SPACER .385ID x 1.54" MTD-748-0415B
...
28
Fl-Idler Pulley 3.5" O.D. MTD-756-0627D
...
29
BATTERY TRAY MTD-783-0349
...
30
Flange Lock Nut, 7/16-20 MTD-712-0459
...
31
DECK UP STOP BRACKET MTD-783-04467-0637
...
32
Self Tapping Screw, 5/16-18 x .625 MTD-710-0604A
...
33
Compression Spring MTD-732-3080A
...
34
BATTERY STRAP MTD-723-0444
...
35
Shoulder Screw, .625 x .5, 7/16-20 MTD-738-1020
...
36
Bell Washer, .45 x 1.0 x .062 MTD-736-0407
...
37
Shoulder Screw, 1/4-20, .25 x .15 MTD-738-1132
...
38
Flat Washer, .45 x 1.25 x .164 MTD-736-0322

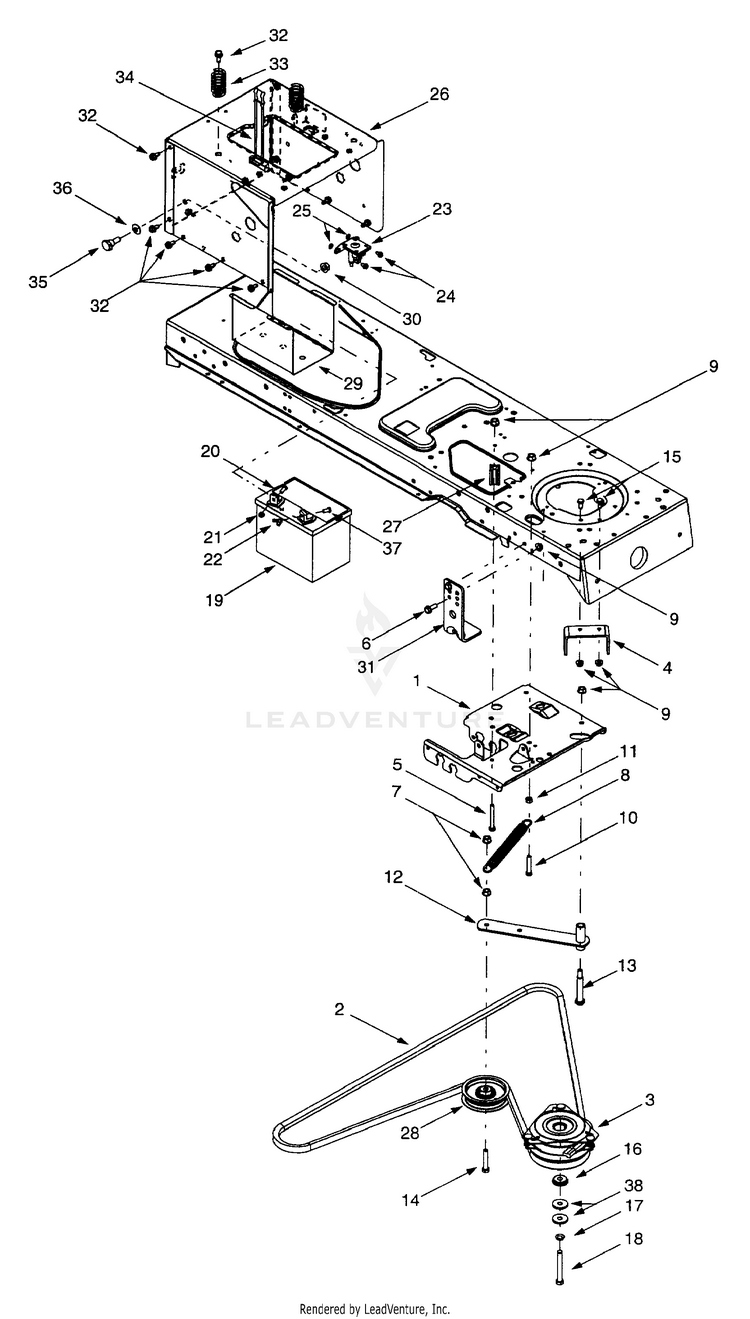

Schematic Image Zoomed
