Huskee 13CS608H731 (2004) Lawn Tractor

Model: 13CS608H731 (2004)

Back To Assemblies

Save Part Not Listed?
product name

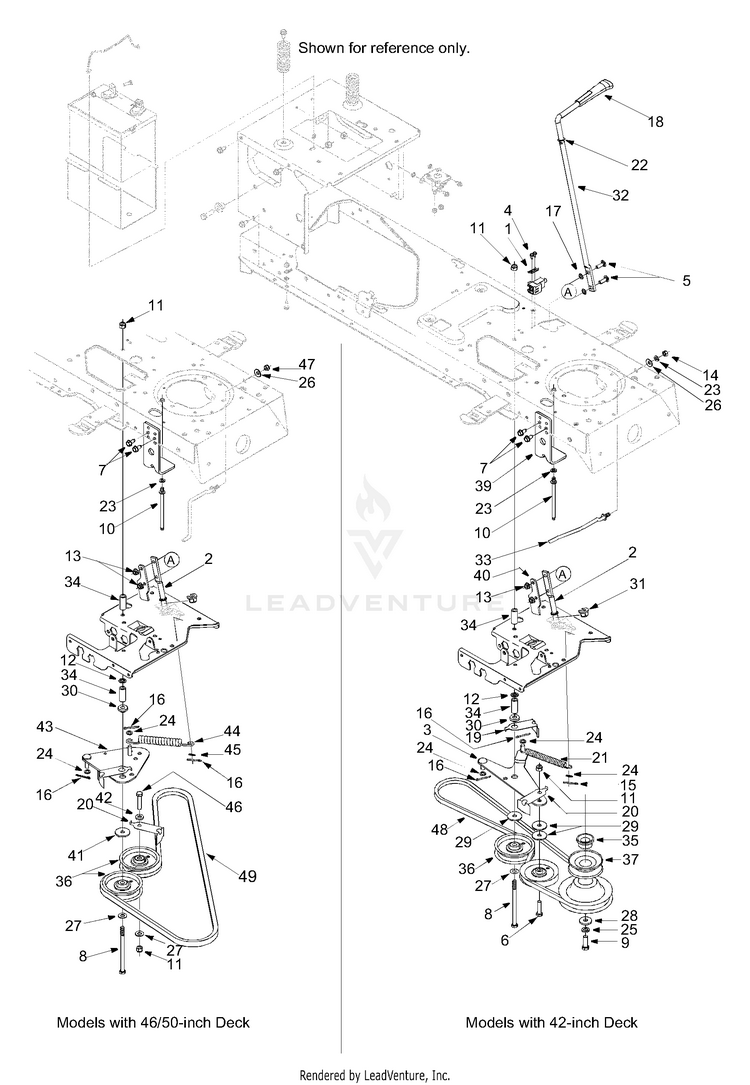

PTO Manual, Battery, Frame

...
...
1
Switch Plate MTD-17962
...
2
ENGAGEMENT LEVER ASSEMBLY MTD-647-0064
...
3
ENGAGEMENT PLATE ASSEMBLY MTD-683-0450
...
4
HEX SCREW AB-TAP #10-16 x 0.500 MTD-910-0224
...
5
Carriage Screw: Special MTD-710-0276
...
6
Hex Bolt 3/8-16 x 1.5 MTD-710-0520
...
7
AB Screw 5/16-12 0.75 MTD-710-0726
...
8
SCREW 3/8-16 x 5.5" GR5 MTD-710-0831
...
9
Hex Bolt 7/16-20 x 1.25 MTD-710-3029
...
10
Belt Guard Pin MTD-711-1044A
...
11
Lock Nut MTD-712-0130
...
12
Push Nut MTD-712-0229
...
13
HEX FLANGE NUT MTD-712-3004A
...
14
HEX NUT 5/16-18 MTD-712-3010
...
15
Cotter Pin MTD-714-0104
...
16
Cotter Pin MTD-714-0470
...
17
Speed Nut MTD-726-0201
...
18
PTO KNOB MTD-731-2111B
...
19
BELT GUARD MTD-732-0991A
...
20
Belt Guard MTD-732-1013A
...
21
Extension Spring MTD-732-1170
...
22
Flat Washer MTD-736-0108
...
23
Lock Wash. 5/16" I.D. MTD-936-0119
...
24
Flat Washer MTD-736-0140
...
25
Lock Washer MTD-736-0171
...
26
Bell Washer MTD-736-0242
...
27
Flat Washer MTD-736-0300
...
28
Flat Washer MTD-736-0322
...
29
Flat Washer MTD-736-3039
...
30
Spacer MTD-738-0372B
...
31
Hex Split Flange Bearing MTD-741-0708
...
32
PTO ENGAGEMENT HANDLE MTD-747-1112D-0637
...
33
BELT KEEPER ROD MTD-747-1286A
...
34
SPACER .385ID x 1.54" MTD-748-0415B
...
35
Spacer MTD-750-0956
...
36
Fl-Idler Pulley 3.5" O.D. MTD-756-0627D
...
37
Engine Pulley 42" deck 42" deck MTD-756-0982B
...
37
ENGINE PULLEY:3.39 x 6.1 46/50" decks MTD-756-04142
...
38
Idler Pulley MTD-756-1208
...
39
DECK UP STOP BRACKET MTD-783-04467
...
40
Bracket: Stop MTD-783-0744A
...
41
Flat Washer MTD-736-0227
...
42
Flat Washer MTD-736-3010
...
43
Engagement Plate Assembly MTD-683-0302
...
44
Extension Spring MTD-732-0944
...
45
FLAT WASHER MTD-736-0275
...
46
Hex Bolt 3/8-16 x 1.75 MTD-710-0347
...
47
Hex Lock Nut 5/16-18 MTD-712-0429
...
48
PTO Belt 42'' Deck MTD-954-0497
...
49
V Belt 46'' Deck Sec B x 68.24" 46'' Deck Sec B x 68.24" MTD-754-04064
...
49
V-BELT A-SEC x 67.2'' 46'' Deck Sec B x 67" models 13AS, 13CS, 13AQ MTD-954-0486A
...
xx
BATTERY TRAY MTD-783-0349
...
xx
BATTERY MTD-925-1707D
...
xx
Carriage Screw MTD-710-0703
...
xx
Battery Holddown rod MTD-747-04121A
...
xx
Sems Nut MTD-712-0271
...
xx
SPR:EXTN:.50 DIA X 5.0 LG Not shown MTD-732-04197
