Huskee 13CS608H731 (2004) Lawn Tractor

Model: 13CS608H731 (2004)

Back To Assemblies

Save Part Not Listed?
product name

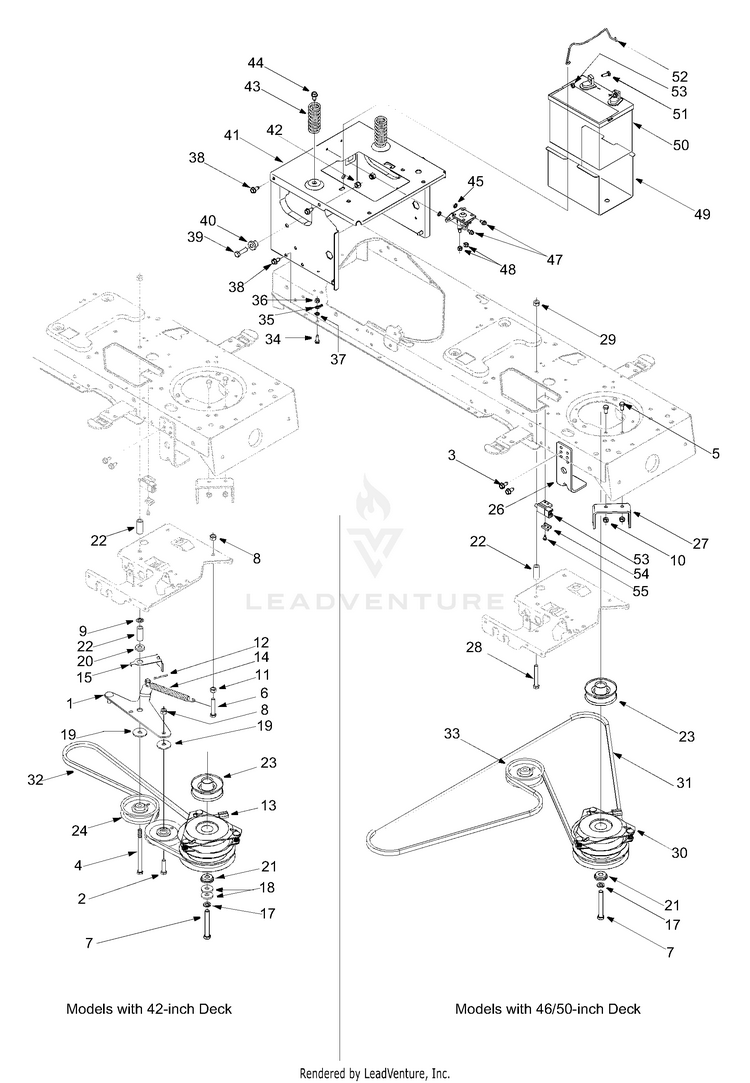

PTO Electric, Battery, Frame

...
...
1
ENGAGEMENT PLATE ASSEMBLY MTD-683-0450
...
2
Hex Bolt 3/8-16 x 1.5 MTD-710-0520
...
3
AB Screw 5/16-12 x 0.75 MTD-710-0726
...
4
SCREW 3/8-16 x 5.5" GR5 MTD-710-0831
...
5
Hex Bolt 5/16-18 x 0.625 MTD-710-3025
...
6
Hex Bolt 3/8-16 x 2.0 MTD-710-3144
...
7
Screw, Hx. Hd., 7/16-20 x 3.25 MTD-710-3157A
...
8
Lock Nut 3/8-16 MTD-712-0130
...
9
Push Nut MTD-712-0229
...
10
Hex Lock Nut 5/16-18 MTD-712-0429
...
11
HEX NUT 3/8-16 GR5 MTD-712-3017
...
12
Cotter Pin MTD-714-0470
...
13
Electric PTO Clutch MTD-917-1708
...
14
EXTENSION SPRING MTD-932-0384
...
15
BELT GUARD MTD-732-0991A
...
16
Flat Washer MTD-736-0140
...
17
Lock Washer MTD-736-0171
...
18
Flat Washer MTD-736-0322
...
19
Flat Washer MTD-736-3039
...
20
Shoulder Spacer MTD-738-0372B
...
21
Shld. Spacer .445" I.D. MTD-938-0785
...
22
SPACER .385ID x 1.54" MTD-748-0415B
...
23
Engine Pulley MTD-756-0407B
...
24
Fl-Idler Pulley 3.5" O.D. MTD-756-0627D
...
25
Idler Pulley MTD-756-1208
...
26
DECK UP STOP BRACKET MTD-783-04467
...
27
CLUTCH BRACKET MTD-783-1003-0637
...
28
Hex Bolt 3/8-16 x 2.5 MTD-710-0859
...
29
Lock Nut MTD-712-0130
...
30
Clutch: Electric PTO MTD-917-04080
...
31
V-Belt Type A Sec x 118.20 MTD-954-04033A
...
32
PTO Belt MTD-954-0497
...
33
Pulley MTD-756-1229
...
34
TT Screw 1/4-20 x 0.75 MTD-710-0642
...
35
Ground Wire (For reference only) MTD-NA
...
36
Hex Lock Nut 1/4-20 MTD-712-0324
...
37
SHOULDER SCREW .498 DIA x .340 MTD-738-0143
...
38
AB Screw 5/16-12 MTD-710-0726
...
39
Hex Bolt 3/8-16 x 1.25 MTD-710-3005
...
40
Shoulder Spacer MTD-738-04058
...
41
SEAT BRACKET MTD-783-04329A
...
42
Lock Nut 3/8-16 MTD-712-0130
...
43
Compression Spring MTD-732-04035
...
44
AB Screw 5/16-12 x 0.75 MTD-710-0726
...
45
Lock Washer MTD-736-0222
...
47
TT Screw 1/4-20 x 0.5 MTD-710-0599
...
48
Lock Nut 1/4-20 MTD-712-0324
...
49
BATTERY TRAY MTD-783-0349
...
50
BATTERY MTD-925-1707D
...
51
Carriage Screw MTD-710-0703
...
52
Battery Hold-Down rod MTD-747-04121A
...
53
Sems Nut MTD-712-0271
