Huskee 13AX615H731 (2008) Lawn Tractor

Model: 13AX615H731 (2008)

Back To Assemblies

Save Part Not Listed?
product name

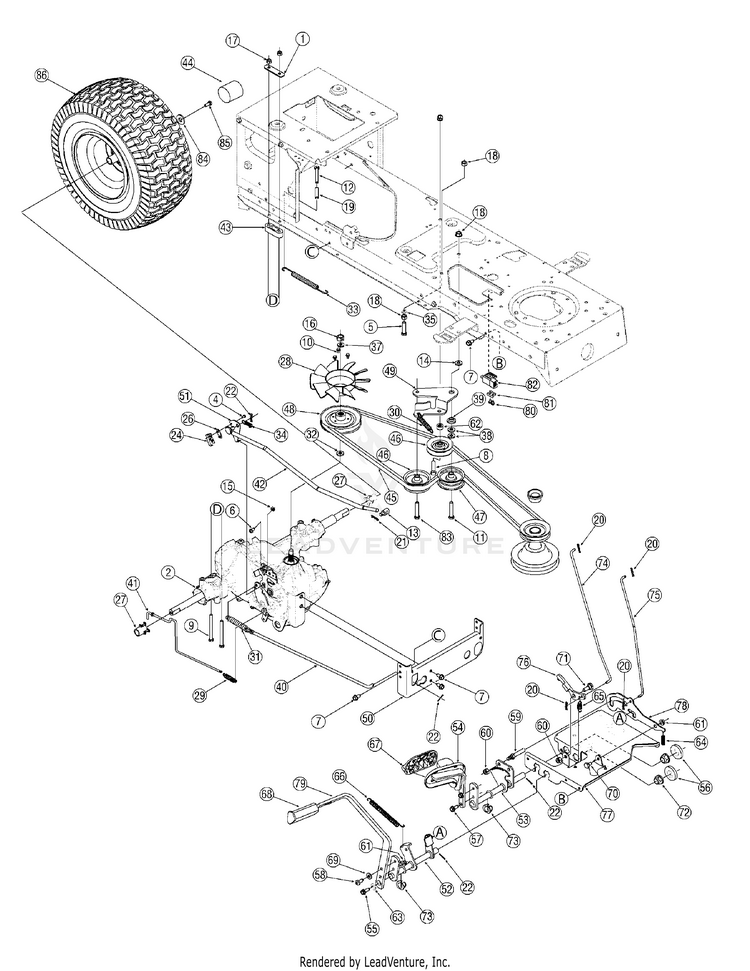

Drive Assembly

...
...
1
Transaxle Mounting Bracket MTD-17840-0637
...
2
TRANSMISSION ASSEMBLY MTD-918-0319
...
3
Reverse/Ground Wire Harness Adapt MTD-629-0949B
...
4
AB Screw #8-18 x 0.375 MTD-710-0227
...
5
Hex Bolt 3/8-16 x 1.5 MTD-710-0520
...
6
TT Screw 1/4-20 x 0.5 MTD-710-0653
...
7
AB Screw 5/16-12 x 0.75 MTD-710-0726
...
8
TT Sems Screw 3/8-16 x 1.250 MTD-710-0502A
...
9
Hex Bolt 5/16-18 x 3.5 MTD-710-1266
...
10
Carriage Screw MTD-710-3007
...
11
Hex Bolt 3/8-16 x 2.25 MTD-710-3011
...
12
Screw, 1/4-20 x 1.50 MTD-710-0778
...
13
Ferrule 3/8-24 Thd. MTD-911-0832
...
14
Flat Washer,.385 x 1.0 x .135 MTD-736-0258
...
15
Hex Lock Nut 1/4-20 MTD-712-0291
...
16
Hex Nut 1/2-20 Grade 5 MTD-912-3066
...
17
Flange Lock Nut, 5/16-18 MTD-712-04063
...
18
Flange Lock Nut 3/8-16 MTD-912-0431
...
19
Spacer,.260 x.372 x 1.030 Lg MTD-750-0566A
...
20
HEX NUT 3/8-16 GR5 MTD-712-3017
...
21
Cotter Pin MTD-714-0507
...
22
Cotter Pin MTD-714-0111
...
23
Cable Tie not shown MTD-725-0157
...
24
SAFETY SPRING SWITCH MTD-725-1644
...
25
Push Mount Cable Tie not shown MTD-926-0154
...
26
Insulatop Nut Plate MTD-926-0320
...
27
Sleeve, .765 ID x 1.500 LG MTD-731-05299A
...
28
Fan MTD-931-1449A
...
29
Spring MTD-932-0209
...
30
Extension Spring MTD-732-04323B
...
31
Ext. Spring .59 OD x 4.00 Lg. MTD-732-0716D
...
32
Wire Ring MTD-732-0729
...
33
Extension Spring MTD-732-0994
...
34
Extension Spring MTD-732-3118
...
35
Lock Washer MTD-736-0169
...
36
Flat Washer MTD-736-0300
...
37
Lock Washer MTD-736-0921
...
38
Flat Washer MTD-736-3010
...
39
Shoulder Spacer MTD-738-0372B
...
40
Brake Rod MTD-747-04139
...
41
Bypass Rod MTD-747-1149
...
42
CONTROL ROD MTD-747-1151
...
43
Transaxle Spacer MTD-948-0334
...
44
Hub Cap MTD-731-05674
...
45
V-Belt MTD-954-0461
...
46
Idler Pulley MTD-756-04209
...
47
Flat Idler Pulley MTD-756-04224
...
48
Input Pulley MTD-756-04111
...
49
Idler Bracket MTD-783-04442
...
50
TRANSMISSION TORQUE BRACKET MTD-783-0810B-0637
...
51
SWITCH BRACKET MTD-783-1019B
...
52
BRAKE CONTROL ASSEMBLY (POWDER BLACK) MTD-647-04100-0637
...
53
HYDRO CONTROL ASSEMBLY (POWDER BLACK) MTD-647-0049A-0637
...
54
CONTROL PEDAL ASSEMBLY MTD-683-0267C
...
55
TT Screw 5/16-18 x 0.875 MTD-710-0650
...
56
Flat Washer,.64 x 1.24 x.06 MTD-736-0187
...
57
LD Screw 5/16-18 x 0.75 MTD-710-1260A
...
58
TT Screw 5/16-18 x 0.75 MTD-710-1611B
...
59
Pin MTD-711-04159B
...
60
Flange Lock Nut, 3/8-16 MTD-712-04065
...
61
HEX FLANGE NUT MTD-712-3004A
...
62
Hex Jam Nut 7/16-20 MTD-912-0240
...
63
Lock Wash. 5/16" I.D. MTD-936-0119
...
64
SPRING MTD-732-0335
...
65
Extension Spring MTD-732-0955
...
66
Extension Spring MTD-732-0963
...
67
Control Pedal MTD-735-0662
...
68
Brake Control Pedal MTD-735-3049A
...
69
FLAT WASHER MTD-936-3008
...
70
Shoulder Bolt MTD-938-0155
...
71
Shoulder Screw MTD-738-0380
...
72
FLANGE BEARING MTD-941-0225
...
73
Hex Flange Bearing MTD-741-3065B
...
74
LOCK CONTROL BRAKE ROD MTD-747-04093A
...
75
CRUISE CONTROL ROD MTD-747-04096
...
76
CRUISE LATCH MTD-748-04039C
...
77
Steering Support Bracket MTD-783-04612-0637
...
78
LOCKOUT BRACKET MTD-783-0663E
...
79
SERVICE REPLACEMENT KITLAC MTD-753-05606
...
80
HEX SCREW AB-TAP #10-16 x 0.500 MTD-910-0224
...
81
Switch Plate MTD-17962
...
82
SWITCH MTD-925-04039
...
83
Screw, 3/8-16 x 1.50 MTD-710-1007
...
84
Bell Washer,.340 x.872 x.060 MTD-736-0242
...
85
Screw, 5/16-24 x.750 MTD-710-0627
...
86
Wheel Complete, 20 x 8 x 8 MTD-634-0104
...
86
TIRE-20X8 MULTI TRAC not shown MTD-734-1730
...
86
RIM ASSEMBLY (8.0 x 7.0 x .750) not shown MTD-634-04369
...
86
TUBELESS VALVE not shown MTD-934-0255
...
87
Pin, Cotter MTD-714-0104
