product name

Huskee 13AX615H731 (2008) Lawn Tractor

Model: 13AX615H731 (2008)

Back To Assemblies

Save Part Not Listed?
product name

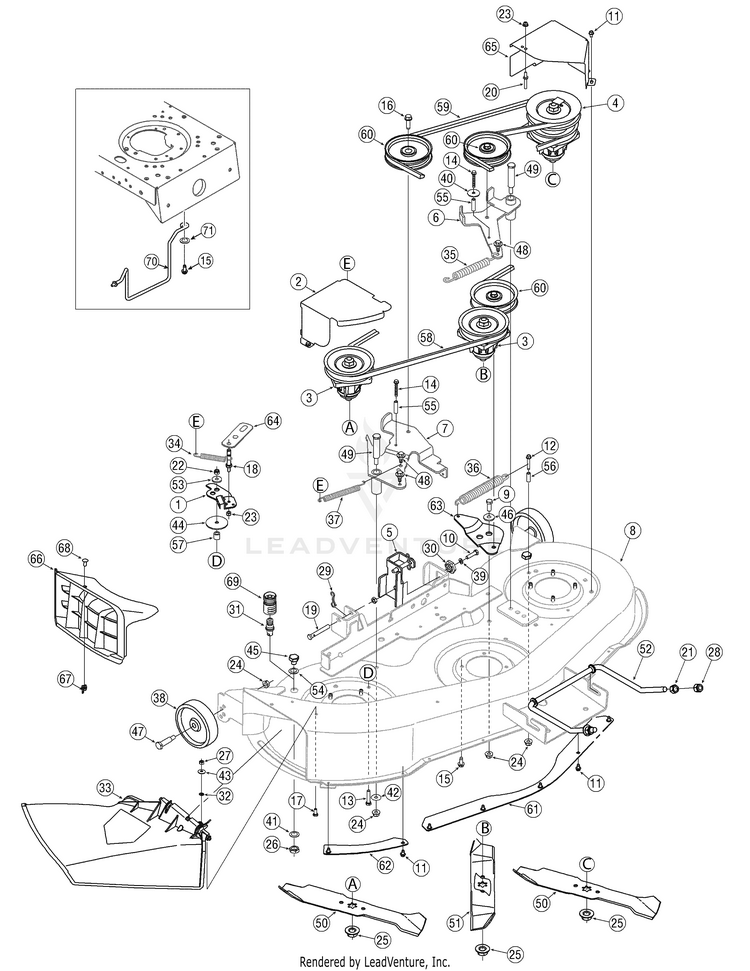

Deck Assembly 46 Inch

...
...
1
Deck Brake Brkt. Ass'y. MTD-97116
...
2
RH Belt Cover, Deck 46" MTD-17258E
...
3
Spindle Assembly, 5.00 Dia. MTD-918-0240C
...
3
SHIELD-BEARING Not shown MTD-17983
...
3
Spindle Housing Not shown MTD-753-07015
...
3
HEX NUT Not shown MTD-712-0417A
...
3
Spindle Shaft:4.450 LG. Not shown MTD-738-0927
...
3
BALL BEARING Not shown MTD-741P0919B
...
3
Spacer: .750 X 1.150 X .230 LG Not shown MTD-748-0434
...
3
Spacer: .792 X 1.060 X 1.800 LG Not shown MTD-750-0952
...
3
Pulley:5.00 Dia Not shown MTD-756-1187
...
4
Spindle Ass’y, Double Pulley MTD-918-04134D
...
4
HEX NUT Not shown MTD-712-0417A
...
4
Flat Washer:.760 x 1.5 Not shown MTD-736-0315
...
4
Spindle Shaft:6.58 LG. Not shown MTD-938-1128
...
4
BALL BEARING Not shown MTD-741P0919B
...
4
Spacer: .792 X 1.060 X 1.680 LG Not shown MTD-750-04440
...
4
Spacer: .792 X 1.060 X 1.860 LG Not shown MTD-750-04936
...
4
SPACER: .792 x 1.0 Not shown MTD-750-1304
...
4
Pulley:5.00 Dia x .80 ID Not shown MTD-756-04094
...
4
Pulley:5.75 Dia Not shown MTD-756-1188
...
5
Hanger Bracket Assembly MTD-683-0254B
...
6
Idler Bracket Assembly - LH MTD-683-04250A
...
7
46" IDLER BRACKET ASSEMBLY (RH) MTD-683-04251A
...
8
46" DECK ASSEMBLY MTD-983-04254
...
9
Screw, 3/8-16, 1.00, Gr5 MTD-710-0514
...
10
Screw, 5/16-18, 1.25, Gr5 MTD-710-0528
...
11
Screw, 1/4-20, 0.500 MTD-710-0599
...
12
Screw, 1/4-20, 1.500 MTD-710-0778
...
13
SCREW 5/16-18 x 1.5 LG MTD-710-0805A
...
14
Screw, 1/4-20 x 1.75 MTD-710-1026
...
15
Screw, Ld, 5/16-18, 0.750 MTD-710-1260A
...
16
Screw, 3/8-16 x 1.250 MTD-710-1315
...
17
Screw, 1/4-20, .75, Gr5 MTD-710-3015
...
18
PIN 1/4-20:3/8 x 2.685 MTD-711-04636
...
19
CLEVIS PIN 3/8 x 2.75 MTD-711-04669
...
20
Belt Guard Pin 1/4" Dia. MTD-911-0993
...
21
HEX NUT MTD-712-0206
...
22
Nut, Flange Lock, 5/16-18, GrF MTD-712-04063
...
23
Nut, Flange Lock, 1/4-20, GrF MTD-712-04064
...
24
Nut, Flange Lock, 3/8-16, GrF MTD-712-04065
...
25
HEX NUT MTD-712-0417A
...
26
Nut, Hex, M16-1.5 MTD-712-0641
...
27
HEX NUT MTD-712-3006
...
28
Nut, Hex Lock, 1/2-13 MTD-712-3083
...
29
Bow Tie Cotter Pin 1/8 x 1.25 MTD-714-04043
...
30
Gear, Deck Adjustment MTD-917-04074
...
31
Deck Water Nozzle MTD-737-04003D
...
32
Nut, Push, .25 ID x .50 OD MTD-726-0233
...
33
CHUTE ASSEMBLY MTD-631-05229
...
34
Extension Spring 3.97" Lg. MTD-932-0429A
...
35
Spring, Extension, .75 x 6.835 MTD-732-04400
...
36
Extension Spring 6.17" Lg. MTD-932-0594A
...
37
Spring, Extension, .56 x 5.52 MTD-732-0814
...
38
DECK WHEEL (5.0 DIA X 1.38) MTD-734-06265
...
39
Lock Wash. 5/16" I.D. MTD-936-0119
...
40
Washer, Flat, .285 x 1.25 x .06 MTD-736-0211
...
41
Washer, Lock, 5/8 MTD-736-0225
...
42
Washer, Flat, .385 x 1.0 x .135 MTD-736-0258
...
43
SPRING WASHER BELL MTD-736-0270
...
44
Washer, Flat, .34 x 2.25 x.10 MTD-736-0418A
...
45
Plug MTD-738-04146
...
46
Shld. Spacer .625" I.D. MTD-938-0347
...
47
Shld. Bolt .498" Dia. x 1.53" MTD-938-0373
...
48
Shoulder Screw 5/16-18, .43 x .29 MTD-738-04091A
...
49
Shld. Screw, .625 x 2.515 x .875 MTD-738-04216A
...
50
46" BLADE (STAR) MTD-742-0611A-0637
...
51
14.88" BLADE (MULCH) (STAR) MTD-742-0612A-0637
...
52
Rod, Deck Adjustment MTD-747-1130B
...
53
Shoulder Spacer MTD-748-0234
...
54
Washer, Flat, .64 x 1.24 x .06 MTD-736-0187
...
55
Spacer, .260 x .372 x 1.420 Lg. MTD-750-04456
...
56
Spacer, .260 x .372 x 1.030 MTD-750-0566A
...
57
SPACER .375X.63X.5 MTD-750-1320
...
58
V-Belt MTD-954-0349
...
59
Belt, V-type, à x 90.24 MTD-954-04122
...
60
Pulley Kit, Idler, 4.25"Dia MTD-753-08171
...
61
Deck Skirt, Center MTD-783-0141
...
62
Skirt-Right Hand MTD-783-0142-0637
...
63
46" IDLER BRACKET MTD-783-04641A
...
64
BRAKE BRACKET MTD-783-05321-0637
...
65
Belt Cover, LH MTD-783-1348D
...
66
Mulch Plug MTD-731-05264
...
67
WING NUT 1/4-20 MTD-712-3087
...
68
Carriage Screw, 1/4-20 x .62 MTD-710-0134
...
69
WATER NOZZLE MTD-921-04041
...
70
Belt Keeper Rod Assembly MTD-747-04857
...
71
Washer, Flat, .406 x .875 x .059 MTD-736-0300
...
72
Sems Screw, 3/8-16 x 1.500 MTD-710-1007
...
73
Idler Belt-Keeper Rod MTD-747-04530
Schematic Image Zoomed
