Huskee 13AX615H730 (2007) Lawn Tractor

Model: 13AX615H730 (2007)

Back To Assemblies

Save Part Not Listed?
product name

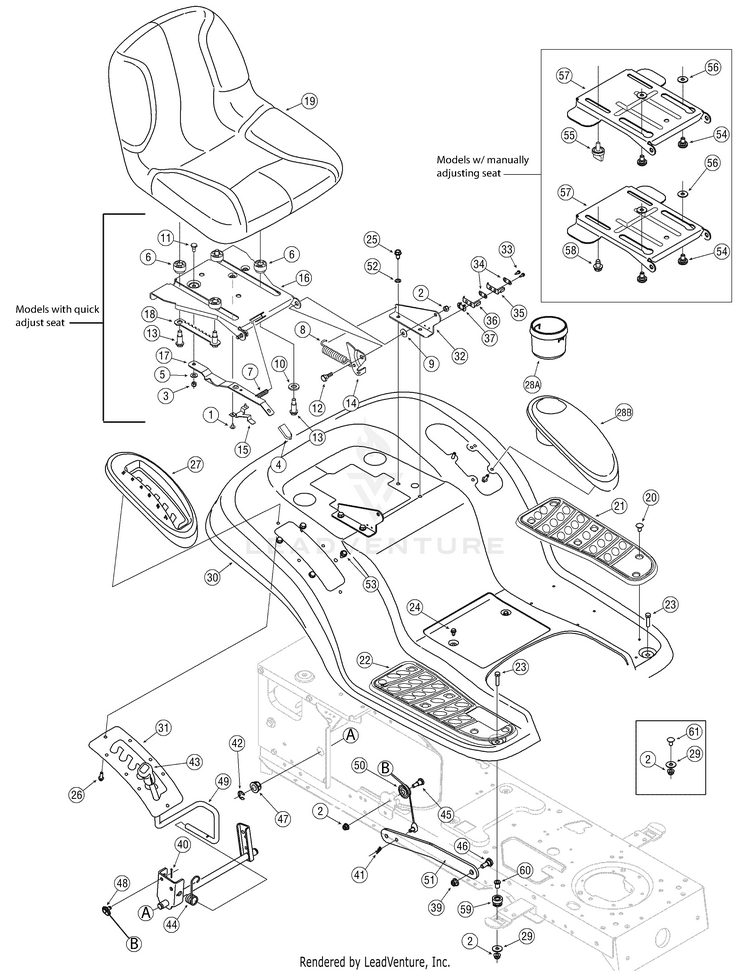

Fender Assembly

...
...
1
Screw, #10-16 x.375 MTD-710-1268
...
2
Nut, Flange Lock, 5/16-18, GrF MTD-712-04063
...
3
Nut, Flange Lock, 1/4-20 MTD-712-04064
...
4
Seat Adjuster Grip MTD-720-0309A
...
5
Washer, Flat .344 x .62 .033 MTD-736-0204
...
6
Spacer MTD-731-04074
...
7
Compression Spring,.41 x 1.5 MTD-732-0499
...
8
Spring, Extension,.84 Dia. x 4.6 MTD-732-1184
...
9
Wash, Flat, .340 x .688 x .065 MTD-736-0242
...
10
Wash, Flat,.531x 1.062 x.134 MTD-736-3019
...
11
Screw, Shld, .340 x.285, 1/4-20 MTD-738-0137A
...
12
Screw, Shoulder,.437 x.268 MTD-738-0296
...
13
Screw, Should,.50 x.925, 3/8-16 MTD-738-0966A
...
14
Seat Bracket, Lift MTD-783-0209D
...
15
Seat Stop MTD-783-0611
...
16
SEAT PIVOT BRACKET MTD-783-0738D
...
17
SEAT ADJUSTMENT LEVER MTD-783-0739A-0637
...
18
Seat Adjustment Selector MTD-783-0753
...
19
MEDIUM BACK SEAT MTD-757P06245
...
19
MEDIUM BACK SEAT MTD-757P06245
...
19
HIGH BACK SEAT MTD-757-04003A
...
20
Ratchet Clip MTD-726-3046
...
21
FOOT PAD (LH) MTD-735-0657
...
21
FOOT PAD (LH) MTD-735-0673
...
22
FOOT PAD (RH) MTD-735-0656
...
22
FOOT PAD (RH) MTD-735-0672
...
23
Hex Screw, 5/16-18 x 1.25 MTD-710-0528
...
24
Screw, 1/4-20, 0.500 MTD-710-0599
...
25
Screw, 5/16-18, 0.625 MTD-710-0604A
...
26
Screw, 1/4-15, 0.750 MTD-710-0895
...
27
Lift Lever Cover MTD-731-06795
...
28a
Cup Holder MTD-731-04591A
...
28b
COVER-W/CUP HOLDER MTD-731-1993A
...
29
Washer, Flat,.344 x 1.0 x.063 MTD-736-3078
...
30
FENDER - 4 STYLE MTD-783-04333A
...
30
FENDER-HYDRO MTD-783-04437A
...
31
DECK PLATE MTD-783-1010A-0637
...
31
LIFT ADJUSTMENT BRACKET MTD-783-0677B
...
32
Mounting Bracket, Seat MTD-783-1489C
...
33
Screw, #8-18 x.50 MTD-710-0227
...
34
Plate, Insulator MTD-726-0279
...
35
Outer Seat Spring Switch MTD-925-1303
...
36
Spring Switch, Inner MTD-725-1439
...
37
Plate, Insulator Boss MTD-726-0278
...
38
LIFT SHAFT ASSEMBLY (POWDER BLACK) MTD-683-04223-0637
...
39
Nut, Flange Lock, 3/8-16, GrF MTD-712-04065
...
40
Pin, Cotter,.072 Dia. x 1.13 MTD-714-0104
...
41
Pin, Cotter, 3/32, 1.0 MTD-714-0111
...
42
Ring, E Type,.625 Dia. MTD-716-0106A
...
43
Grip, Handle, 1/2 MTD-720-0311
...
44
Spring, Torsion MTD-732-0874
...
45
Bolt, Shldr, 3/8-16 .496 x 2.50 MTD-738-0138A
...
46
SHOULDER SCREW .625X.165X3/8-16 MTD-738-04130A
...
46
Screw, Shld,.50 x.27, (46" Deck) MTD-738-0380
...
47
FLANGE BEARING MTD-941-0225
...
48
Cable, Lift, 16.16 MTD-746-0968
...
49
Handle, Lift MTD-747-04447
...
50
Pulley, Roller MTD-756-1154
...
51
Arm, Lift - LH (42" Deck) MTD-783-04711
...
51
Deck Lift Arm RH (42" Deck) MTD-783-04494C
...
51
Arm, Lift (46" Deck) shown MTD-783-04963A
...
52
Lock Washer, 5/16 MTD-736-0607
...
53
Scr5/16-18 x.750 (10-Style) MTD-710-04593
...
53
Screw, 5/16-18, 0.625 (4-Style) MTD-710-0604A
...
54
SHOULDER SCREW.625 x .110:3/8-16 MTD-738-04012C
...
55
Knob, 3/8-16 MTD-720-04061
...
56
Flat Washer, .406 x .875 x .059 MTD-736-0300
...
57
Seat Pivot Bracket, Manual Adj. MTD-783-04081B
...
58
Hex Head Flange Screw, 3/8-16 MTD-710-04482
...
59
Grommet, .4375 x .750 MTD-735-0690
...
60
Flanged Spacer MTD-750-3310
...
61
Carriage Bolt, 5/16-18 x .750 MTD-710-0451
