Huskee 13AX615H730 (2007) Lawn Tractor

Model: 13AX615H730 (2007)

Back To Assemblies

Save Part Not Listed?
product name

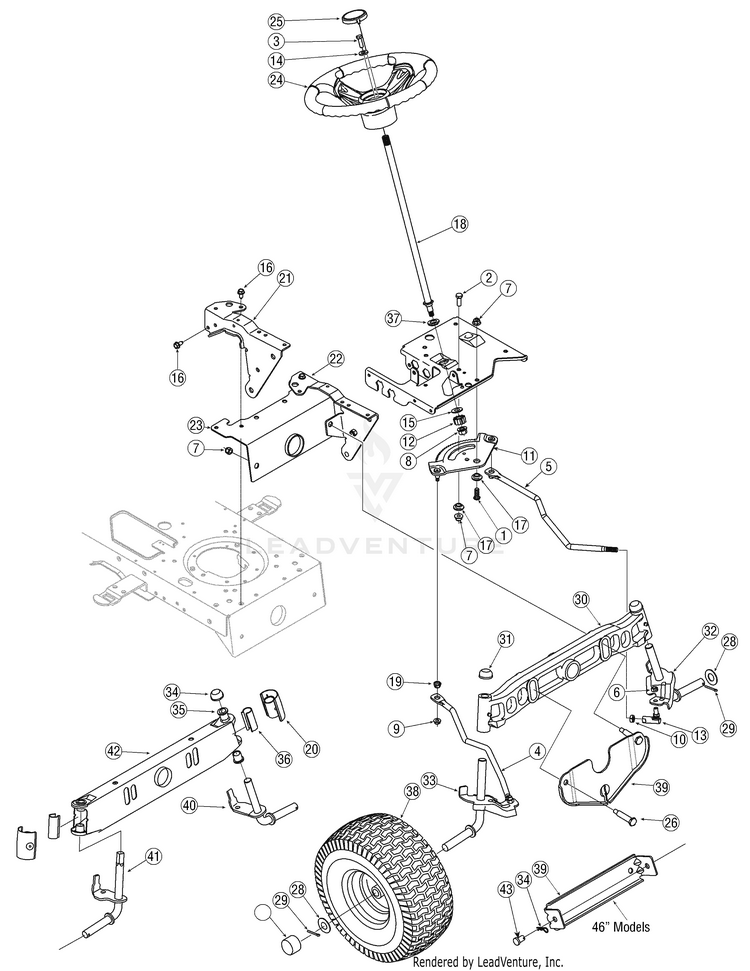

Steering Assembly

...
...
1
Hex Screw, 3/8-16, 1.00, Gr5 MTD-710-04095
...
2
Hex Screw, 3/8-16, 1.00, Gr5 MTD-710-0514
...
3
Hex Screw, 5/16-18, 1.00, Gr5 MTD-710-0643
...
4
DRAG LINK (RH) MTD-711-1408
...
5
DRAG LINK (LH) MTD-711-1409A
...
6
Nut, Hex Lock, 3/8-24 MTD-712-0214
...
7
Nut, Flange Lock, 3/8-16, Grf MTD-712-04065
...
8
Nut, Flange Lock, 7/16-20 MTD-712-0459
...
9
HEX FLANGE NUT MTD-712-3004A
...
10
Hex Jam Nut 7/16-20 MTD-912-0240
...
11
GEAR:STRG:11/90 RATIO MTD-717-1550F
...
12
Gear, Pinion, Steering MTD-717-1554
...
13
Ball Joints MTD-923-0448A
...
14
Washer, Flat, .406 x .875 x .105 MTD-736-3004
...
15
Washer, Flat, .51 x 1.12 x .06 MTD-736-3084
...
16
Screw, 5/16-18, 0.750 MTD-710-1260A
...
17
Spacer, Shoulder, .38 x 1.00 x .31 MTD-738-04154
...
18
Shaft, Steering, .625 OD x 24.25 MTD-738-1001A
...
19
BUSHING .380 ID MTD-941-0475
...
20
End Cap, Pivot Bar (w/ Fitting) MTD-931-1291A
...
21
PIVOT SUPPORT BRACKET (RH) MTD-783-0726E
...
22
PIVOT SUPPORT BRACKET (LH) MTD-783-0727D
...
23
PIVOT BAR BRACKET MTD-783-0728B
...
24
Steering Wheel MTD-631-04028
...
25
Steering Wheel Cap MTD-731-04039
...
25
Steering Wheel Cap, Sprig Logo MTD-731-04040
...
25
Steering Wheel Cap, Tine Logo MTD-731-04681
...
26
Shoulder Bolt .5 x 2.38 3/8-16 42" MTD-738-04128
...
26
Shoulder Bolt .5 x 2.23 3/8-16 MTD-738-1011A
...
27
Hub Cap, Standard MTD-731-05674
...
28
FLAT WASHER .781 ID x1.590 OD MTD-736-04228B
...
29
COTTER PIN-5/32 DIA MTD-714-0162
...
29
Washer, Flat .78 x 1.59 x .060 MTD-736-0316
...
30
CAST PIVOT BAR AXLE MTD-919-04177E
...
31
Push Cap MTD-726-0341
...
32
AXLE ASSEMBLY (.750) (LH) MTD-638-04003AP
...
33
RH Axle Assembly, .750 MTD-938-04004A
...
34
Cotter Pin, .080 x 1.5625 Internal MTD-714-04023
...
35
Flange Bearing MTD-741-0660A
...
36
Axle End Cap, Standard MTD-731-04057A
...
37
BRG:HEX FLNG 5/8 MTD-941-0656A
...
38
WHEEL ASSEMBLY (15 x 6 x 6) MTD-634-05067
...
38
Tire Only 15 x 6 x 6 not shown MTD-734-1731
...
38
RIM ASSEMBLY (6 X 4.5) not shown MTD-634-05066
...
39
Frt. Deck Hang Bracket (42" Deck) MTD-783-04568
...
39
Deck Stabilizer Bracket MTD-783-0720C
...
40
LH Axle Assembly, .750 MTD-938-04006A-0637
...
41
RH Axle Assembly, .750 MTD-938-04005A-0637
...
42
Pivot Bar Axle Assembly MTD-683-0128B
...
43
Clevis Pin MTD-911-0332
