Huskee 13AX615H730 (2007) Lawn Tractor

Model: 13AX615H730 (2007)

Back To Assemblies

Save Part Not Listed?
product name

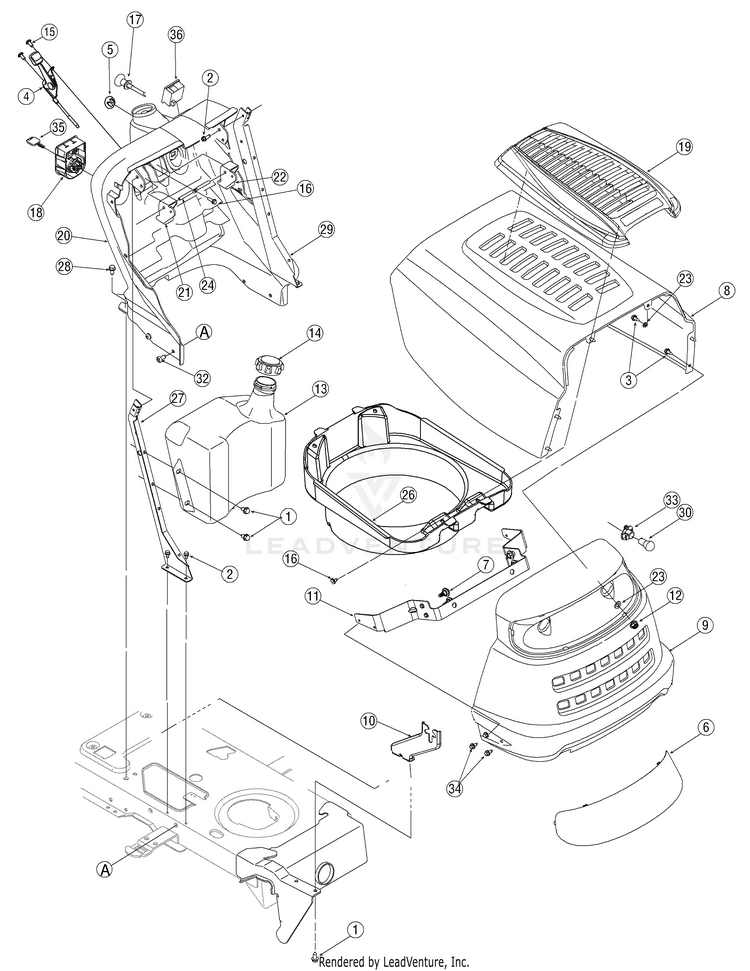

Hood Series 610

...
...
1
Screw, 5/16-12 x .750 MTD-710-0726
...
2
Self-tapping Screw, 1/4-20 x.5 MTD-710-0599
...
3
SCREW 1/4-20 x .620 GR5 MTD-710-0751
...
4
Throttle/Choke Control Cable MTD-746-04364
...
4
THROTTLE CABLE 39" x .62 MTD-746P04365
...
5
Choke Plug MTD-731-1999
...
6
GRILLE LENS 1 STYLE MTD-731P04949A
...
7
Shoulder Screw 5/16-18, .43 x .29 MTD-738-04091A
...
8
HOOD-1 STYLE MTD-783-04551
...
9
GRILL-1 STYLE MTD-783-04552
...
10
Pivot Bracket, RH MTD-783-04578A-0637
...
10
PIVOT BRACKET (LH) Not Shown MTD-783-04577A-0637
...
11
BRACKET-PI MTD-783-04621
...
12
Flange Lock Nut, 1/4-20 MTD-712-04064
...
13
Fuel Tank, Two Gallon MTD-751-0659D
...
13
Fuel Tank, Three Gallon MTD-751-0658E
...
14
TANK CAP MTD-751-0603B
...
15
Screw, 1/4-14 x.625 MTD-710-1017
...
16
Self-tapping Screw, 1/4-15 x.75 MTD-710-0895
...
17
Choke Cable 39" Lg. MTD-946-1085A
...
18
IGNITION MODULE SWITCH RMC (MAN PTO BLK) MTD-925-06119C
...
19
Hood Scoop MTD-731-05522A
...
20
DASH PANEL TROY W/MAN PTO N/WIND MTD-731-06167
...
21
CRUISE LEVER MTD-931-04215
...
22
BRAKE LEVER MTD-931-04217
...
23
Flat Washer, .265 x .938 x 1.20 MTD-736-0176
...
24
Brake/Cruise Pivot Rod MTD-747-1196
...
25
Wire Harness Not Shown MTD-929-04083B
...
26
Plenum, Kohler Twin MTD-731-05165A
...
26
HOOD PLENUM MTD-731-05566
...
27
DASH SUPPORT MTD-783-04285F-0637
...
28
Screw, 5/16-18 x .500 MTD-710-0607
...
29
DASH SUPPORT MTD-783-04323F-0637
...
30
Miniature Lamp 12V Socket Type MTD-925-0963
...
31
SPRING WASHER BELL MTD-736-0270
...
32
Screw, 5/16-18 x.75 MTD-710-1611B
...
33
HEADLIGHT SOCKET (1/4 TURN) MTD-925-1649A
...
34
Hex Index Screw, 1/4-20 x.625 MTD-710-1652
...
35
Key MTD-925-1745A
...
35
Key MTD-925-1745A
...
36
HOUR METER/SERVICE MINDER MTD-925-06170B
...
36
Indicator Monitor MTD-925-04156
...
xx
HARNESS Not shown MTD-925-04403
...
xx
HARNESS Not shown MTD-725-04411A
...
xx
Headlight Reflective Insert Not shown MTD-777X41984
