Huskee 13AX615H730 (2007) Lawn Tractor

Model: 13AX615H730 (2007)

Back To Assemblies

Save Part Not Listed?
product name

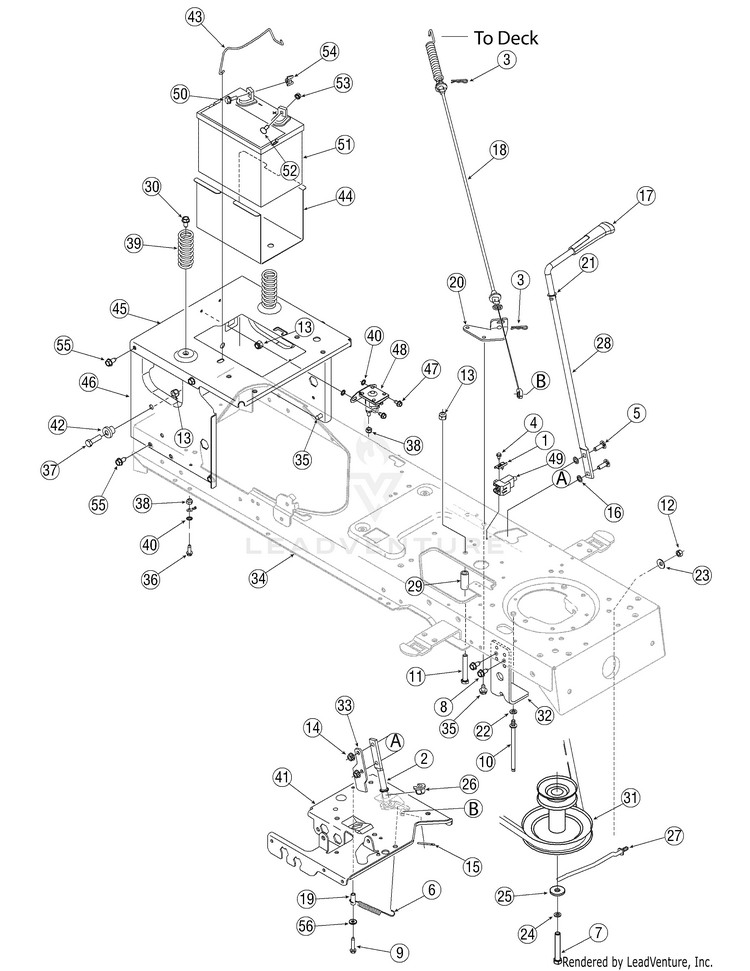

Frame

...
...
1
Plate, Switch MTD-17962
...
2
Lever Assembly, Engagement MTD-947-04036A
...
3
Click Pin MTD-714-0145
...
4
HEX SCREW AB-TAP #10-16 x 0.500 MTD-910-0224
...
5
Screw, Carriage, 5/16-18, 1.00 MTD-710-0276
...
6
Extension Spring, .38 OD x 3.9 Lg MTD-732-04248
...
7
Screw, 7/16-20, 2.75 46" Deck MTD-710-04608
...
7
Hex Head Cap Screw, 7/16-20 x 2.75 MTD-710-04377
...
8
Screw, 5/16-12, 0.750 MTD-710-0726
...
9
Screw, 1/4-20 x 1.50 MTD-710-0778
...
10
BELT GUARD PIN MTD-911-1428
...
11
Screw, 3/8-16 x 2.25 MTD-710-3011
...
12
Nut, Flange Lock, 5/16-18, GrF MTD-712-04063
...
13
Nut, Flange Lock, 3/8-16, GrF MTD-712-04065
...
14
HEX FLANGE NUT MTD-712-3004A
...
15
Pin, Cotter, 1/8 x 1.00 MTD-714-0115
...
16
Nut, Speed, .3125 ID MTD-726-0201
...
17
PTO KNOB MTD-731-2111B
...
18
Deck Engagement Cable MTD-946-04092
...
19
Spacer, .260 x .372 x 1.030 Lg. MTD-750-0566A
...
20
CABLE BRACKET MTD-783-04590B
...
21
Washer, Flat, .510 x .750 x .033 MTD-736-0108
...
22
Lock Wash. 5/16" I.D. MTD-936-0119
...
23
Washer, Bell, .340 x .872 x .060 MTD-736-0242
...
24
Washer, Lock, 7/16 MTD-736-0171
...
25
Washer, Flat, .450 x1.250 x.164 MTD-736-0322
...
26
Bearing, Flange, Hex Split .500 ID MTD-741-0708
...
27
BELT KEEPER ROD MTD-747-1286A
...
28
DECK ENGAGEMENT HANDLE MTD-747-04470
...
29
SPACER .385ID x 1.54" MTD-748-0415B
...
30
Screw, 5/16-18 x .750 MTD-710-1260A
...
31
Engagement Pulley MTD-756-04196A
...
31
ENGINE PULLEY 3.56 x 6.12 DIA MTD-756-04208A
...
32
DECK UP STOP BRACKET MTD-783-04467
...
33
Stop Bracket, Engagement MTD-783-0744A
...
34
LOWER FRAME ASSEMBLY MTD-683-04173B
...
35
Screw, 5/16-18, 0.500 MTD-710-0607
...
36
Screw, 1/4-20, 0.750 MTD-710-0642
...
37
Screw, 3/8-16, 1.25, Gr5 MTD-710-3005
...
38
Nut, Flange Lock, 1/4-20, GrF MTD-712-04064
...
39
Spring, Compr., 1.28 OD x 3.125 MTD-732-04035
...
40
Washer, Lock, 1/4, External MTD-736-0222
...
41
Steering Support Bracket MTD-783-04612-0637
...
42
Spacer, Shoulder, .38 x 1.0 x .70 MTD-738-04058
...
43
Hold Rod, Battery MTD-747-04121A
...
44
BATTERY TRAY MTD-783-0349
...
45
SEAT BRACKET MTD-783-04329A
...
46
UPPER FRAME (POWDER BLACK) MTD-783-04809C-0637
...
47
Screw, 1/4-20, 0.50 MTD-710-0599
...
48
12V SOLENOID MTD-725-04439B
...
49
SWITCH MTD-925-04039
...
50
Screw, Shoulder, .250 x .150 MTD-738-1132
...
51
BATTERY MTD-925-1707D
...
51
BATTERY MTD-925-1707D
...
52
Hex Head Flange Screw MTD-710-04666
...
53
Nut, Sems, 1/4-20 MTD-712-0271
...
54
WING NUT 1/4-20 MTD-712-3087
...
55
Screw, 5/16-18 x 0.625 MTD-710-0604A
...
56
Washer, Flat, .28 x .74 x .063 MTD-736-0173
