Huskee 13AX615H730 (2007) Lawn Tractor

Model: 13AX615H730 (2007)

Back To Assemblies

Save Part Not Listed?
product name

Engine Accessories Single

...
...
1
AB Screw #8-18 x 0.5 MTD-710-0227
...
2
TT Screw 1/4-20 x 0.5 MTD-710-0599
...
3
TT Screw 3/8-16 x 1.00 MTD-710-0654A
...
4
AB Screw 5/16-12 x 0.5 MTD-710-0726
...
5
Screw, 5/16-18 x .750 MTD-710-1314A
...
6
Flat Washer, 1.03 x 1.620 x .095 MTD-736-0277
...
7
Cable Tie MTD-725-0157
...
8
Hose Clamp .490 dia. MTD-726-0205
...
9
Hose Clamp 9/16 MTD-726-0272
...
10
Muffler Deflector MTD-751-0564B
...
11
Single Inlet Muffler MTD-951-0617C
...
12
EXHAUST PIPE (KOHLER SINGLE) MTD-751-10047
...
13
Fuel Line Hose MTD-751-10349
...
14
Oil Drain Hose MTD-751-3141-14
...
15
Oil Drain Valve MTD-951-10517A
...
16
Muffler Heat Shield MTD-783-0615E-0637
...
17
Oil Drain Cap MTD-751-3142

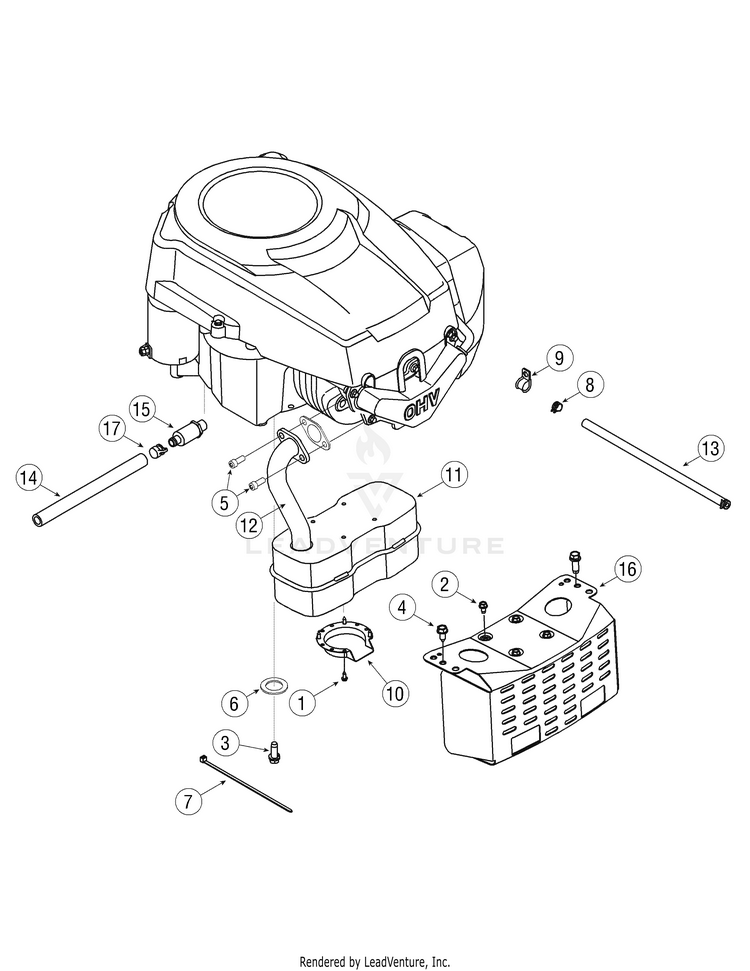

Schematic Image Zoomed
