Huskee 13AX605H730 (2006) Lawn Tractor

Model: 13AX605H730 (2006)

Back To Assemblies

Save Part Not Listed?
product name

Engine Accessories

...
...
1
AB Screw #8-18 x 0.5 MTD-710-0227
...
2
TT Screw 1/4-20 x 0.5 MTD-710-0599
...
3
AB Screw 5/16-12 x 0.5 MTD-710-0726
...
4
Muffler Heat Shield MTD-783-0615E-0637
...
5
Oil Drain Cap MTD-751-3142
...
6
TT Screw 3/8-16 x 1.00 (Kohler Courage) (Kohler Courage) MTD-710-0654A
...
7
Flat Washer, 1.031 x 1.620 x.095 (Kohler Courage) (Kohler Courage) MTD-736-0277
...
8
Oil Drain Hose MTD-751-3141-14
...
9
Hose Clamp MTD-726-0205
...
10
Cable Tie MTD-725-0157
...
11
Clamp (Kohler Courage) (Kohler Courage) MTD-726-0272
...
12
Oil Drain Valve MTD-951-10517A
...
13
Fuel Line Hose MTD-751-10349
...
14
Muffler Deflector MTD-751-0564B
...
15
Single Inlet Muffler (Kohler Courage) MTD-951-0617C
...
16
EXHAUST PIPE (KOHLER SINGLE) (Kohler Courage) MTD-751-10047
...
17
Screw, 3/8-16 x 1.250 (Briggs & Stratton V-Twin) (Briggs & Stratton V-Twin) MTD-710-1315
...
18
Flange Lock Nut, 3/8-16 (Briggs & Stratton V-Twin) (Briggs & Stratton V-Twin) MTD-712-3005
...
19
Flat Washer, .406 x .875 x .059 (Briggs & Stratton V-Twin) (Briggs & Stratton V-Twin) MTD-736-0300
...
20
LH Exhaust Pipe (Briggs & Stratton V-Twin) (Briggs & Stratton V-Twin) MTD-751-0651B
...
21
RH Exhaust Pipe (Briggs & Stratton V-Twin) (Briggs & Stratton V-Twin) MTD-751-0650B
...
22
MUFFLER (DUAL INLET) (Briggs & Stratton V-Twin) MTD-951-0616B
...
23
Screw, #10-32 x .625 (Briggs & Stratton V-Twin) (Briggs & Stratton V-Twin) MTD-710-1237
...
24
Clamp (Briggs & Stratton V-Twin) (Briggs & Stratton V-Twin) MTD-751B221535
...
25
Screw, 5/16-18 x .750 MTD-710-1314A
...
26
Sems Nut, 1/4-20 (Briggs & Stratton V-Twin) (Briggs & Stratton V-Twin) MTD-712-0271
...
27
MUFFLER GASKET (Briggs & Stratton V-Twin) MTD-721P0460
...
28
HEAT SHIELD (Briggs & Stratton V-Twin) MTD-783-0625C

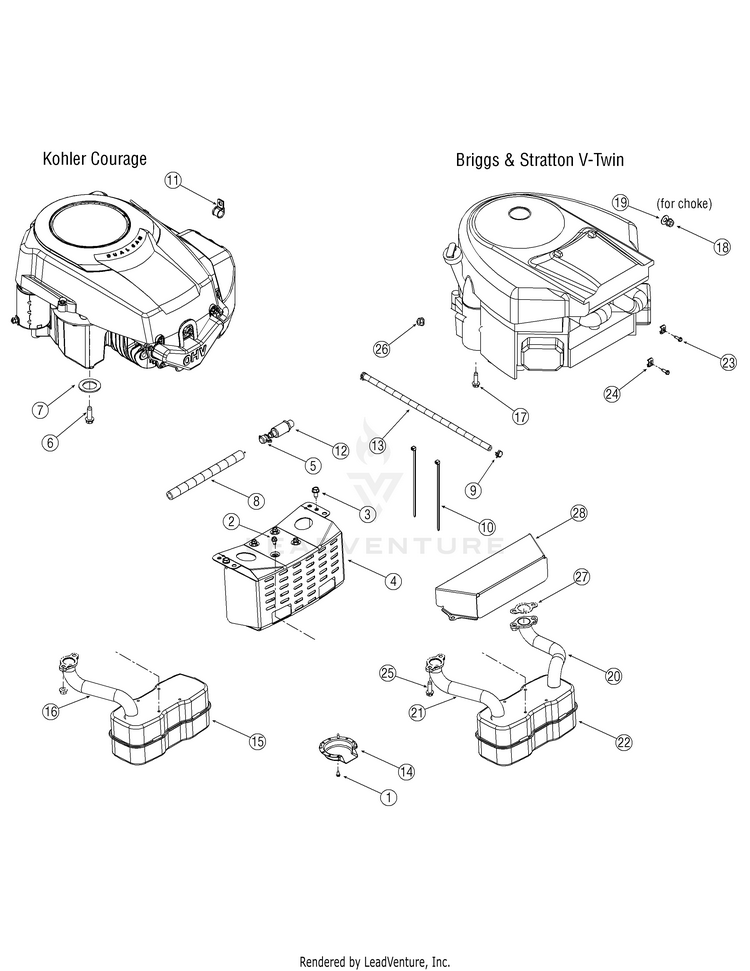

Schematic Image Zoomed
