Huskee 13AU609H131 (1999) Lawn Tractor

Model: 13AU609H131 (1999)

Back To Assemblies

Save Part Not Listed?
product name

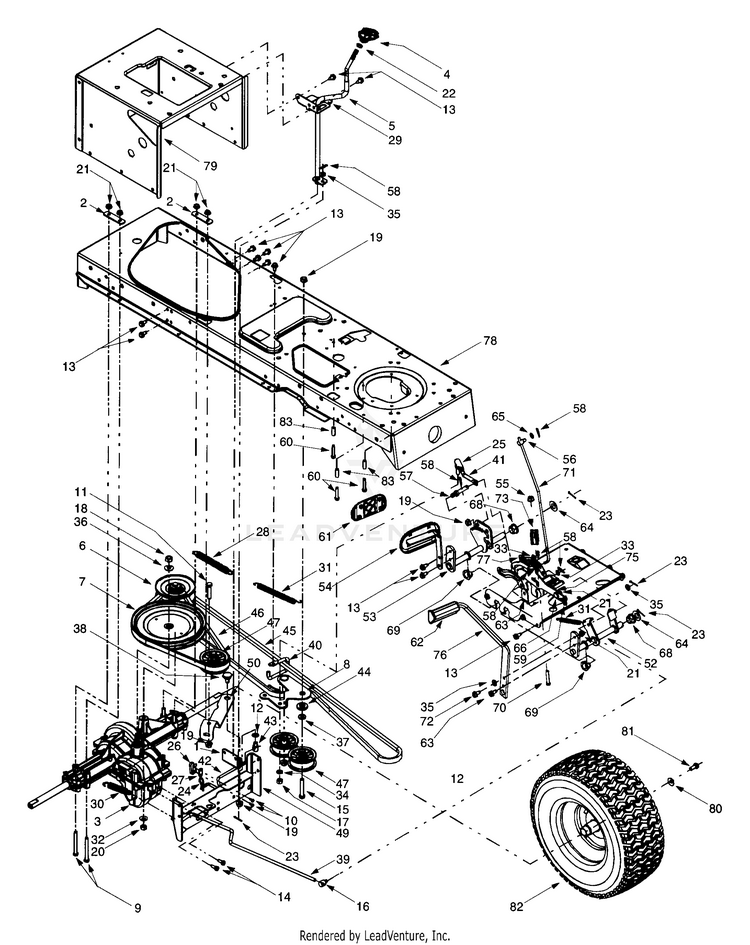

Drive System

...
...
1
SHIFT LEVER BRACKET MTD-783-1015-0637
...
2
Transaxle Mounting Bracket MTD-17840-0637
...
3
TRANSMISSION MTD-918-0551A
...
4
Shfter Knob MTD-931-0009A
...
5
SHIFT LEVER MTD-647-0045
...
6
PULLEY ASSEMBLY MTD-956-0048
...
7
V-PULLEY (8.5X1/2-36) MTD-656-0051A
...
8
BRACKET-DOUBLE IDLER PWR BL MTD-683-0251
...
9
Hex Cap Screw, 5/16-18 x 2.75 MTD-710-0176
...
10
Self-tapping Screw, #8-18 x.5 MTD-710-0227
...
11
Hex Cap Screw, 3/8-16 x 1.75 MTD-710-0347
...
12
FLAT WASHER .510 x .995 MTD-736-0272
...
13
Self-tapping Screw, 5/16-18 x .625 MTD-710-0604A
...
14
Self-tapping Screw, 1/4-20 x .75 MTD-710-0642
...
15
Hex Cap Screw, 3/8-16 x 2.25 MTD-710-3011
...
16
Engagement Ferru MTD-911-0677
...
17
Hex Nut, 3/8-24 MTD-712-0241
...
18
Hex Nut, 7/16-20 MTD-712-0378
...
19
Flange Lock Nut 3/8-16 MTD-912-0431
...
20
Hex Nut, 3/8-16 MTD-712-0798
...
21
HEX FLANGE NUT MTD-712-3004A
...
22
HEX JAM NUT 3/8-16 GR5 MTD-712-3008
...
23
Cotter Pin MTD-714-0111
...
24
Internal Cotter Pin MTD-714-01498
...
25
Ball Joint, 3/8-24 MTD-923-3018
...
26
SAFETY SPRING SWITCH MTD-725-1644
...
27
Insulatop Nut Plate MTD-926-0320
...
28
EXTENSION SPRING MTD-932-0384
...
29
Compression Spring Clip MTD-732-0525
...
30
Ext. Spring .59 OD x 4.00 Lg. MTD-732-0716D
...
31
Extension Spring, .50 Dia. x 6.37 (hooks to flange, 783-0650, in frame) MTD-732-0963
...
32
Bell Washer, .401 x .87 x .063 MTD-736-0105
...
33
Flat Washer, .385 x .62 x .063 MTD-736-0140
...
34
Lock Washer, 3/8 MTD-736-0169
...
35
FLAT WASHER MTD-736-0275
...
36
Bell Washer, .45 x 1.0 x .602 MTD-736-0407
...
37
Flat Washer, .407 x .812 x .135 MTD-736-3010
...
38
Shoulder Screw, .625 Dia. x .21 MTD-738-0322A
...
39
BRAKE ROD MTD-747-1122
...
40
BELT GUARD MTD-747-1123A
...
41
IDLER ADJUSTMENT ROD MTD-747-1127
...
42
SHIFT ROD MTD-647-0047A
...
43
ADJUSTMENT FERRULE 1/4-20 x 1.00 MTD-711-0736
...
44
Shoulder Spacer, .38 ID MTD-748-0372
...
45
Drive Belt MTD-954-0467A
...
46
Variable-speed Belt MTD-954-0468
...
47
Flat Idler Pulley MTD-756-04224
...
?48
SHIFT LINK MTD-783-0637
...
49
TRANSMISSION TORQUE BRACKET MTD-783-0667A-0637
...
50
Idler Bracket MTD-783-0669-0637
...
?51
SHIFT LINK MTD-783-0714
...
52
SERVICE REPLACEMENT KITLAC MTD-753-05606
...
53
SPEED CONTROL ASSEMBLY (POWDER BLACK) MTD-647-0032A-0637
...
54
CONTROL PEDAL ASSEMBLY MTD-683-0266
...
55
Flange Lock Nut 3/8-16 MTD-912-0431
...
56
ADJUSTMENT FERRULE 1/4-20 x 1.00 MTD-711-0736
...
57
PIN 3/8-16 x 2.21 MTD-711-1363
...
58
Cotter Pin MTD-714-0104
...
59
Compression Spring, .34 OD x 1.0 MTD-732-0437
...
60
Self-tapping Screw, 1/4-20 x 1.5 MTD-710-0778
...
61
Drive Pedal Pad MTD-735-0662
...
62
Brake Pedal Pad MTD-735-3049A
...
63
Self-tapping Screw, 5/16-18 x .875 MTD-710-1650
...
64
Flat Washer, .64 x 1.24 x .06 MTD-736-0187
...
65
Flat Washer, .344 x .062 x .03 MTD-736-0204
...
66
Shoulder Bolt MTD-938-0155
...
?67
Shoulder Screw, .5 x .434 MTD-738-0507B
...
68
FLANGE BEARING MTD-941-0225
...
69
Split Hex Flange Bearing MTD-741-3065B
...
70
Hex Cap Screw, 3/8-16 x 2.5 MTD-710-0859
...
71
LOCK CONTROL BRAKE ROD MTD-747-1138
...
72
Self-tapping Screw, 5/16-18 x .75 MTD-710-1260A
...
73
SPACER .385ID x 1.54" MTD-748-0415B
...
?74
Steering Support Bracket MTD-783-04612-0637
...
75
LOCKOUT BRACKET MTD-783-0732A
...
76
BRAKE PEDAL MTD-783-0773
...
77
KIT-NEUT RTN BRACKET MTD-753-04872
...
78
LOWER FRAME MTD-683-0304
...
79
UPPER HITCH PLATE MTD-783-1031
...
80
Bell Washer, .34 x .872 MTD-736-0242
...
81
Hex Cap Screw, 5/16-24 x .75 MTD-710-0627
...
82
Wheel Assembly Complete 20 x 8 x 8 Square Shoulder MTD-634-0104
...
xx
RIM ASSEMBLY (8.0 x 7.0 x .750) MTD-634-04369
...
xx
TUBELESS VALVE (Not Shown) MTD-934-0255
...
xx
TIRE-20X8 MULTI TRAC MTD-734-1730
...
83
Spacer MTD-750-0556
