Huskee 13AP625K730 (2007) Lawn Tractor

Model: 13AP625K730 (2007)

Back To Assemblies

Save Part Not Listed?
product name

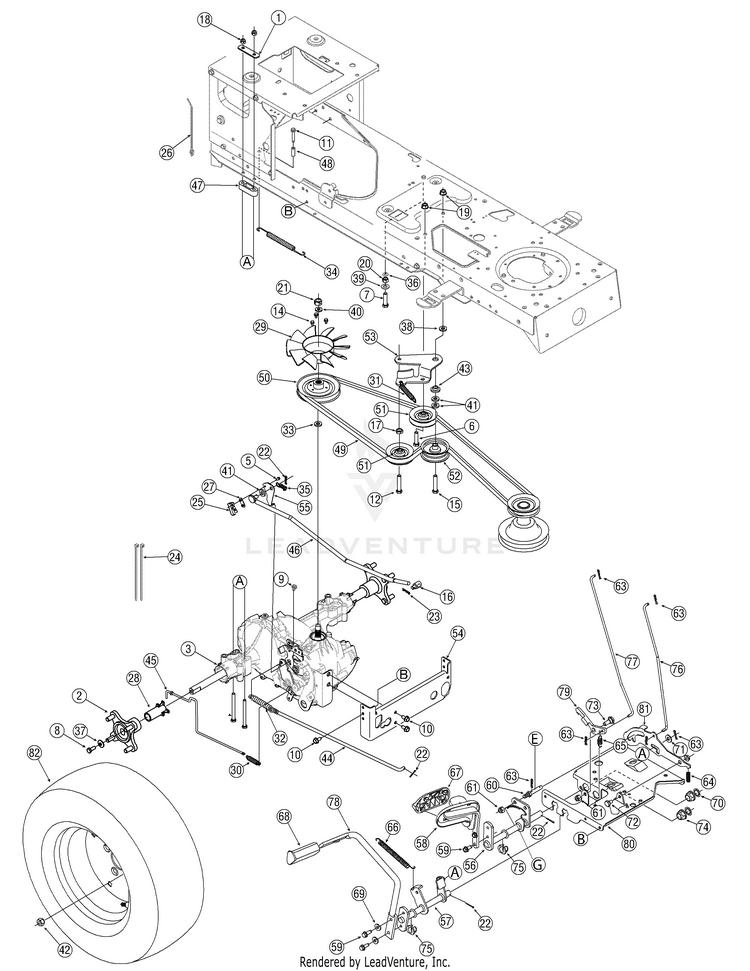

Drive & Wheels Rear

...
...
1
Transaxle Mounting Bracket MTD-17840-0637
...
2
Hub Assembly, Wheel MTD-918-04228A
...
3
TRANSMISSION MTD-918-04270B
...
4
HARNESS ASSEMBLY MTD-629-04124
...
5
AB Screw #8-18 x 0.375 MTD-710-0227
...
6
TT Sems Screw 3/8-16 x 1.250 MTD-710-0502A
...
7
Hex Bolt 3/8-16 x 1.5 MTD-710-0520
...
8
Screw, 5/16-24 x.750 MTD-710-0627
...
9
TT Screw 1/4-20 x 0.5 MTD-710-0653
...
10
AB Screw 5/16-12 x 0.75 MTD-710-0726
...
11
Screw, 1/4-20 x 1.50 MTD-710-0778
...
12
Screw, 3/8-16 x 1.50 MTD-710-1007
...
13
Hex Bolt 5/16-18 x 3.5 MTD-710-1266
...
14
Carriage Screw MTD-710-3007
...
15
Hex Bolt 3/8-16 x 2.25 MTD-710-3011
...
16
Ferrule 3/8-24 Thd. MTD-911-0832
...
17
Hex Jam Nut 7/16-20 MTD-912-0240
...
18
Flange Lock Nut, 5/16-18 MTD-712-04063
...
19
Flange Lock Nut 3/8-16 MTD-912-0431
...
20
HEX NUT 3/8-16 GR5 MTD-712-3017
...
21
Hex Nut 1/2-20 Grade 5 MTD-912-3066
...
22
Cotter Pin MTD-714-0111
...
23
Cotter Pin MTD-714-0507
...
24
Cable Tie (Not shown) MTD-725-0157
...
25
SAFETY SPRING SWITCH MTD-725-1644
...
26
Push Mount Cable Tie (Not shown) MTD-926-0154
...
27
Insulatop Nut Plate MTD-926-0320
...
28
Sleeve 0.765 x 2.410" Lg. MTD-731-05300A
...
29
Fan MTD-931-1449A
...
30
Spring MTD-932-0209
...
31
Extension Spring MTD-732-04323B
...
32
Ext. Spring .59 OD x 4.00 Lg. MTD-732-0716D
...
33
Wire Ring MTD-732-0729
...
34
Extension Spring MTD-732-0994
...
35
Extension Spring MTD-732-3118
...
36
Lock Washer MTD-736-0169
...
37
Bell Washer,.340 x.872 x.060 MTD-736-0242
...
38
Flat Washer,.385 x 1.0 x .135 MTD-736-0258
...
39
Flat Washer MTD-736-0300
...
40
Lock Washer MTD-736-0921
...
41
Flat Washer MTD-736-3010
...
42
Lug Nut 7/16-14 MTD-712-3050
...
43
Shoulder Spacer MTD-738-0372B
...
44
Brake Rod MTD-747-04139
...
45
Bypass Rod MTD-747-1149
...
46
CONTROL ROD MTD-747-1151
...
47
Transaxle Spacer MTD-948-0334
...
48
Spacer,.260 x.372 x 1.030 Lg. MTD-750-0566A
...
49
V-Belt MTD-954-0461
...
50
Input Pulley MTD-756-04111
...
51
Idler Pulley MTD-756-04209
...
52
Flat Idler Pulley MTD-756-04224
...
53
Idler Bracket MTD-783-04442
...
54
TRANSMISSION TORQUE BRACKET MTD-783-0810B-0637
...
55
SWITCH BRACKET MTD-783-1019B
...
56
HYDRO CONTROL ASSEMBLY (POWDER BLACK) MTD-647-0049A-0637
...
57
BRAKE CONTROL ASSEMBLY (POWDER BLACK) MTD-647-04100-0637
...
58
CONTROL PEDAL ASSEMBLY MTD-683-0267C
...
59
LD Screw 5/16-18 x 0.75 MTD-710-1260A
...
60
Pin MTD-711-04159B
...
61
Flange Lock Nut, 3/8-16 MTD-712-04065
...
62
HEX FLANGE NUT MTD-712-3004A
...
63
Pin, Cotter MTD-714-0104
...
64
SPRING MTD-732-0335
...
65
Extension Spring MTD-732-0955
...
66
Extension Spring MTD-732-0963
...
67
Control Pedal MTD-735-0662
...
68
Brake Control Pedal MTD-735-3049A
...
69
Lock Wash. 5/16" I.D. MTD-936-0119
...
70
Flat Washer,.64 x 1.24 x.06 MTD-736-0187
...
71
Flat Washer, .385 x .870 x .092 MTD-736-0262
...
72
Shoulder Bolt MTD-938-0155
...
73
Shoulder Screw MTD-738-0380
...
74
FLANGE BEARING MTD-941-0225
...
75
Hex Flange Bearing MTD-741-3065B
...
76
LOCK CONTROL BRAKE ROD MTD-747-04093A
...
77
CRUISE CONTROL ROD MTD-747-04096
...
78
BRAKE PEDAL (POWDER BLACK) MTD-747-04641A-0637
...
79
CRUISE LATCH MTD-748-04039C
...
80
Steering Support Bracket MTD-783-04612-0637
...
81
LOCKOUT BRACKET MTD-783-0663E
...
82
Wheel Complete, 22 x 9.5 x 12 MTD-NA
...
82
Tire Only, 22 x 9.5 x 12 SQ SH Not shown MTD-734-04174
...
82
Rim Only Not shown MTD-634-04238
...
82
TUBELESS VALVE Not shown MTD-934-0255
