Huskee 13AP625K730 (2007) Lawn Tractor

Model: 13AP625K730 (2007)

Back To Assemblies

Save Part Not Listed?
product name

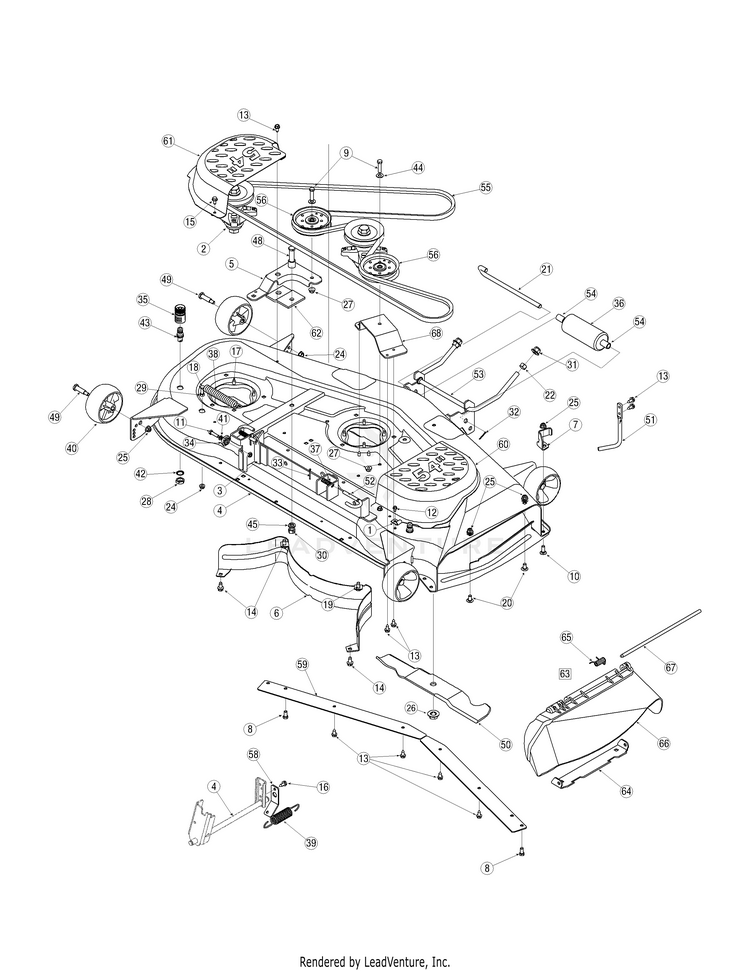

Deck 54

...
...
1
Retainer Hook Bracket MTD-96606
...
2
PULLEY & SPINDLE ASSEMBLY 5.39" W/O FTG If Spindle Housing has grease fitting, please refer to part number 918-04126A MTD-918-04125C
...
2
HEX NUT Not shown MTD-712-0417A
...
2
Flat Washer:.760 x 1.5 Not shown MTD-736-0315
...
2
Spindle Shaft:5.75 LG. Not shown MTD-738-1010A
...
2
BALL BEARING Not shown MTD-741P0919B
...
2
Spacer:.790 ID x 1.25 Not shown MTD-748-0160A
...
2
Spacer: 80 X 1.10 X 1.322 LG Not shown MTD-750-1000
...
2
Spacer: .79 x 1.82 x .5 Not shown MTD-750-1349A
...
2
Pulley:V TYP:5.39 DIA Not shown MTD-756-04216
...
3
Hanger Bracket Assembly MTD-683-0254B
...
4
54" DECK SHELL MTD-983-04482
...
5
Idler Arm Assembly MTD-683-04182-0637
...
6
Baffle, Rear MTD-703-2093C
...
7
Chute Deflector Stop MTD-703-3279
...
8
Screw, 3/8-16 x.75 MTD-710-0216
...
9
Screw, 3/8-16 x 1.75 MTD-710-0347
...
10
Screw, 3/8-16 x 1.0 MTD-710-04095
...
11
Screw, 5/16-18 x 1.25 MTD-710-0528
...
12
Screw, 1/4-20 x.500 MTD-710-0599
...
13
Screw, 5/16-18 x.500 MTD-710-0607
...
14
Screw, 3/8-16 x.750 MTD-710-0623
...
15
Screw, 5/16-18 x.875 MTD-710-0650
...
15
Washer, Flat, .407 x .812 x .135 Not shown MTD-736-3010
...
15
FLAT WASHER Not shown MTD-736-0275
...
16
Screw, 5/16-12 x.750 MTD-710-0726
...
17
Screw, 5/16-18 x.750 MTD-710-1260A
...
18
Screw, 5/16-18 x 2.00 MTD-710-3103
...
19
Bolt, Carriage, 3/8-16 x 1.00 MTD-710-3168
...
20
CARRIAGE BOLT 3/8-16 x .75 MTD-710-3178
...
21
ROLLER PIN .5"DIAX10.06" MTD-711-1737
...
22
HEX NUT MTD-712-0206
...
23
Push Nut, 3/8 MTD-712-0229
...
24
Nut, Flange Lock, 5/16-18 MTD-712-04063
...
25
Nut, Flange Lock, 3/8-16 MTD-712-04065
...
26
HEX NUT MTD-712-0417A
...
27
Flange Lock Nut 3/8-16 MTD-912-0431
...
28
Nut, Hex, M16-1.5 MTD-712-0641
...
29
HEX NUT 5/16-18 MTD-712-3010
...
30
Nut, Hex Lock, 1/2-13 MTD-712-3022
...
31
Nut, Hex Lock, 1/2-13 MTD-712-3083
...
32
Pin, Cotter, 3/32 x 1.00 MTD-714-0111
...
33
Pin, Cotter, 1/8 x 1.25 MTD-714-0470
...
34
Gear, Deck Adjustment MTD-917-04074
...
35
WATER NOZZLE MTD-921-04041
...
36
Front Roller MTD-731-3005
...
37
Compression Spring MTD-932-0306A
...
38
Spring, Ext.,.850 Dia. x 6.415 MTD-732-04247
...
39
Spring, Ext., 1.15 Dia. x 5.99 MTD-732-0934
...
40
Deck Wheel MTD-734-04155
...
41
Lock Wash. 5/16" I.D. MTD-936-0119
...
42
Washer, Lock 5/8 Int. Tooth MTD-736-0225
...
43
Deck Water Nozzle MTD-737-04003D
...
44
Washer, Flat,.406 x.875 x.059 MTD-736-0300
...
45
Washer, Lock, 1/2 MTD-736-0921
...
48
Screw,.625 x 2.50 x 1/2-13 MTD-738-1229A
...
49
Shoulder Bolt MTD-938-3056
...
50
Blades MTD-942-0677B
...
51
DECK UPSTOP ROD MTD-747-04384
...
52
Rod, Deck Release Handle MTD-747-1116
...
53
Rod, Deck Adjust MTD-747-1324
...
54
Spacer .550 ID x .750 OD MTD-950-0151
...
55
V-Belt Type A Sec x 138.0 MTD-954-0642
...
56
Pulley Kit, Idler, 4.25"Dia MTD-753-08171
...
58
LIFT BRACKET 50" DECK MTD-783-04462A
...
59
Deck Skirt MTD-783-04690B
...
60
Cover, Belt, RH MTD-783-04691
...
61
Cover, Belt, LH MTD-783-04692
...
62
Bracket, Stabilizer, Pulley MTD-783-04013A
...
63
Chute Assembly MTD-631-04070C
...
64
Chute Mounting Bracket MTD-783-05030
...
65
Torsion Spring MTD-732-04372
...
66
Chute Assembly MTD-631-04070C
...
67
Hinge Pin MTD-711-04565
...
68
Bracket, Idler, Stationary MTD-783-04726
