Huskee 13AP625K730 (2007) Lawn Tractor

Model: 13AP625K730 (2007)

Back To Assemblies

Save Part Not Listed?
product name

Engine Accessories

...
...
1
AB Screw #8-18 x 0.5 MTD-710-0227
...
2
TT Screw 1/4-20 x 0.5 MTD-710-0599
...
3
TT Screw 3/8-16 x 1.00 MTD-710-0654A
...
4
AB Screw 5/16-12 x 0.5 MTD-710-0726
...
5
Screw, 5/16-18 x .750 MTD-710-1314A
...
6
Flange Lock Nut, 3/8-16 MTD-712-3005
...
7
Cable Tie MTD-725-0157
...
8
Hose Clamp MTD-726-0205
...
9
Flat Washer, .406 x .875 x .059 MTD-736-0300
...
10
Muffler Deflector MTD-751-0564B
...
11
LH Exhaust Pipe MTD-751-0644B
...
12
EXHAUST PIPE (RH) MTD-751-0645A
...
13
MUFFLER (KOHLER TWIN) MTD-951-0805A
...
14
Fuel Line Hose MTD-751-10349
...
15
Oil Drain Hose MTD-751-3141-14
...
16
Oil Drain Valve MTD-951-10517A
...
17
Muffler Heat Shield MTD-783-0615E-0637

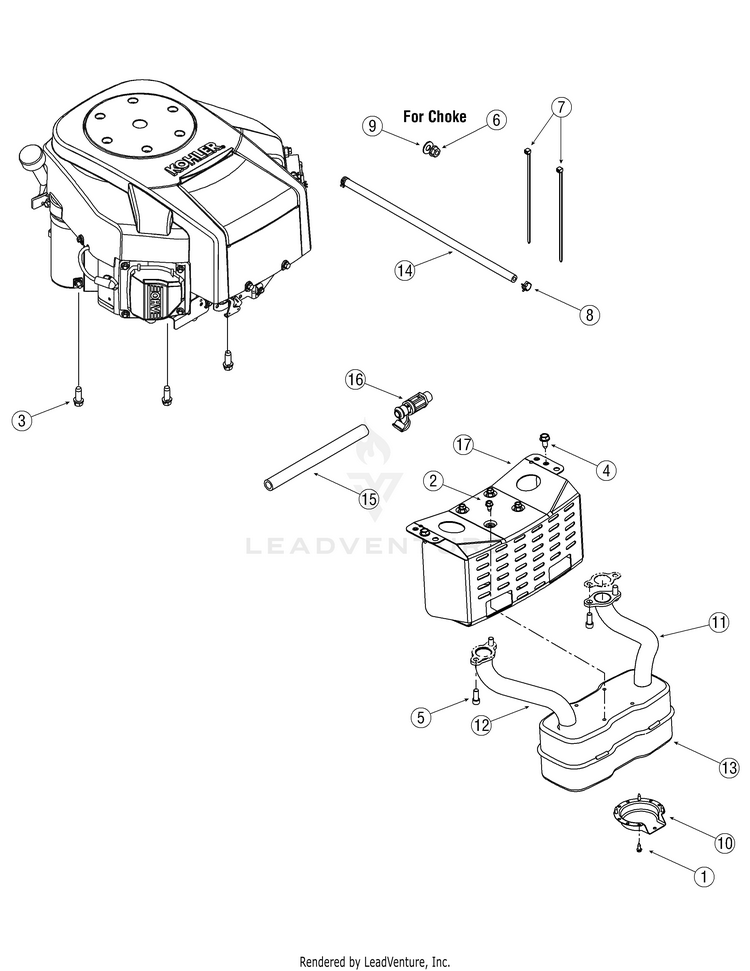

Schematic Image Zoomed
