Huskee 13AP625K730 (2007) Lawn Tractor

Model: 13AP625K730 (2007)

Back To Assemblies

Save Part Not Listed?
product name

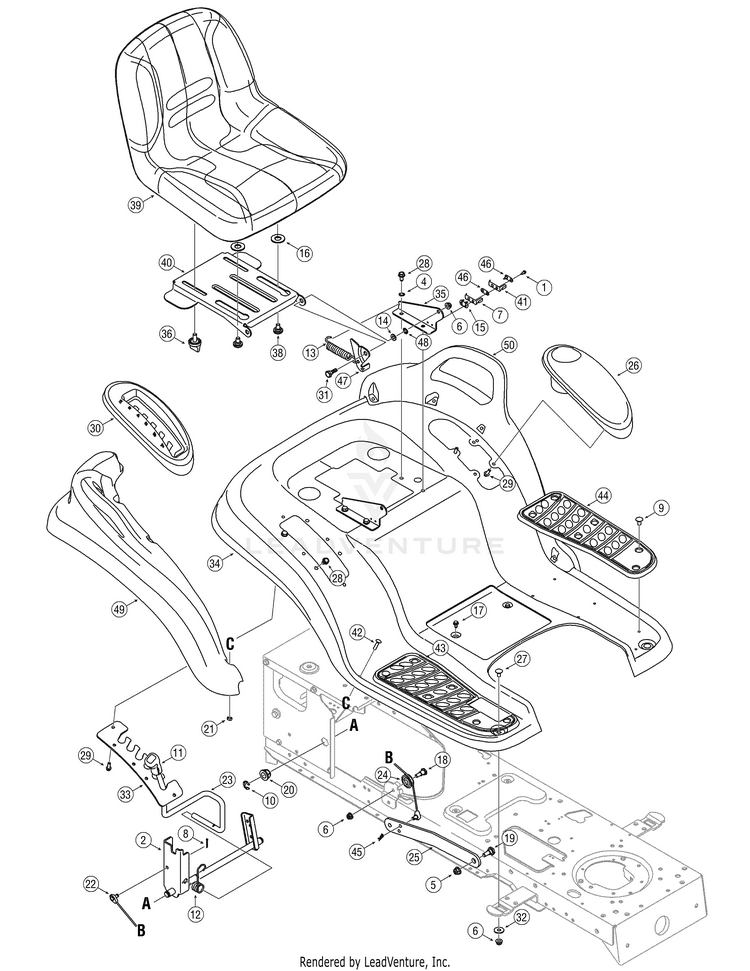

Seat & Deck Lift

...
...
1
Screw, #8-18 x.500 MTD-710-0227
...
2
LIFT SHAFT ASSEMBLY MTD-683-04301-0637
...
3
Washer, Flat, .344 x .62 x .033 MTD-736-0204
...
4
Lock Washer, 5/16 MTD-736-0607
...
5
Flange Lock Nut, 3/8-16 MTD-712-04065
...
6
Flange Lock Nut, 5/16-18 MTD-712-04063
...
7
Inner Seat Spring Switch MTD-725-1439
...
8
Hairpin Clip MTD-714-0104
...
9
Foot Pad Clips MTD-726-3046
...
10
E-Ring MTD-716-0106A
...
11
Handle Grip MTD-720-0311
...
12
Torsion Spring MTD-732-0874
...
13
Extension Spring,.84 x 4.6 MTD-732-1184
...
14
Flat Washer MTD-736-0242
...
15
Insulator Boss Plate MTD-726-0278
...
16
Flat Washer, .406 x .875 x .059 MTD-736-0300
...
17
Screw, 1/4-20 x.500 MTD-710-0599
...
18
Hex Cap Screw, 5/16-18 x.62 MTD-738-0138A
...
19
Shoulder Screw, 3/8-16 MTD-738-0380
...
20
FLANGE BEARING MTD-941-0225
...
21
Sems Nut 1/4-20 MTD-712-0271
...
22
Lift Cable, 16.16 MTD-746-0968
...
23
Lift Handle MTD-747-04447
...
24
Roller Pulley MTD-756-1154
...
25
DECK LIFT LINK MTD-783-0678C
...
26
COVER-W/CUP HOLDER MTD-731-1993A
...
27
Carriage Bolt, 5/16-18 x.750 MTD-710-0451
...
28
Self-tapping Screw, 5/16-18 x.625 MTD-710-0604A
...
29
Self-tapping Screw, 1/4-15 x.75 MTD-710-0895
...
30
Lift Lever Cover MTD-731-06795
...
31
Shoulder Screw,.437 x.286 MTD-738-0296
...
32
Flat Washer,.349 x 1.0 x.063 MTD-736-3078
...
33
LIFT ADJUSTMENT BRACKET MTD-783-0677B
...
34
FENDER-HYDRO MTD-783-04459A
...
35
Seat Mounting Bracket MTD-783-1489C
...
36
Knob, 3/8-16 x .875 MTD-720-04061
...
37
Flange Lock Nut, 1/4-20 MTD-712-04064
...
38
SHOULDER SCREW.625 x .110:3/8-16 MTD-738-04012C
...
39
HIGH BACK SEAT MTD-757-04003A
...
40
Seat Pivot Bracket MTD-783-04081B
...
41
Outer Seat Spring Switch MTD-925-1303
...
42
SCREW 1/4-20 x 1 GR5 MTD-710-0932A
...
43
FOOT PAD (RH) MTD-735-0656
...
44
FOOT PAD (LH) MTD-735-0657
...
45
Cotter Pin MTD-714-0111
...
46
Insulator Plate MTD-726-0279
...
47
Seat Lift Bracket MTD-783-0209D
...
48
Speed Clip MTD-726-0201
...
49
FENDER FLARE (RH) MTD-731-2618
...
50
FENDER FLARE (LH) MTD-731-2619
