Huskee 13AM660F131 (2002) Lawn Tractor

Model: 13AM660F131 (2002)

Back To Assemblies

Save Part Not Listed?
product name

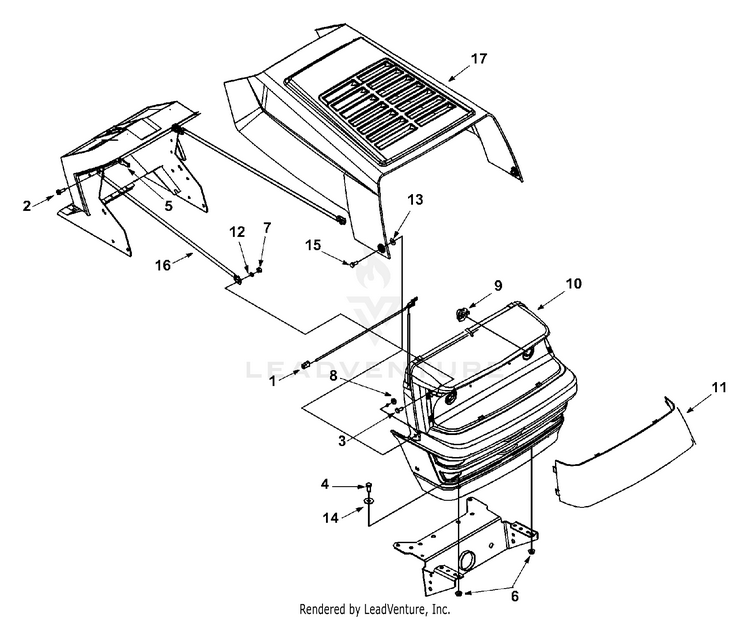

Hood Style 0

...
...
1
HEADLIGHT HARNESS MTD-929-0469B
...
2
Hex TT-Tap Scr. 1/4-20 x .75" Lg. MTD-710-0642
...
3
SCREW 1/4-20 x .620 GR5 MTD-710-0751
...
4
SCREW 5/16-18 x .75 GR5 MTD-710-3008
...
5
SPEED NUT 1/4-20 MTD-712-0185
...
6
HEX FLANGE NUT MTD-712-3004A
...
7
HEX NUT MTD-712-3006
...
8
LOCK NUT 1/4 MTD-912-3027
...
9
HEADLIGHT SOCKET (1/4 TURN) MTD-925-1649A
...
xx
Miniature Lamp 12V Socket Type (Not Shown) MTD-925-0963
...
10
GRILLE-10 STYLE MTD-931-1097G
...
11
Lens MTD-931-1099A
...
12
L-Wash. 1/4" I.D. MTD-936-0329
...
13
Fl-Wash. .293" I.D. x .75" O.D. MTD-736-0342
...
14
Fl-Wash. .349" I.D. x .063" O.D. MTD-736-3078
...
15
Shoulder Bolt, .375 x .125 MTD-938-0952A
...
16
Grille Support MTD-749-0812
...
17
HOOD-STY O W/LOUVERS MTD-783-0250
