Huskee 13AL606G730 (2005) Lawn Tractor

Model: 13AL606G730 (2005)

Back To Assemblies

Save Part Not Listed?
product name

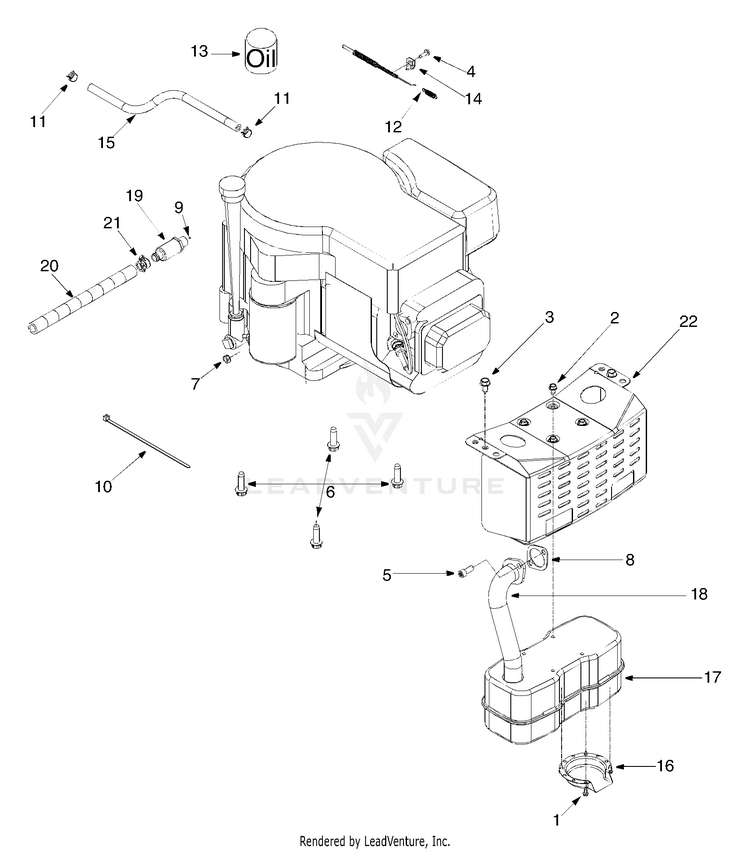

Engine Accessories

...
...
1
AB Screw #8-18 x 0.5 MTD-710-0227
...
2
TT Screw 1/4-20 x 0.5 MTD-710-0599
...
3
AB Screw 5/16-12 x 0.5 MTD-710-0726
...
4
T screw #10-32 x 0.625 MTD-710-1237
...
5
Socket Hd Scr. 5/16-18 x.750 MTD-710-1314A
...
6
TT Screw 3/8-16 x 1.25 MTD-710-1315
...
7
Sems Nut MTD-712-0271
...
8
Gasket-Exhaust MTD-BS-692236
...
9
Sealant: Loctite(TM) MTD-721-0331
...
10
Cable Tie MTD-725-0157
...
11
Hose Clamp MTD-726-0205
...
12
EXTENSION SPRING MTD-732-0966
...
13
SAE 30W Oil MTD-737-0169
...
14
Cable Clamp (B&S) MTD-BS-690798
...
15
Fuel Line Hose MTD-751-0535
...
16
Muffler Deflector MTD-751-0564B
...
17
Single Inlet Muffler MTD-951-0617C
...
18
EXHAUST PIPE MTD-751-0619B
...
19
Oil Drain Valve MTD-951-10517A
...
20
Oil Drain Hose MTD-751-3141-14
...
21
Oil Drain Cap MTD-751-3142
...
22
Muffler Heat Shield MTD-783-0615E-0637
