Huskee 13AJ795G730 (2006) Lawn Tractor

Model: 13AJ795G730 (2006)

Back To Assemblies

Save Part Not Listed?
product name

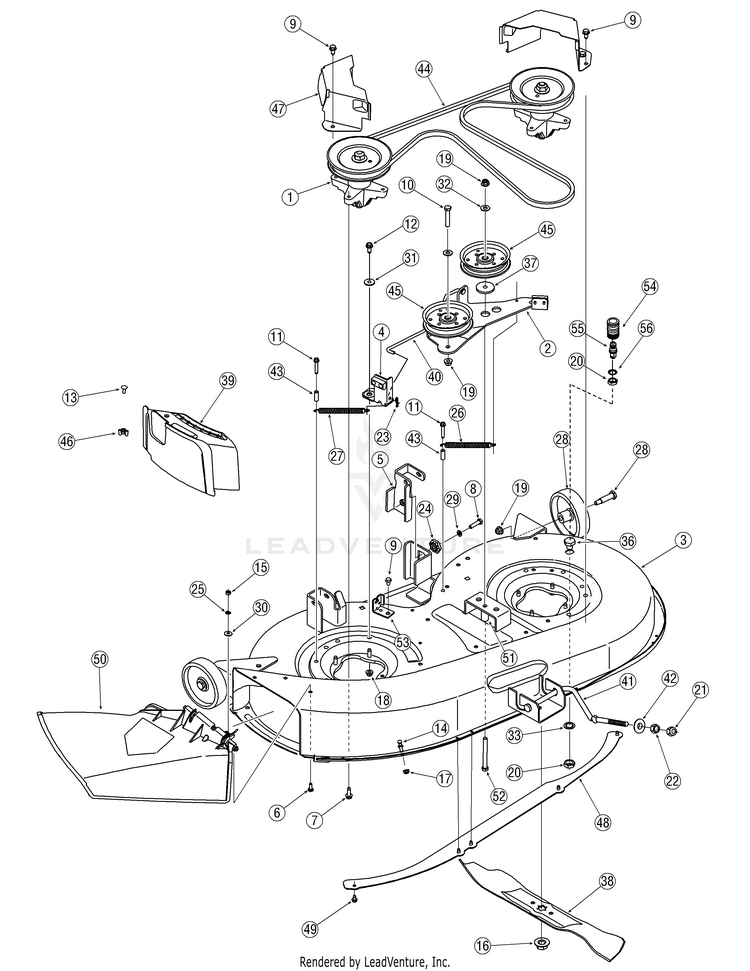

Deck Assembly

...
...
1
PULLEY & SPINDLE ASSEMBLY 6.3" W/O FTG MTD-918-0624B
...
1
HEX NUT Not shown MTD-712-0417A
...
1
Spindle Shaft:5.75 LG. Not shown MTD-738-1010A
...
1
BALL BEARING Not shown MTD-741P0919B
...
1
Spacer: .820 X 1.150 X .730 LG Not shown MTD-748-0433
...
1
Bearing Spacers: .80 x 1.10 x 1.322 Not shown MTD-750-1000
...
1
Pulley:6.3 Dia Not shown MTD-956-1227
...
2
42" DECK BRAKE ASSEMBLY MTD-683P04138C
...
3
Deck Shell, 42" (w/ Wheel Brackets) MTD-983-04162A
...
3
Deck Shell, 42" (w/o Wheel Brackets) MTD-983-04165A
...
4
Brake Assembly, Deck MTD-983-04167
...
5
Bracket Assembly, Deck, Hanger LH MTD-683-04228
...
6
Screw, 1/4-20, .750, Gr5 MTD-710-3015
...
7
Screw, 5/16-18, 0.875 MTD-710-0650
...
8
Screw, 5/16-18, 1.250 MTD-710-0528
...
9
Screw, 5/16-18, 0.625 MTD-710-0604A
...
10
Screw, 3/8-16, 1.75, Gr5 MTD-710-0347
...
11
Screw, 1/4-20, 1.500 MTD-710-0778
...
12
SCREW 5/16-18 x .75 GR5 MTD-710-3008
...
13
Carriage Screw, , 1/4-20 x .62 MTD-710-0134
...
14
Pin, Grasscatcher, 1/4-20 MTD-911-04069
...
15
HEX NUT MTD-712-3006
...
16
HEX NUT MTD-712-0417A
...
17
Nut, Flange Lock, 1/4-20, GrF, Nylon MTD-712-04064
...
18
Nut, Flange Lock, 5/16-18, GrF, Nylon MTD-712-04063
...
19
Nut, Flange Lock, 3/8-16, GrF, Nylon MTD-712-04065
...
20
Nut, Hex, M16-1.5 MTD-712-0641
...
21
Nut, Hex Lock, 1/2-13, Gr8, Nylon MTD-712-3083
...
22
HEX NUT MTD-712-0206
...
23
Pin, Cot, .072 Dia. x 1.13 MTD-714-0104
...
24
Gear, Deck Adjustment MTD-917-04074
...
25
Nut, Push, .25 ID x .50 OD MTD-726-0233
...
26
Spring, Extension, .75 Dia. x 6.375 MTD-732-04280B
...
27
Spring, Extension, .50 Dia. x 6.375 MTD-732-04287
...
28
DECK WHEEL (5.0 DIA X 1.38) MTD-734-06265
...
29
Lock Wash. 5/16" I.D. MTD-936-0119
...
30
SPRING WASHER BELL MTD-736-0270
...
31
Shoulder Spacer .884 x .190 MTD-738-04162C
...
32
FLAT WASHER .38X.88 MTD-736-0267
...
33
Washer, Lock, 5/8, Internal Tooth MTD-736-0225
...
34
Washer, Flat, .64 x 1.24 x .06 MTD-736-0187
...
35
Shld. Bolt .498" Dia. x 1.53" MTD-938-0373
...
36
Plug, Screw, M16 x 1.5 MTD-738-04146
...
37
Shoulder Spacer .884 x .190 MTD-738-04162C
...
38
Blade, 21.23", Star 3-in-1 MTD-942-0616A
...
39
Mulch Plug MTD-731-2363
...
40
Control Rod, Brake MTD-747-04379A
...
41
Deck Rod, Front Adjustable MTD-747-04269A
...
42
LIFT PIVOT CUP MTD-748-04069A
...
43
Spacer, .260 x .372 x 1.030 MTD-750-0566A
...
44
V-Belt MTD-954-04060C
...
45
Pulley Kit, Idler, 4.25"Dia MTD-753-08171
...
46
WING NUT 1/4-20 MTD-712-3087
...
47
Belt Covers 6.0 dia. MTD-783-04327B
...
48
Deck Skirt MTD-753-0884
...
49
Screw, 1/4-20, .500 MTD-710-0599
...
50
CHUTE ASSEMBLY MTD-631-05229
...
51
Spacer, 1.46" MTD-750-04446
...
52
Screw, 3/8-16, 3.50, Gr5 MTD-710-3085
...
53
Deck Engage Cable Bracket MTD-783-04740
...
54
WATER NOZZLE MTD-921-04041
...
55
Deck Water Nozzle MTD-737-04003D
...
56
Lock Washer (Optional) MTD-736-0760
