Huskee 13AI609H131 (1999) Lawn Tractor

Model: 13AI609H131 (1999)

Back To Assemblies

Save Part Not Listed?
product name

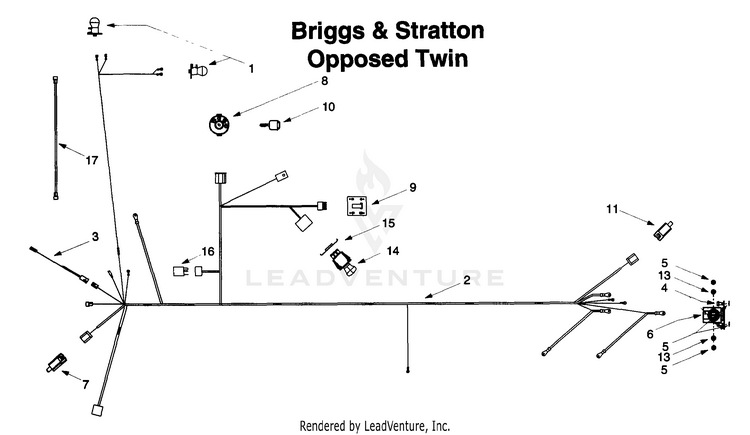

Electrical Briggs & Stratton Opposed Twin

...
...
1
Headlight Assembly MTD-925-0051
...
xx
Headlight Assembly MTD-925-0051
...
xx
HEADLIGHT SOCKET (1/4 TURN) MTD-925-1649A
...
2
HARNESS KIT AUTO DRIVE MTD-753-0870
...
3
HARNESS ADAPTER MTD-629-0126
...
4
Self Tapping Screw, 1/4-20 x .5 MTD-710-0599
...
5
HEX NUT MTD-712-3006
...
6
Solenoid MTD-925-1426A
...
7
Safety Switch MTD-925-1657A
...
8
Ignition Switch MTD-925-1741
...
9
KIT-INDICATOR MTD-725-1742
...
xx
KIT-INDICATOR MTD-725-1743
...
10
Key MTD-925-1745A
...
xx
Key MTD-925-1745A
...
11
SEAT SWITCH MTD-925-1747
...
?12
External Lock Washer, 1/4 MTD-736-0222
...
13
L-Wash. 1/4" I.D. MTD-936-0329
...
14
PTO SWITCH (BLACK KNOB) TEXT SYM MTD-925-04174A
...
15
RETAINER SWITCH MTD-783-0462
...
16
RELAY MTD-925-1648A
...
17
Harness Adapter, 10" (B&S Opposed Twin Only) MTD-629-0921
