Huskee 13AI609H131 (1999) Lawn Tractor

Model: 13AI609H131 (1999)

Back To Assemblies

Save Part Not Listed?
product name

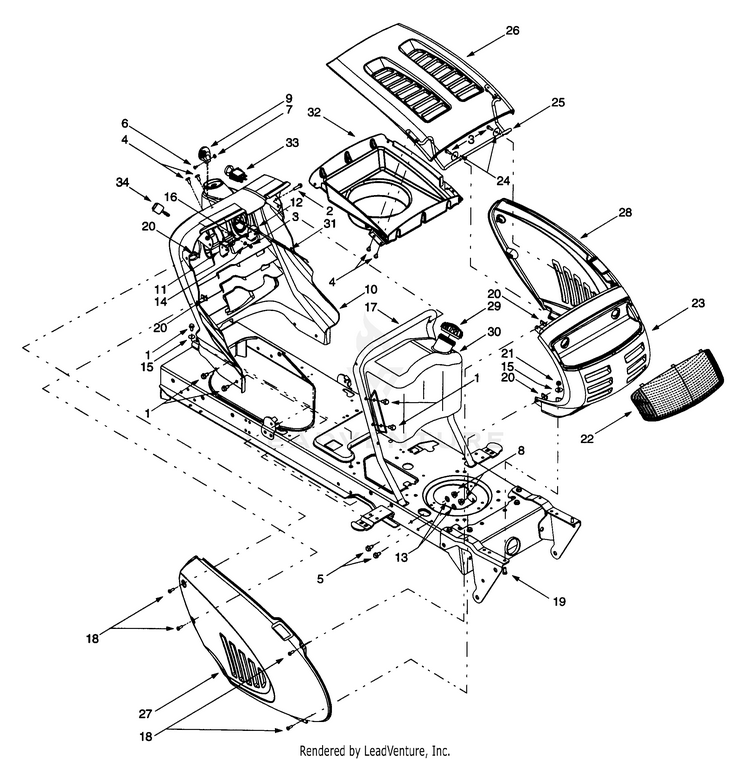

Hood Style 9

...
...
1
Self Tapping Screw, 5/16-18 x .625 MTD-710-0604A
...
2
Self Tapping Screw, 1/4-20 x 1.0 MTD-710-0788
...
3
Self Tapping Screw, 1/4-15 x .75 MTD-710-0895
...
4
Torx Self Tapping Screw, 5/16-18 x .625 MTD-710-1017
...
5
SCREW 5/16-18 x .875 GR5 HXFLG HD MTD-710-1238A
...
6
Torx Screw, #8-32 x .375 MTD-710-3217
...
7
Hex Nut, 8-32 MTD-712-0142
...
8
HEX NUT 5/16-18 MTD-712-3010
...
9
Throttle Control Lever MTD-731-1857
...
10
DASH PANEL W/NET MTD-631-04038
...
11
Cruise Control Button (If so equipped) MTD-731-2226
...
xx
CRUISE COVER (Units w/o cruise control) MTD-731-2228
...
12
DASH BRAKE LEVER MTD-731-2227
...
13
Lock Wash. 5/16" I.D. MTD-936-0119
...
14
Flat Washer, .281 x .5 x .063 MTD-736-0142
...
15
Flat Washer, .349 x 1.0 x .063 MTD-736-3078
...
16
BRAKE/CRUISE PIVOT ROD MTD-747-1155
...
17
DASH SUPPORT TUBE MTD-749-1087A-0637
...
18
Pan Phillips Screw, 1/4-20 x .75 MTD-710-0924
...
19
SCREW 5/16-18 x .75 GR5 MTD-710-3008
...
20
U-type Speed Nut, 1/4-20 MTD-712-0292
...
21
HEX FLANGE NUT MTD-712-3004A
...
22
LENS-9 STYLE MTD-731-2118A
...
23
GRILLE MTD-731P2119A
...
24
Flat Washer, .285 x 1.25 x .08 MTD-736-0211
...
25
HINGE ROD MTD-747-1162
...
26
HOOD:3 STYLE MTD-783-0783A
...
27
Side Panel, RH MTD-783-0784A
...
28
SIDE PANEL (LH) 9 STYLE MTD-783-0785
...
29
TANK CAP (For two gallon tank) MTD-751-0603B
...
xx
FUEL CAP (For three gallon tank) MTD-751-0649
...
30
Fuel Tank 2 Gal. MTD-751-0659D
...
xx
FUEL TANK MTD-751-0658
...
31
Choke Cable 39" Lg. MTD-946-1085A
...
32
HOOD BELLOW (Units w/ B&S OHV Single) MTD-731-2269
...
xx
HOOD BELLOW (Units w/ B&S OHV V-Twin) MTD-731-2270A
...
xx
HOOD PLENUM (Units w/ B&S Opposed Twin) MTD-731-2271
...
33
PTO SWITCH (BLACK KNOB) TEXT SYM MTD-925-04174A
...
34
Key MTD-925-1745A
...
xx
Key MTD-925-1745A
