Huskee 13AI609H131 (1999) Lawn Tractor

Model: 13AI609H131 (1999)

Back To Assemblies


product name

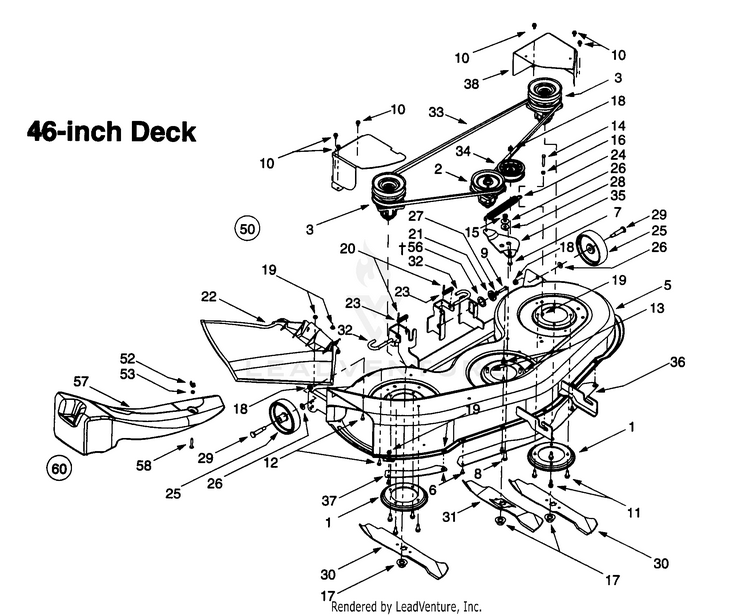

Deck Assembly H 46 Inch

...
...
1
PLATE-SPINDLE MTD-17982-0637

...
2
Spindle Assembly, 5.00 Dia. MTD-918-0240C

...
xx

...
3
Double Pulley Spindle Assembly MTD-918-0241B

...
xx
Double Pulley Only MTD-756-0603

...
5
46" DECK ASSEMBLY MTD-683-0265A

...
xx
Bracket Assembly, Deck, Hanger LH MTD-683-0254B

...
6
CARRIAGE BOLT 1/4-20X.50" MTD-710-05177

...
7
Hex Cap Screw, 3/8-16 x 1.75 MTD-710-0347

...
8
Hex Cap Screw, 3/8-16 x 1.0 MTD-710-0514

...
9
Hex Cap Screw, 5/16-18 x 1.25 MTD-710-0528

...
10
Self Tapping Screw,1/4-20 x .5 MTD-710-0599

...
11
Self Tapping Screw, 5/16-18 x .875 MTD-710-0650

...
12
SCREW 1/4-20 x .620 GR5 MTD-710-0751

...
13
Self Tapping Screw, 5/16-18 x .75 MTD-710-1260A

...
14
Hex Cap Screw, 1/4-20 x 1.62 MTD-712-3288

...
15
Hex Nut, 3/8-24 MTD-712-0241

...
16
Center Lock Nut, 1/4-20 MTD-712-0291

...
17

...
18
Flange Lock Nut 3/8-16 MTD-912-0431

...
19
LOCK NUT 1/4 MTD-912-3027

...
20
Internal Cotter Pin, .072 x 1.12 MTD-714-0104

...
21
Gear, Deck Adjustment MTD-917-04074

...
22
CHUTE ASSEMBLY MTD-631-05229

...
23
Compression Spring MTD-932-0306A

...
24
Extension Spring 6.17" Lg. MTD-932-0594A

...
25
DECK WHEEL (5.0 DIA X 1.38) MTD-734-06265

...
26
Bell Washer, .401 x .87 x .063 MTD-736-0105

...
27
Lock Wash. 5/16" I.D. MTD-936-0119

...
28
Shld. Spacer .625" I.D. MTD-938-0347

...
29
Shld. Bolt .498" Dia. x 1.53" MTD-938-0373

...
30
46" BLADE (STAR) MTD-742-0611A-0637

...
31
14.88" BLADE (MULCH) (STAR) MTD-742-0612A-0637

...
32
Deck Release Pin MTD-747-1116

...
33

...
34
Fl-Idler Pulley 3.5" O.D. MTD-756-0627D

...
35
IDLER BRACKET MTD-783-0139B-0637

...
36
Center Deck Skirt MTD-783-0141

...
37
Skirt-Right Hand MTD-783-0142-0637

...
38
Cover, Deck Belt RH MTD-783-0747B-0637

...
50
DECK ASSEMBLY KIT (W/o mulch kit) MTD-753-0852

...
52
WING NUT 1/4-20 MTD-712-3087

...
53
Center Lock Nut, 1/4-20 MTD-712-0291

...
56
Flat Washer, 1.03 x 1.62 x .030 Found only on early-production tractor decks. Discard washer and do NOT replace if replacing adjustment gear (717-1553A) for any reason. MTD-736-0163

...
57
Mulch Plug, 46-inch Decks (If so equipped) MTD-731-1636

...
58
Hex Cap Screw, 1/4-20 x 1.5 MTD-710-0578

...
60
46"DECK MULCH KIT (If so equipped). Includes Ref. 30, 31, 52, 53, 57 & 58 MTD-OEM-190-118
